laservision laser safety Roll-Up Set

Roll-Up Set

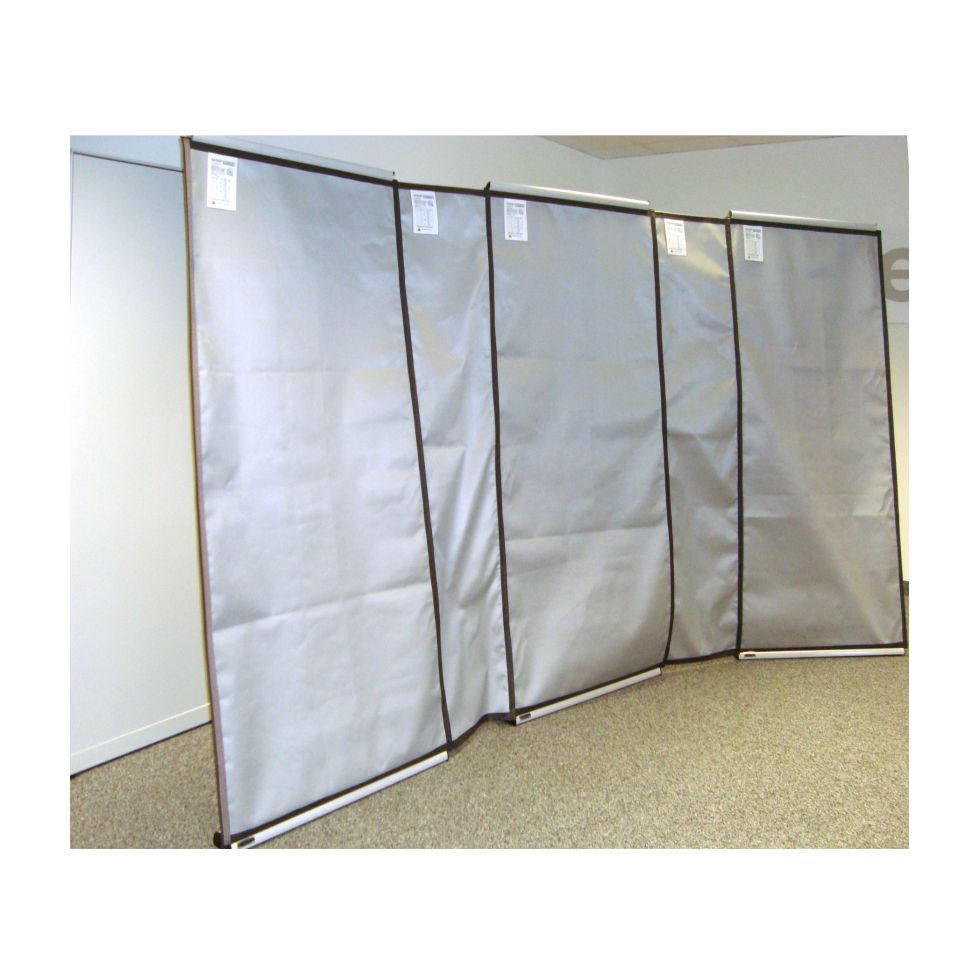

The roll-up set is characterized by an easy and quick to set up stand and consists of 3x roll-up (BC3.F1P01.1RU1) and 2x the roll-up connector (BC3.F1P01.1274) which is delivered together in a large bag. It is covered with the single layer laser protection curtain SHELTER-Light. Velcro straps are provided on the edges to connect several systems. The curtain is certified according to EN 12254.

  • VBP999307
  • GTIN: 4050369047822
  • 1 pieces
  • 15.50 kg
  • 14.00 kg
The Roll-Up Set is the perfect service tool. It consists of 3x Roll-Up (BC3F1P011RU1) and 2x...more

The Roll-Up Set is the perfect service tool. It consists of 3x Roll-Up (BC3F1P011RU1) and 2x Roll-Up connector (BC3F1P011274) which is delivered together in a large bag. The set offers a maximum width of approximately 3,450 mm in linear setup.

The display with the single-layer laser protection material is based on the silicate fabric F1P01 and is characterized by the following points:

  • Size: 900 x 2.000mm (per roll-up segment)
  • Connection by means of Velcro/fluff tape (Only BC3.F1P01.1RU1 in combination with BC3.F1P01.1274)
  • Laser preferred direction (single-sided use)
  • Ideal for low to medium laser powers
  • Lightweight frame and carrying case


The instruction manual for this product can be found here.

Protection range

Protection in the infrared spectral range above 1400nm

near infrared
near infrared

Protection within the near infrared spectral range between 700nm and 1400nm


Protection within the ultraviolet spectral range between 180 and 400nm


Protection within the visible spectral range between 400 and 700nm

Colour: silver grey
Properties: Lightweight
single-sided usable
Protection range: Infrared
near infrared
Protection Class / Norm: EN 12254
wavelength (nm) OD Operating mode  / Tested protection level
180 - 315 (OD5+) 180-315 D AB5 + IR AB3 + M AB5Y
>315 - 1050 (OD5+) >315-1050 DIRM AB5
>1050 - 1400 (OD5+) >1050-1400 DIRM AB5
>1400 - 20000 (OD3+) >1400-20000 DI AB3 + R AB3Y + M AB4
