laser safety spectacle R01T1C02
The laser safety eyewear R01.T1C02.1001 provides very high protection ratings within the NIR spectral range (750-1200nm). The full protection spectacle with coated filters can be combined with an Rx-insert. The small, reinforced goggle with adjustable temples and turquoise colored filters is characterized with a light weight and a good field of view. The shipment includes a spectacle cord and a metal box, which can also be used as its storage box.
- Order number: R01T1C021001
- GTIN: 4050369017634
- Pack unit: 1 pieces
- Weight incl. packaging: 0.45 kg
- Weight excl. packaging 0.11 kg
Protection range
Coated filter
The filter has a reflective coating for certain wavelength.
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
| Coating: |
Interference Coating (PVD)
|
| Filter curvature: |
Flat filter
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
Spectacle with Rx insert option
|
| Properties: |
Adjustable temples
M-protection rating Neutral glass lamination |
| Frame: |
R01
|

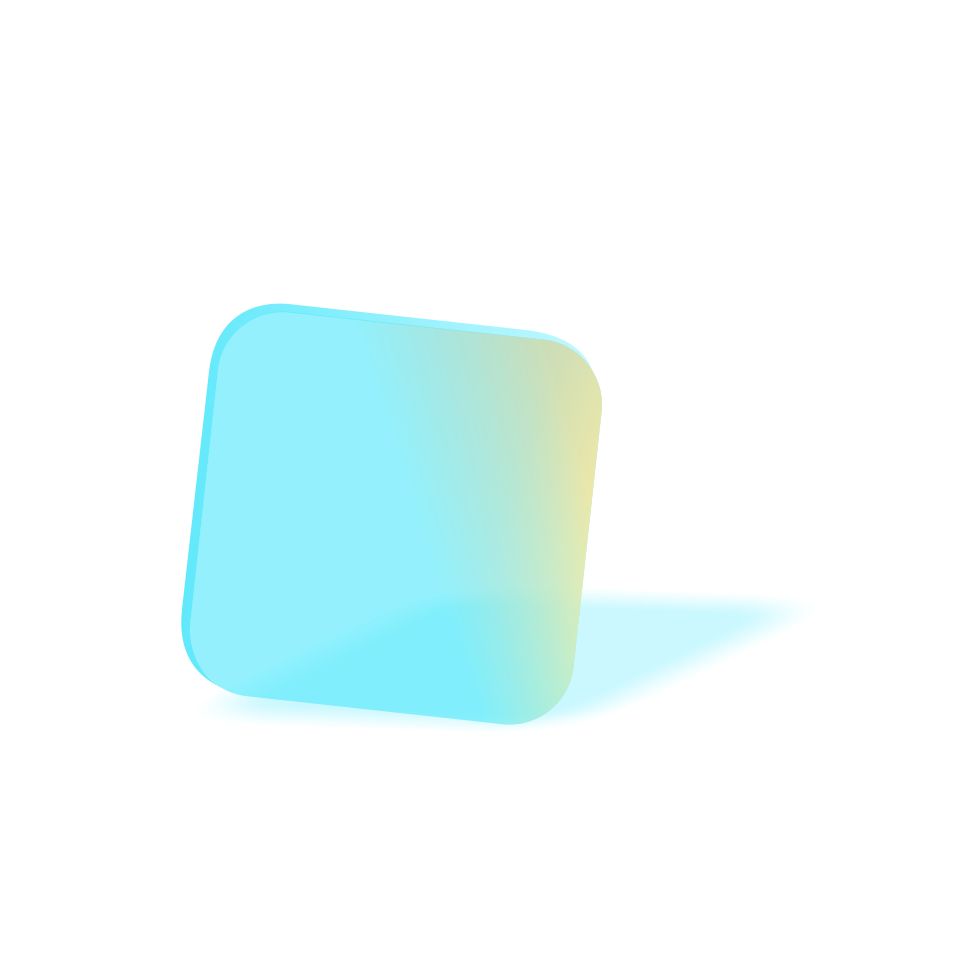

| Filter: |
T1C02
|
| Filter colour: |
Turquoise
|
| colour recognition: |
Excellent
|
| Filter thickness: |
ca. 5mm
|
| Filter material: |
Coated glass
|
| Filter technology: |
Absorption filter
Reflection filter |
| Protection range: |
Coated filter
near infrared |
| Visual brightness: |
Good
|
| VLT (approx.): |
50%
|
| wavelength (nm) | OD | Operating mode / Tested protection level |
| 630 - <660 | (OD1+) | DIRM LB1 |
| 660 - <680 | (OD2+) | DIRM LB2 |
| 680 - <700 | (OD3+) | DIRM LB3 |
| 700 - <710 | (OD4+) | DIRM LB4 |
| 710 - <720 | (OD5+) | DIRM LB5 |
| 720 - <730 | (OD6+) | DIRM LB6 |
| 730 - <740 | (OD7+) | DIRM LB7 |
| 740 - <760 | (OD8+) | D LB7 + IRM LB8 |
| 760 - <960 | (OD10+) | D LB7 + IR LB8 + M LB9Y |
| 960 - <1025 | (OD10+) | DIR LB8 + M LB9Y |
| 1025 - 1100 | (OD10+) | D LB8 + IR LB9 + M LB9Y |
| >1100 - 1200 | (OD8+) | D LB7 + IRM LB8 |
| >1200 - 1220 | (OD6+) | DIRM LB6 |
| >1220 - 1260 | (OD5+) | DIRM LB5 |
| >1260 - 1310 | (OD4+) | DIRM LB4 |
| >1310 - 1350 | (OD3+) | DIRM LB3 |
| >1350 - 1400 | (OD2+) | DIRM LB2 |
