laser safety magnifier F27P1E01 340mm
The laservision laser safety loupes F27.P1E01.1231 ith standard brackets is certified for the UV and visible wavelength range from 180 to 540 according to EN 207 (full protection). This filter is particularly suitable for UV and Nd: YAG lasers and has a good subjective brightness. The laser protection loupes are primarily used in the dental field. The orange-colored P1E01 filter in the shield and on the magnifying glass used here has a good visual brightness and a VLT of about 40%. The delivery takes place in a handy case with padding to store the laser safety loupes carefully. The case contains a professional cleaning fluid and a cord for hanging the glasses as standard.
- Order number: F27P1E011241
- GTIN: 4050369044203
- Pack unit: 1 pieces
- Weight incl. packaging: 0.59 kg
- Weight excl. packaging 0.10 kg
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Filter curvature: |
Flat filter
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
OTG with temples
|
| Properties: |
Lightweight
|
| Frame: |
F27
|

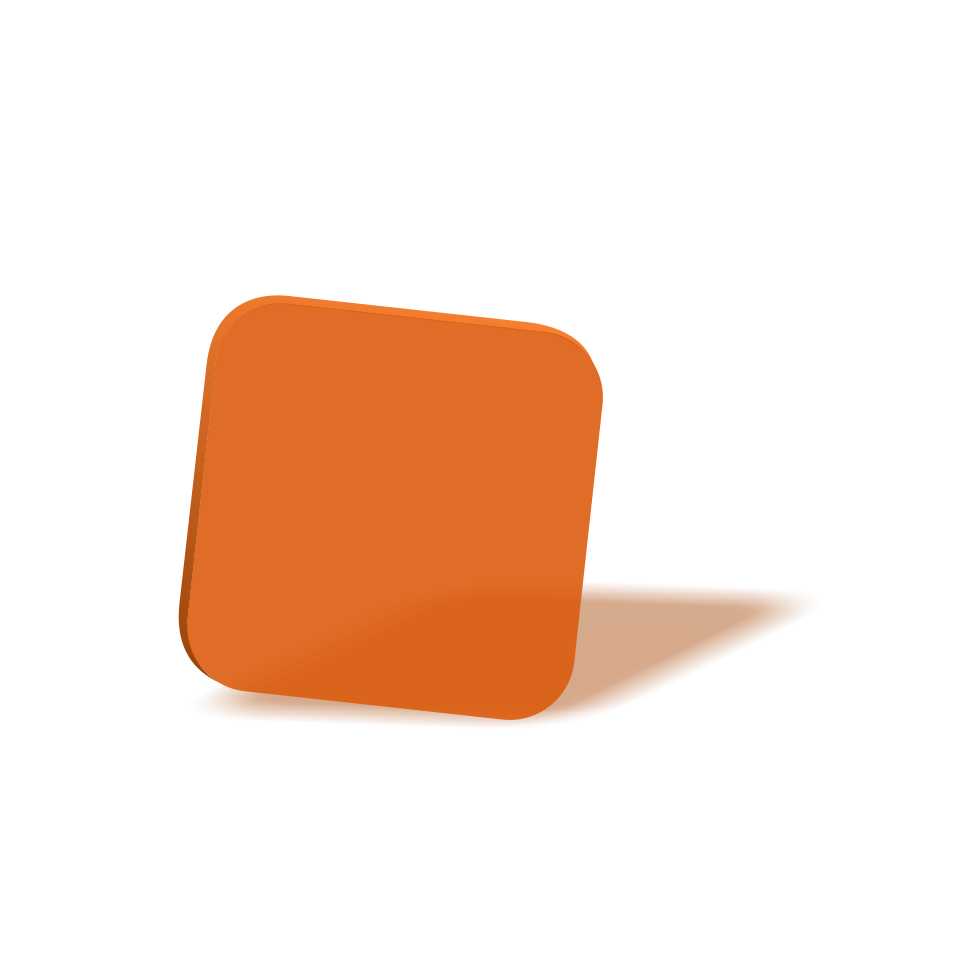

| Filter: |
P1E01
|
| Filter colour: |
Orange
|

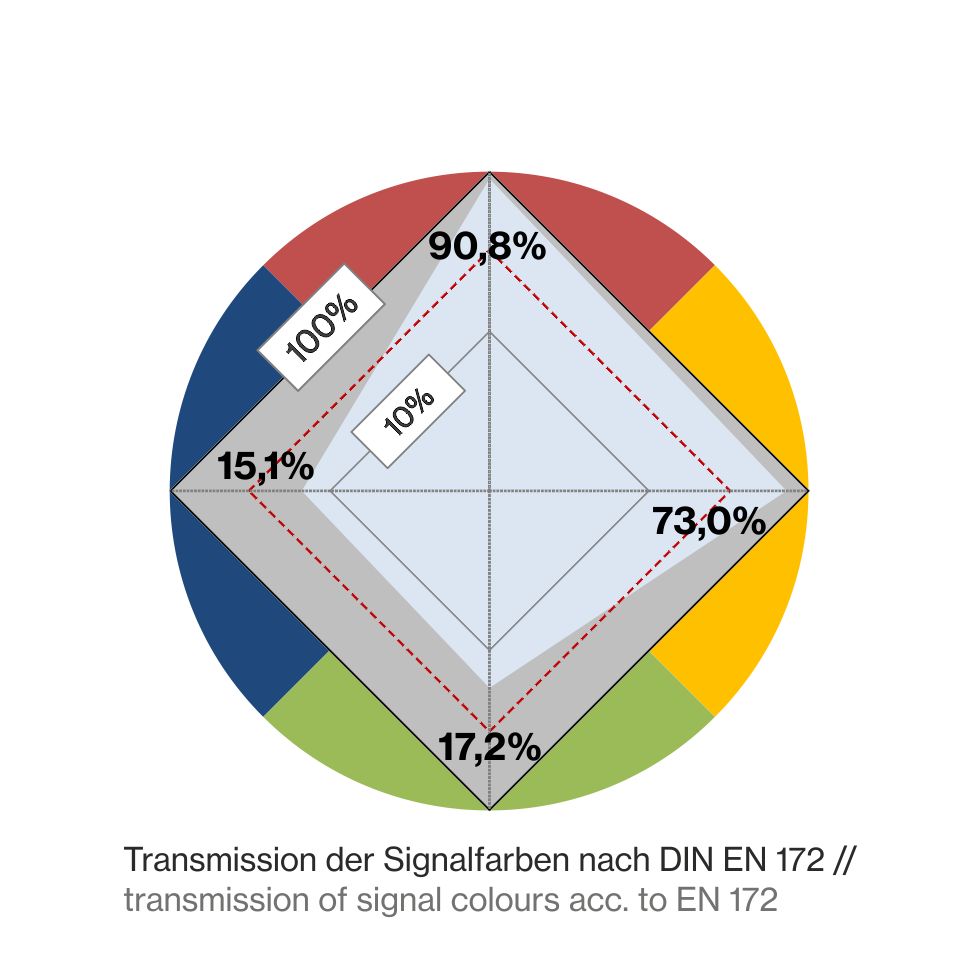

| colour recognition: |
Limited
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
ultraviolett
visible |
| Visual brightness: |
Good
|
| VLT (approx.): |
40%
|

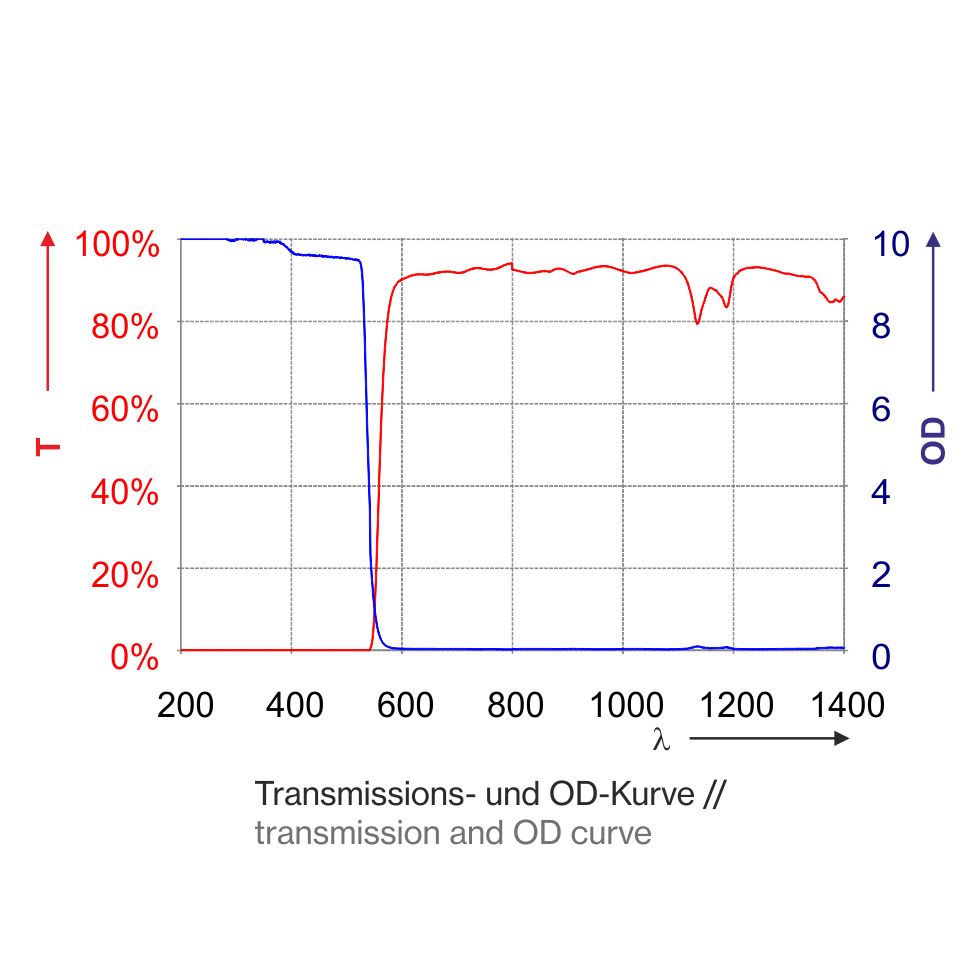

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 532 | (OD8+) | D LB6 + IRM LB8 |
| >532 - 534 | (OD7+) | D LB6 + IRM LB7 |
| >534 - 536 | (OD6+) | DIRM LB6 |
| >536 - 538 | (OD5+) | DIRM LB5 |
| >538 - 540 | (OD4+) | DIRM LB4 |
| >540 - 542 | (OD3+) | DIRM LB3 |
| >542 - 545 | (OD2+) | DIRM LB2 |
