laservision laser safety goggle with magnifier F27 with filter P1G04

laser safety magnifier F27P1G04 420mm

The laser safety magnifier F27.P1G04.1241 is suitable for laser radiation in the range 180nm-400nm and 5,250nm-14,000nm and have full protection. The P1G04 filter used here in the shield and on the magnifying glass has an excellent daylight transmission of 90%. This means that both the color vision and the visual brightness are excellent. The laser safety loupe from laservision can be used in the medical sector especially for applications with dental, surgical and dermatology lasers. The F27 laser safety loupe is shipped in a handy case with foam for a protective storage. This case also includes a professional cleansing fluid and a cord to hang the goggle around the neck during breaks. laservision recommends the professional cleaning station for cleaning the laser safety loupe.


  • F27P1G041241
  • GTIN: 4050369042018
  • 1 pieces
  • 0.59 kg
  • 0.10 kg
Protection range

Protection in the infrared spectral range above 1400nm


Protection within the ultraviolet spectral range between 180 and 400nm

Protection Class / Norm: EN 207 full protection
Frame type: OTG with temples
Properties: Lightweight
Frame: F27

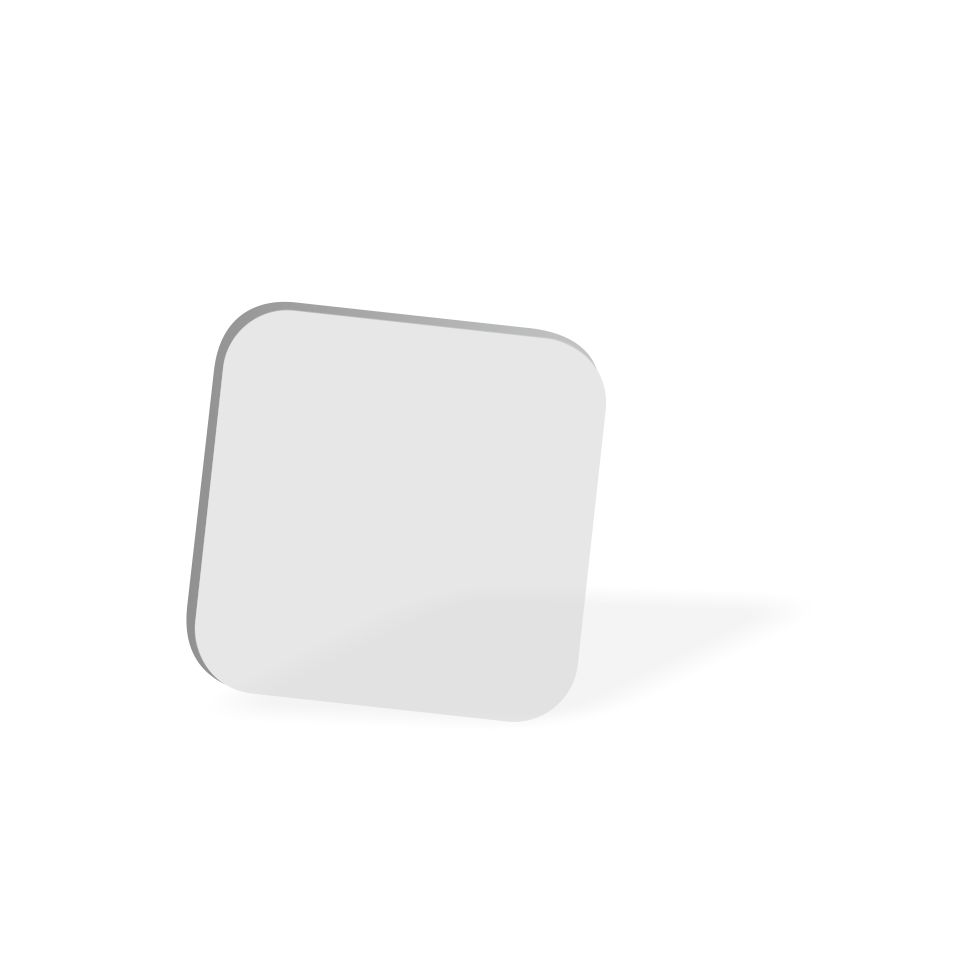

Filter: Clip-on flip
Filter colour: Colourless

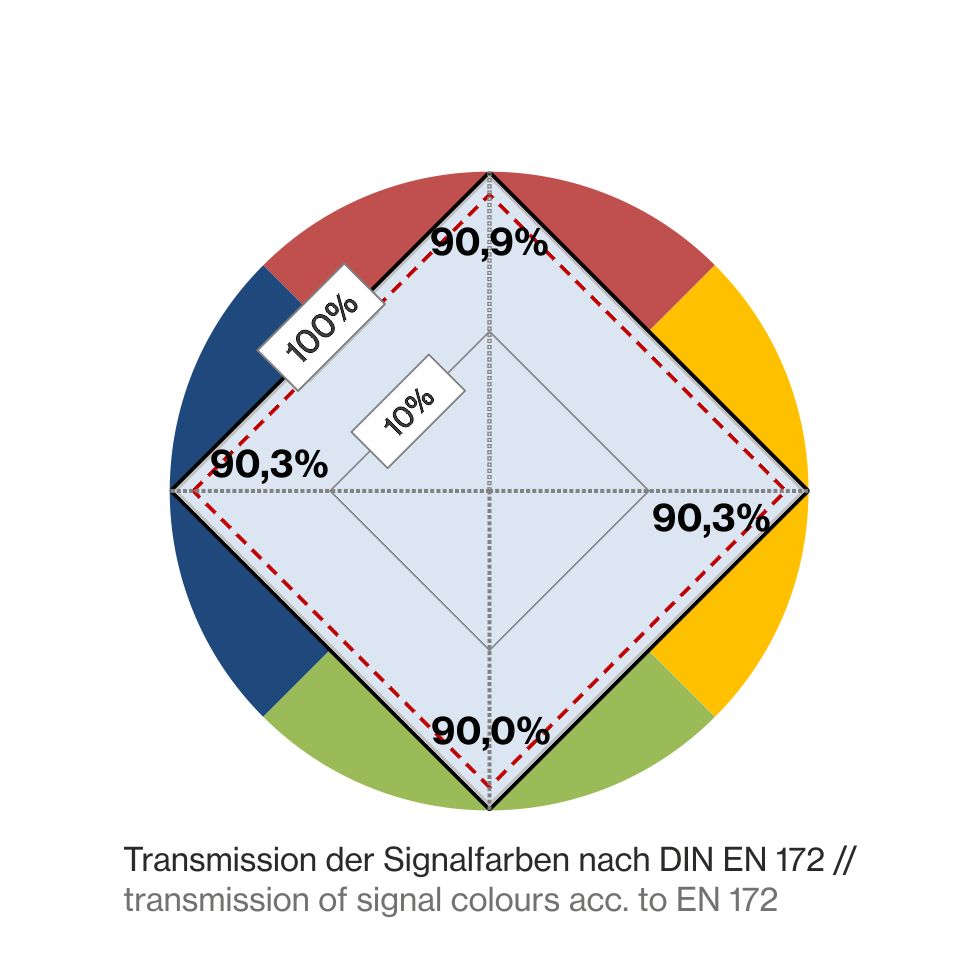

colour recognition: Excellent
Filter thickness: ca. 2mm
Filter material: Plastic
Filter technology: Absorption filter
Protection range: Infrared
Visual brightness: Excellent
VLT (approx.): 90%

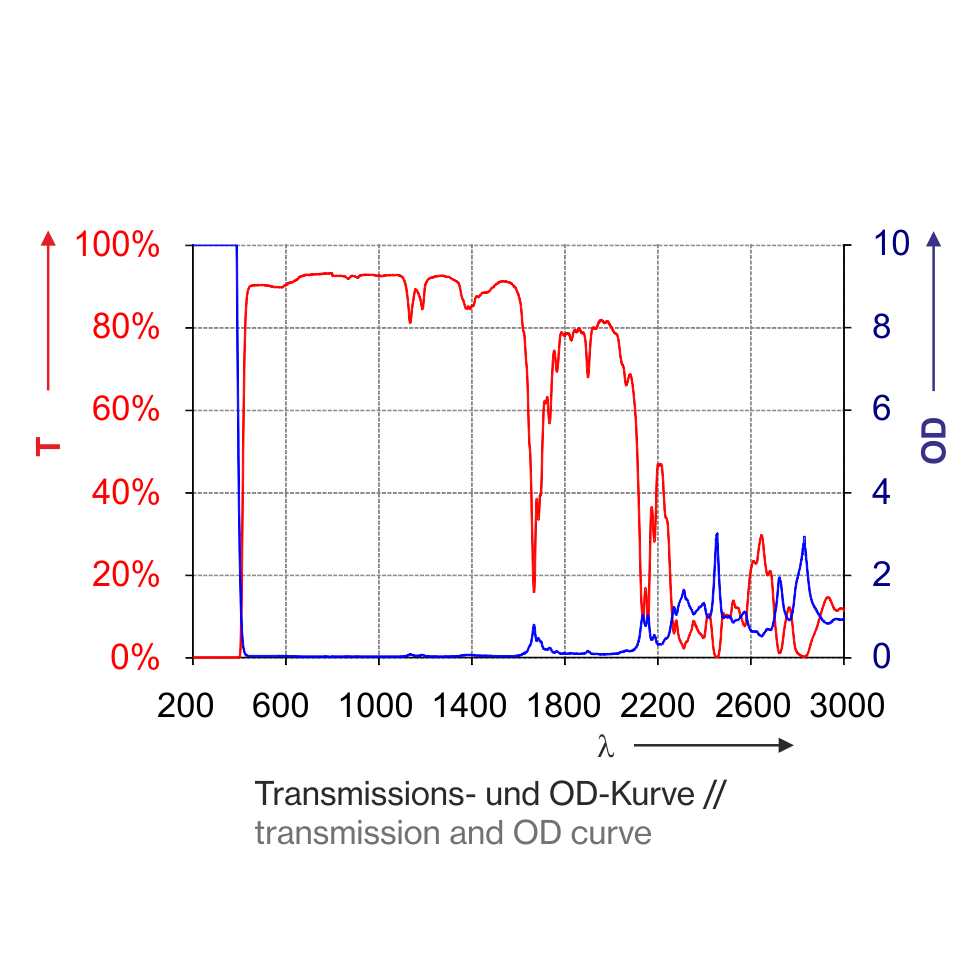

wavelength (nm) OD Operating mode  / Tested protection level
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6Y
>315 - 384 (OD10+) D LB6 + IR LB8 + M LB7Y
>384 - 388 (OD8+) D LB6 + IR LB8 + M LB7Y
>388 - 392 (OD6+) DIRM LB6
>392 - 396 (OD4+) DIRM LB4
>396 - 400 (OD3+) DIRM LB3
5250 - 14000 (OD5+) DI LB4 + R LB3Y
10600 - 10600 (OD8+) DI LB4 + R LB3Y
Other products in this category

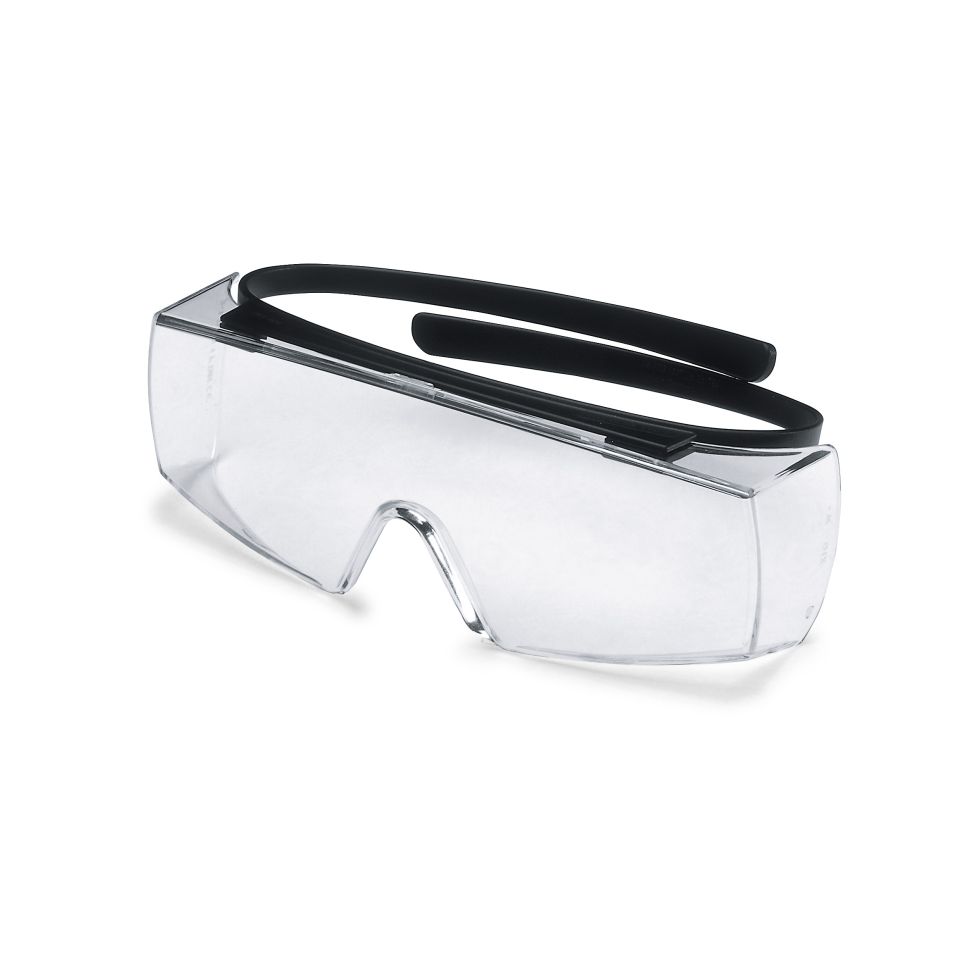

laservision Laserschutzbrille F18P1G041001 laser safety goggle F18P1G04.1003
  • 1 Stück
  • F18P1G041003

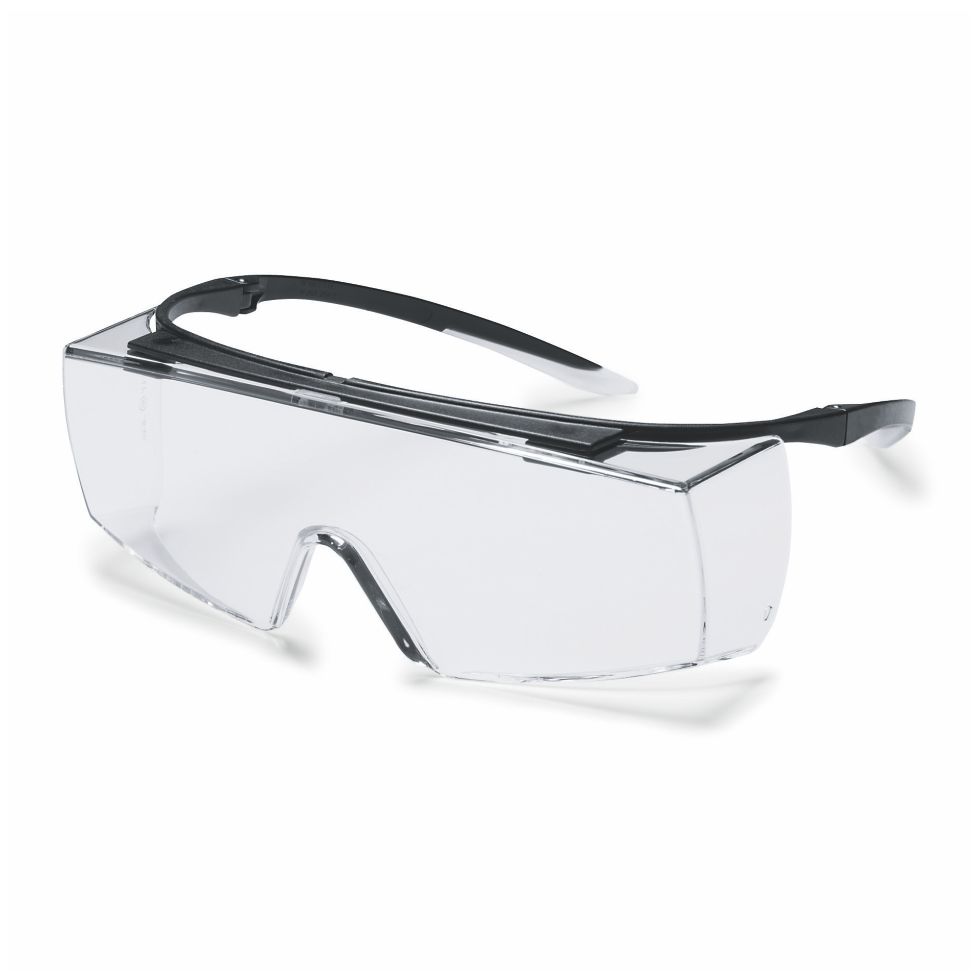

laservision Laserschutzbrille F22P1G04 laser safety spectacle F22P1G04
  • 1 Stück
  • F22P1G041003

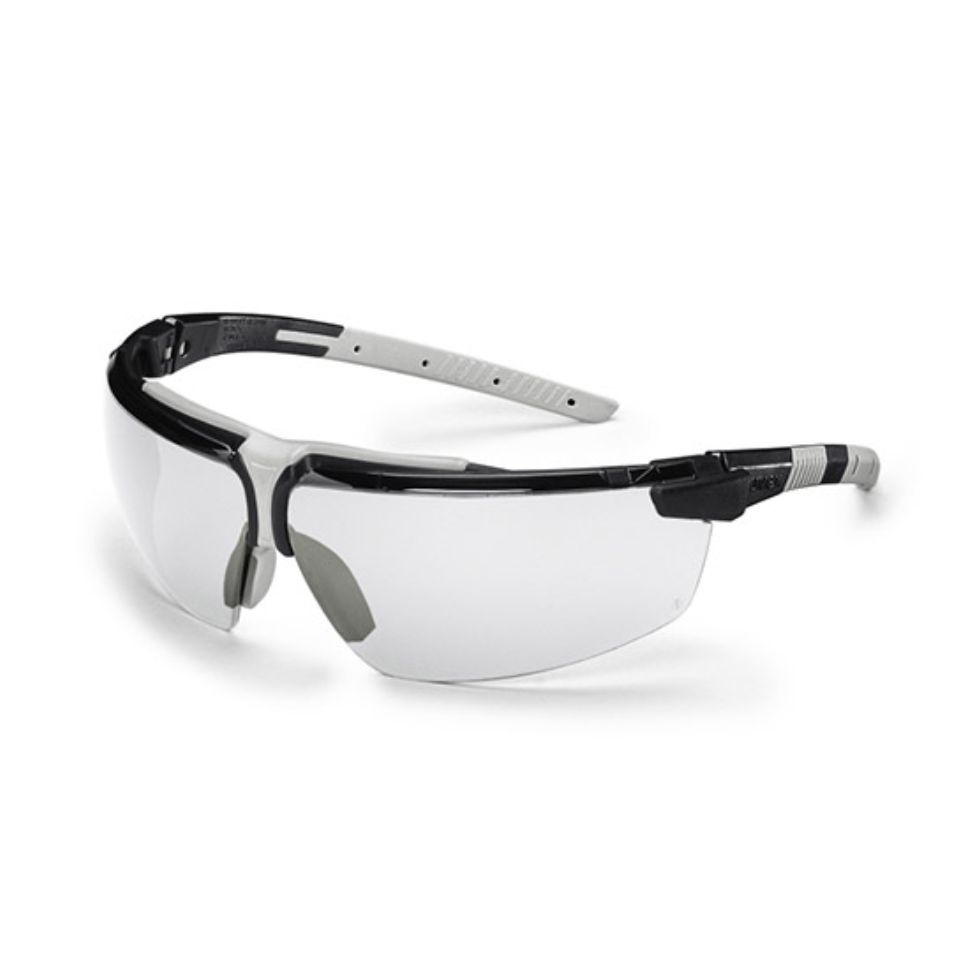

laservision laser safety eyewear F29.P1G04.1001 laser safety spectacle F29P1G04
