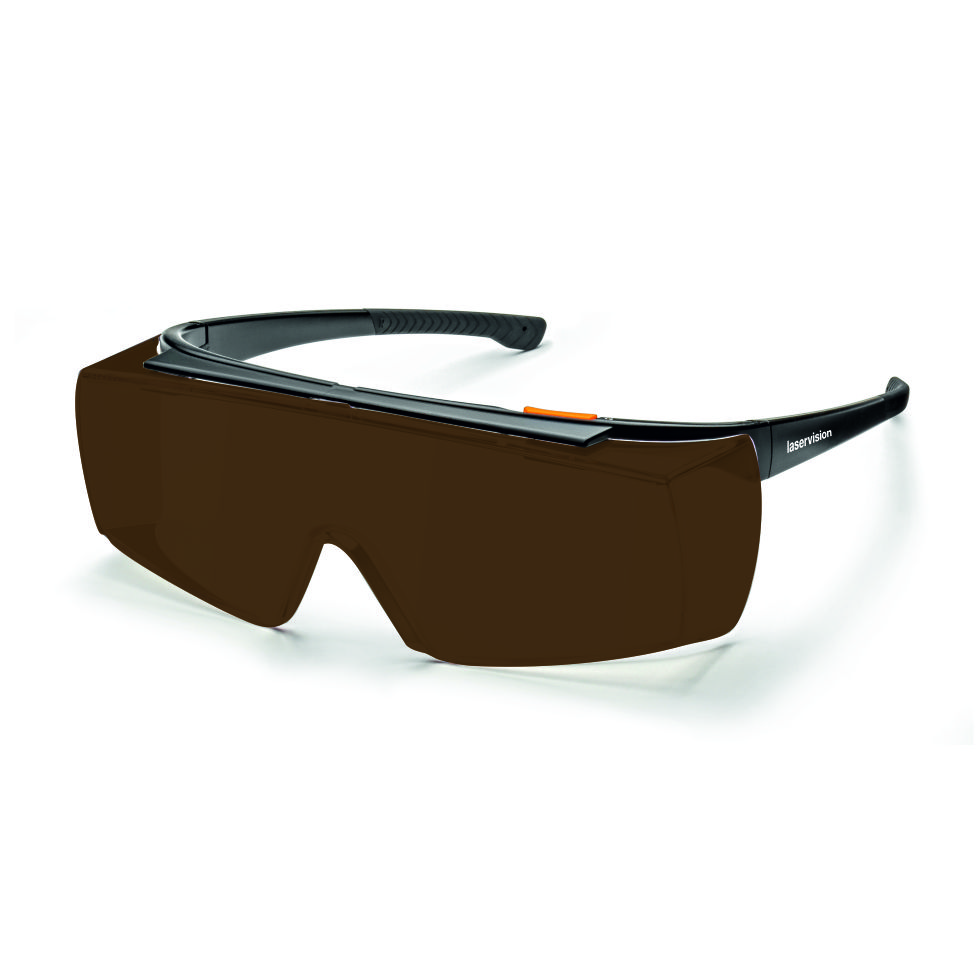

laser safety spectacle F42P1L07
The laser safety spectacle F42.P1L07.1001 with disinfectable standard temples, a quick release system (quick release) and cold-forming temple tips has got limited daylight transmission of approx. 10% which is sufficient in bright working environment. Colour recognition is slightly limited.The filter type P1L07 is certified with M-protection levels for nearly the full wavelength range between 180 and 1210nm and therfore especially suitable for supercontinuum lasers and ultra-short pulsed lasers. This goggle has high m-protection ratings within the wavelength area 745nm and 1120nm and it has full protection levels acc. to EN 207. It consists of an almost complete certified area from 180nm to 1210nm. The eyewear comes in a sustainably produced hexagonal cardboard box, along with a microfiber pouch and a cord to hang the goggles on. For cleaning the laser safety goggles, laservision recommends the professional cleaning station (A99.CLSTA.1300).
- Order number: F42P1L071001
- GTIN: 4050369050037
- Pack unit: 1 pieces
- Weight incl. packaging: 0.24 kg
- Weight excl. packaging 0.05 kg
Protection within the near infrared spectral range between 700nm and 1400nm
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Coating: |
Anti-scratch on both sides
|
| Protection Class / Norm: |
EN 207 full protection
|
| Frame type: |
OTG with temples
|
| Properties: |
desinfizierbar
kaltverformbare Bügelenden Lightweight M-protection rating Quick Release |
| Frame: |
F42
|

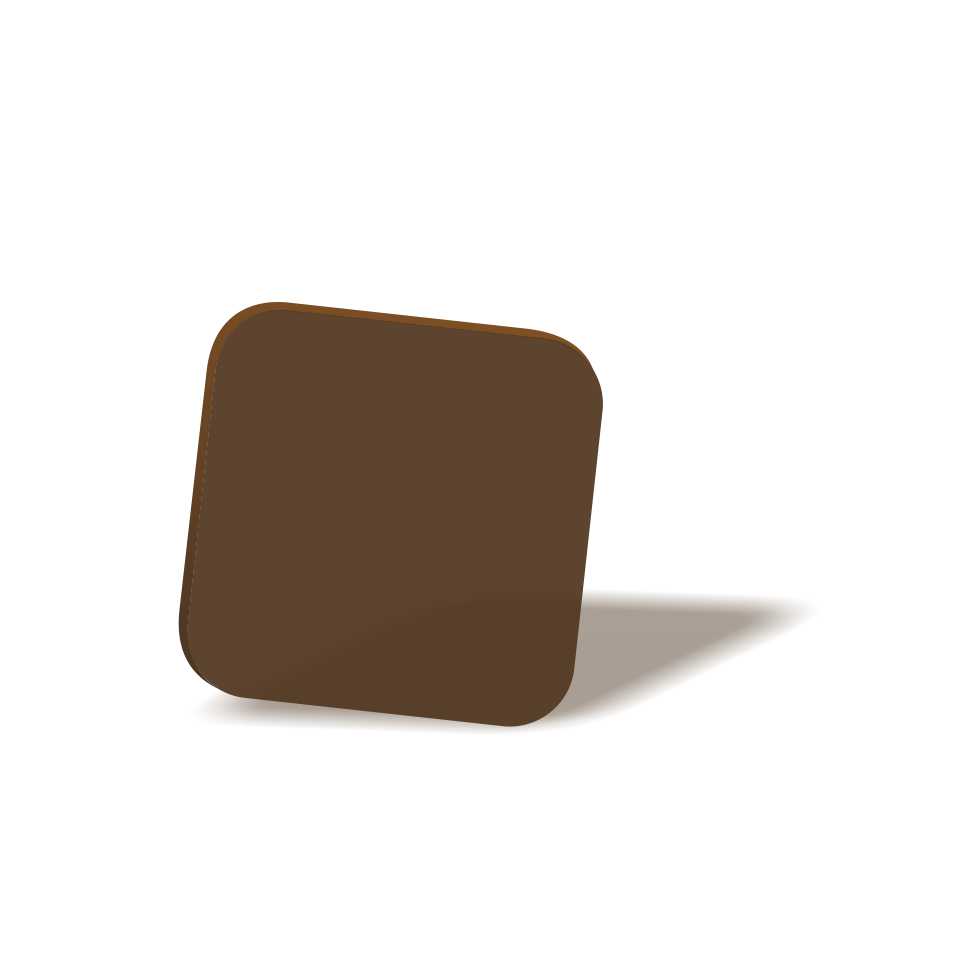

| Filter: |
P1L07
|
| Filter colour: |
Brown
|

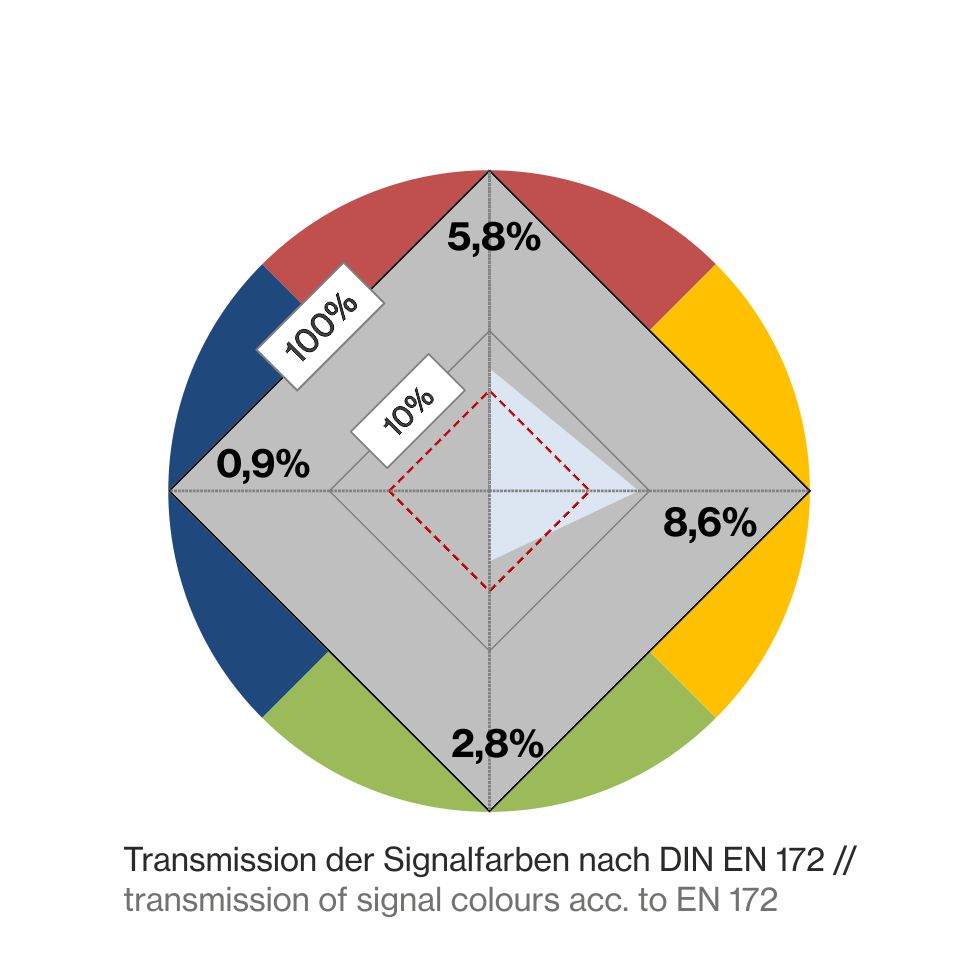

| colour recognition: |
Good
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
near infrared
ultraviolett visible |
| Visual brightness: |
Sufficient
|
| VLT (approx.): |
10%
|

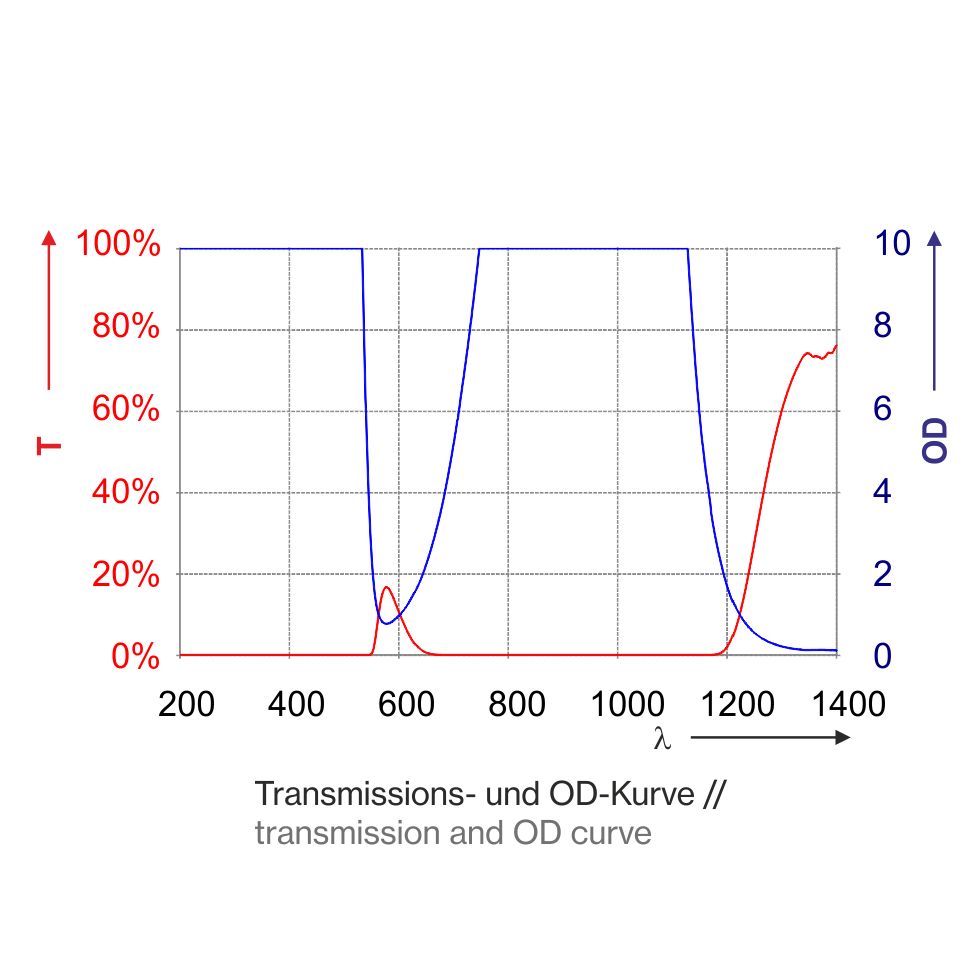

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6 |
| >315 - 534 | (OD8+) | D LB6 + IRM LB8 |
| >534 - 540 | (OD6+) | DIRM LB6 |
| >540 - 545 | (OD3+) | DIRM LB3 |
| 630 - <660 | (OD1+) | DIRM LB1 |
| 660 - <680 | (OD2+) | DIRM LB2 |
| 680 - <700 | (OD3+) | DIRM LB3 |
| 700 - <715 | (OD4+) | DIRM LB4 |
| 715 - <725 | (OD5+) | DIRM LB5 |
| 725 - <735 | (OD6+) | DIRM LB6 |
| 735 - <745 | (OD7+) | D LB6 + IRM LB7 |
| 745 - <755 | (OD8+) | D LB6 + IRM LB8 |
| 755 - 1120 | (OD9+) | D LB6 + IR LB8 + M LB9 |
| >1120 - 1130 | (OD7+) | D LB6 + IRM LB7 |
| >1130 - 1135 | (OD6+) | DIRM LB6 |
| >1135 - 1145 | (OD5+) | DIRM LB5 |
| >1145 - 1155 | (OD4+) | DIRM LB4 |
| >1155 - 1165 | (OD3+) | DIRM LB3 |
| >1165 - 1180 | (OD2+) | DIRM LB2 |
| >1180 - 1210 | (OD1+) | DIRM LB1 |
