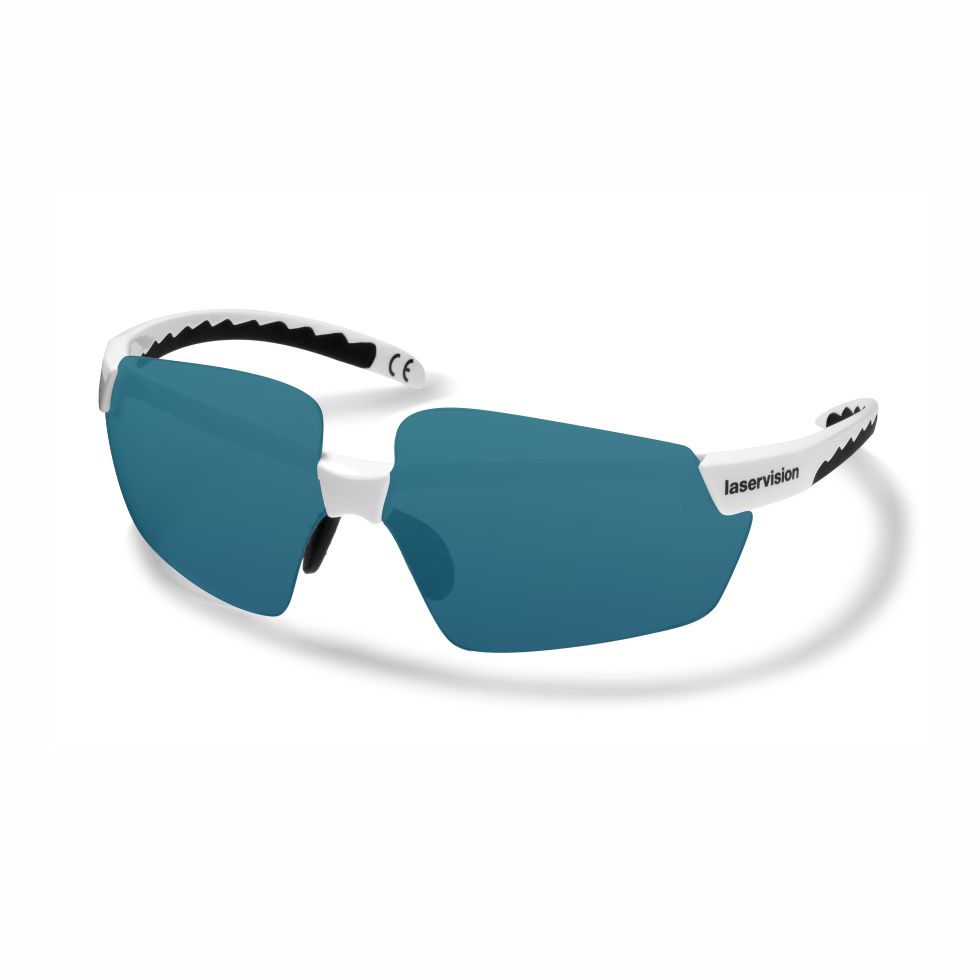

laser safety spectacle F47P1P10

The laser safety spectacle F47.P1P10.1001 with the blue filters is certified with a few interruptions for the wavelength range from 180-11500nm according to EN 207 (full protection) and are characterized in particular by the high protection levels in the IR range. It also has M protection levels for ultra-short laser pulses and adjustment protection in accordance with EN 208 in the 640-700nm range. The sporty, lightweight 2-lens spectacle with low weight and base curve 8 have good visual brightness and a daylight transmission (VLT) of approx. 16%. The laser safety eyewear can be supplemented with a special adapter from laservision with an LED light or a magnifying glass. laservision recommends the professional cleaning station (A99.CLSTA.1300) for cleaning the laser safety spectacle.

  • F47P1P101001
  • GTIN: 4050369057302
  • 1 pieces
  • 0.23 kg
  • 0.03 kg
Protection range

Protection in the infrared spectral range above 1400nm

near infrared
near infrared

Protection within the near infrared spectral range between 700nm and 1400nm


Protection within the ultraviolet spectral range between 180 and 400nm


Protection within the visible spectral range between 400 and 700nm

Filter curvature: Base curve 8
Coating: no coating
Protection Class / Norm: EN 207 full protection
EN 208 Alignment protection
Cushion: No cushion
Frame type: Spectacle
Properties: 2-Komponenten-Softbügel
Anpassbare Nasenauflage
M-protection rating
Frame: F47

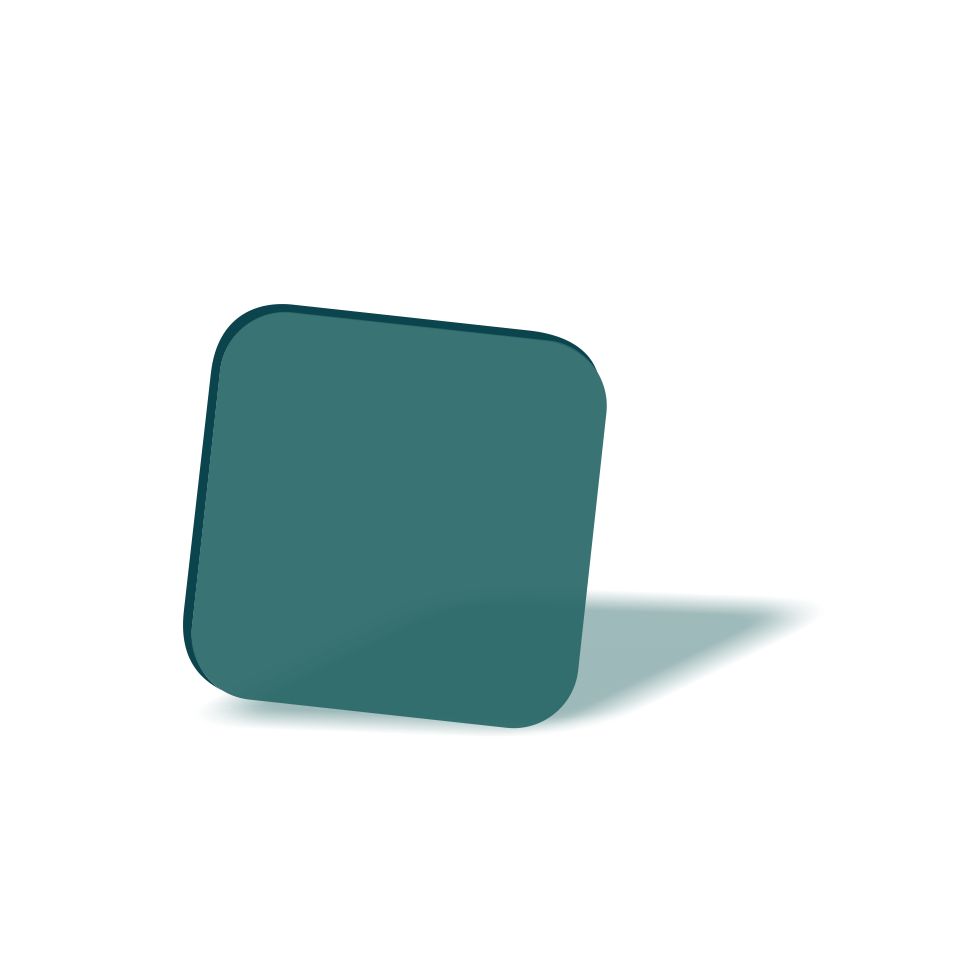

Filter: P1P10
Filter colour: Blue

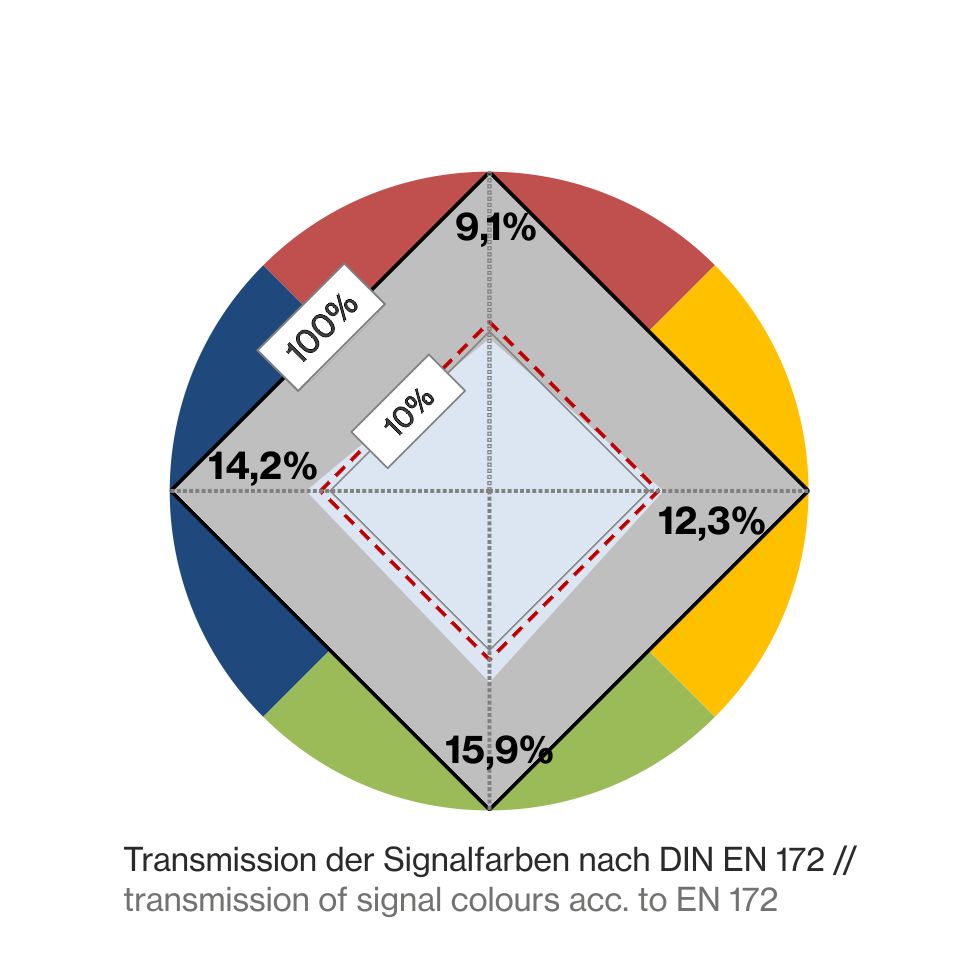

colour recognition: Good
Filter thickness: ca. 2mm
Filter material: Plastic
Filter technology: Absorption filter
Protection range: Infrared
near infrared
Visual brightness: Sufficient
VLT (approx.): 16%
wavelength (nm) OD Operating mode  / Tested protection level
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6
>315 - 385 (OD8+) D LB6 + IRM LB8
>385 - 400 (OD4+) DIRM LB4
635 - 690 (OD1-2) 0,01W 2x10E-6J RB1
635 - <720 (OD1+) DIRM LB1
720 - <770 (OD2+) DIRM LB2
770 - <800 (OD3+) DIRM LB3
800 - <840 (OD4+) DIRM LB4
840 - <880 (OD5+) DIRM LB5
880 - <960 (OD6+) DIRM LB6
960 - <1030 (OD7+) D LB6 + IRM LB7
1030 - 1400 (OD8+) D LB6 + IRM LB8
>1400 - 3600 (OD4+) DIM LB4 + R LB3Y
>3600 - 5250 (OD3+) DIM LB3 + R LB3Y
>5250 - 14000 (OD5+) DI LB4 + R LB3Y + M LB5Y
Other products in this category

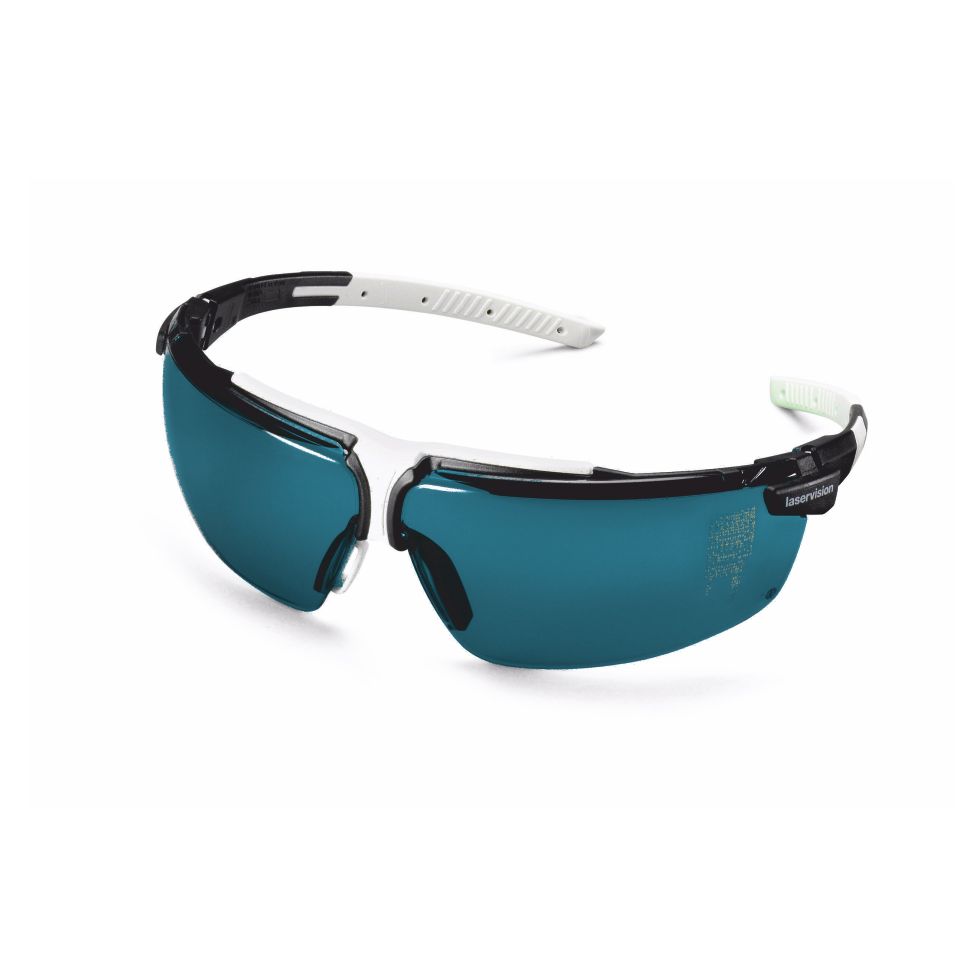

laser safety spectacle F29P1P10 laser safety spectacle F29P1P10
  • 1 Stück
  • F29P1P101001

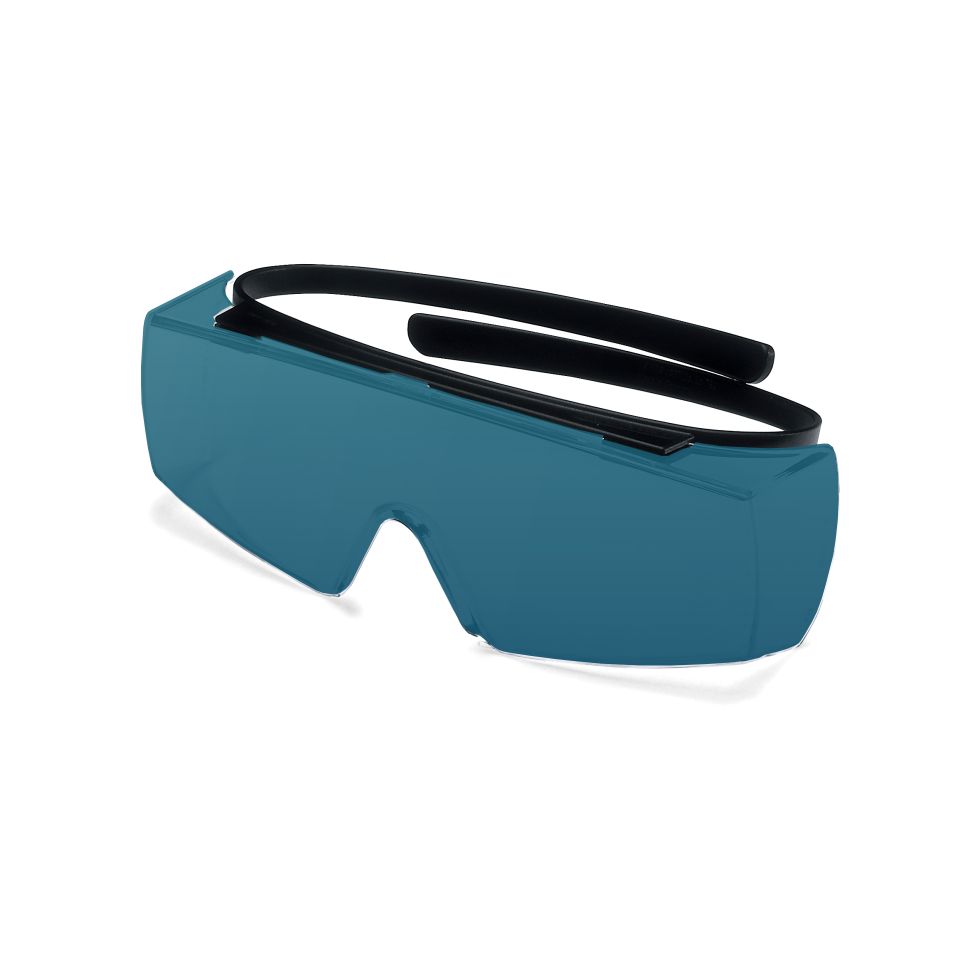

laservision Laserschutzbrille F18.P1P10 laser safety spectacle F18P1P10
  • 1 Stück
  • F18P1P101001

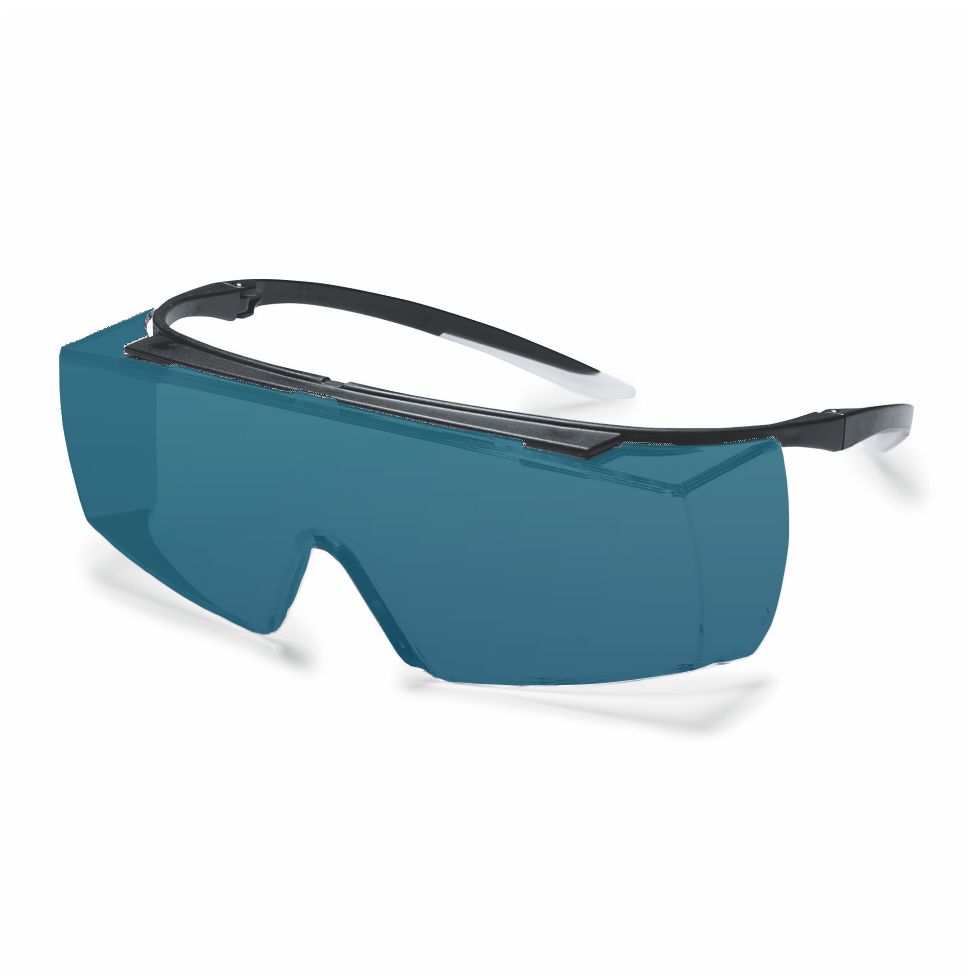

laservision Laserschutzbrille F22.P1P10 laser safety spectacle F22P1P10
  • 1 Stück
  • F22P1P101001
laservision laser safety magnifier F29.P1P10.1241 laser safety magnifier F27P1P10 420mm
  • 1 Stück
  • F27P1P101241

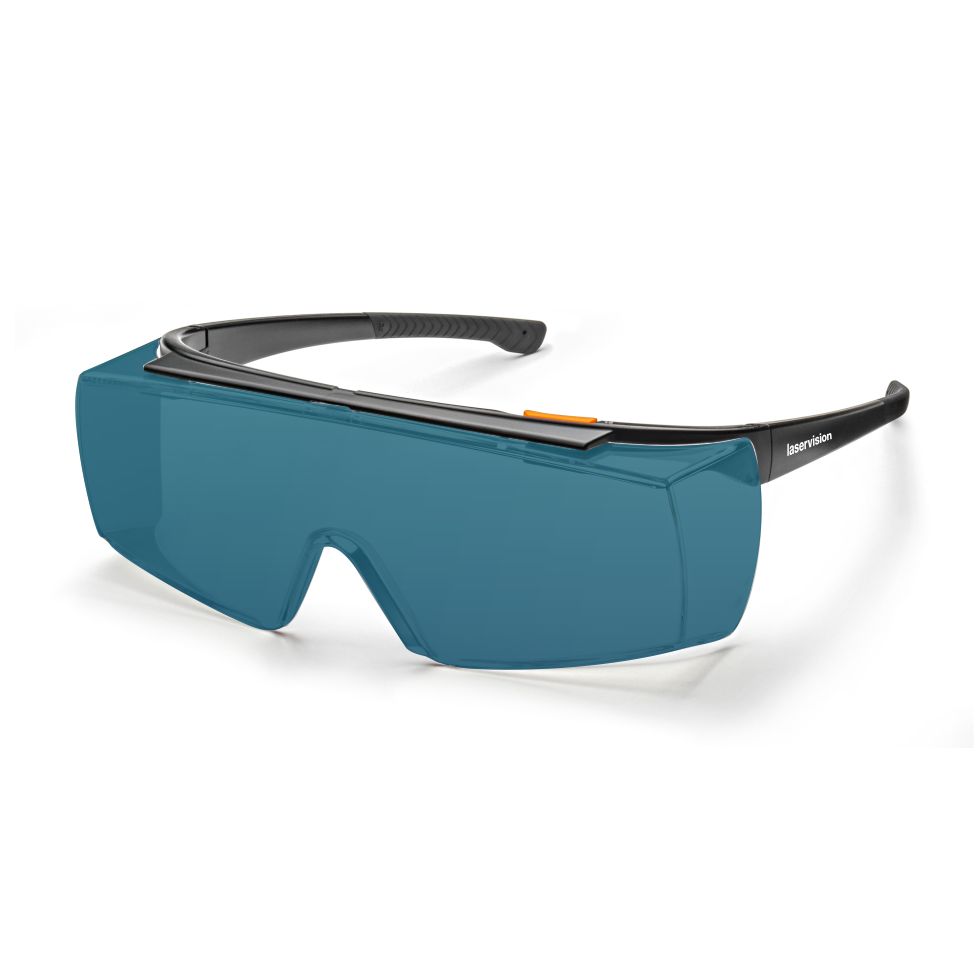

laservision laser safety goggle F42 mwith filter P1P10 laser safety goggle F42P1P10
