laservision Laserschutzbrille F22 mit Filter P1P15

laser safety spectacle F22P1P15

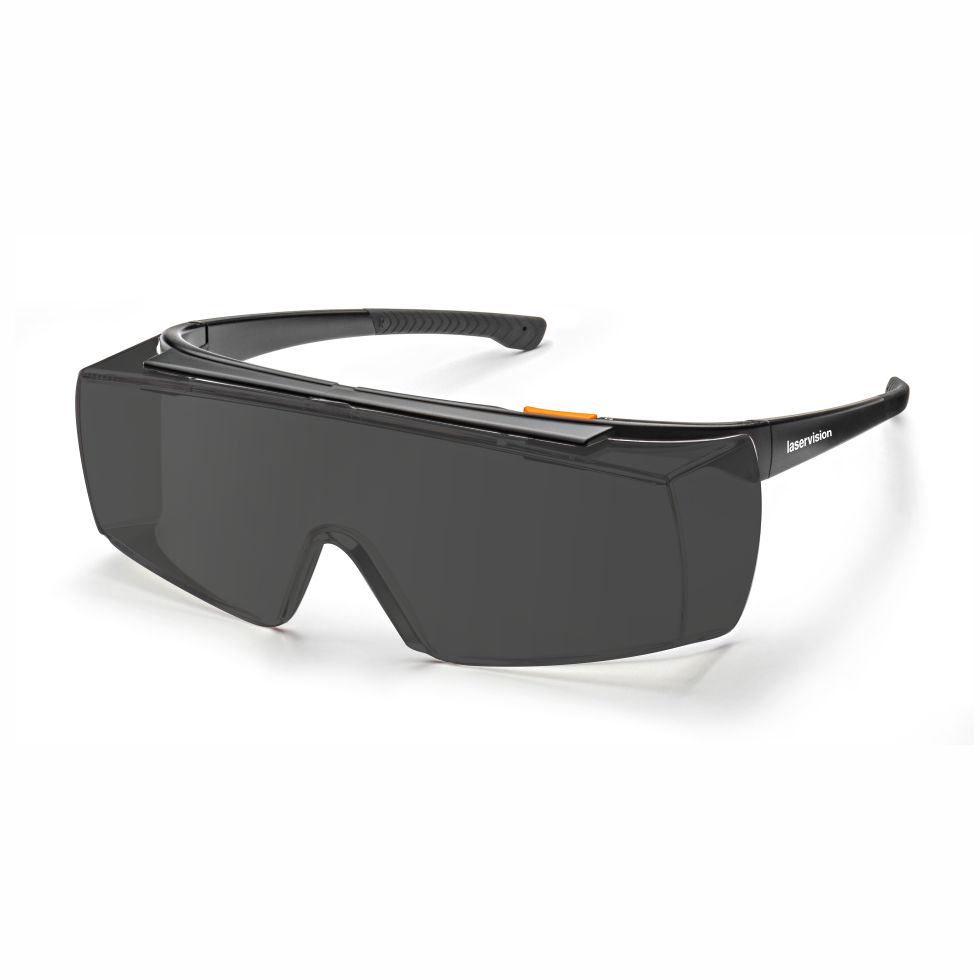

The laser safety goggle F22.P1P15.1001 is suitable for almost the complete wavelength range between 180 and 14000. Within this range it features full protection levels acc. to EN 207. An alignment protection acc. to EN 208 is featured within the area >420 to 700 with OD 1-2 and at 410-420 with OD 2-3. The shipment adds a softcase together with a cord to hang it around the neck. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLASTA.1200).

  • F22P1P151001
  • GTIN: 4050369038578
  • 1 pieces
  • 0.278 kg
Protection range
near infrared
near infrared

Protection within the near infrared spectral range between 700nm and 1100nm

visible
visible

Protection within the visible spectral range between 400 and 700nm

Coating: no coating
Filter curvature: Flat filter
Protection Class / Norm: EN 207 full protection
EN 208 Alignment protection
Cushion: No cushion
Frame type: OTG with temples
Properties: Lightweight
M-protection rating
Frame: F22

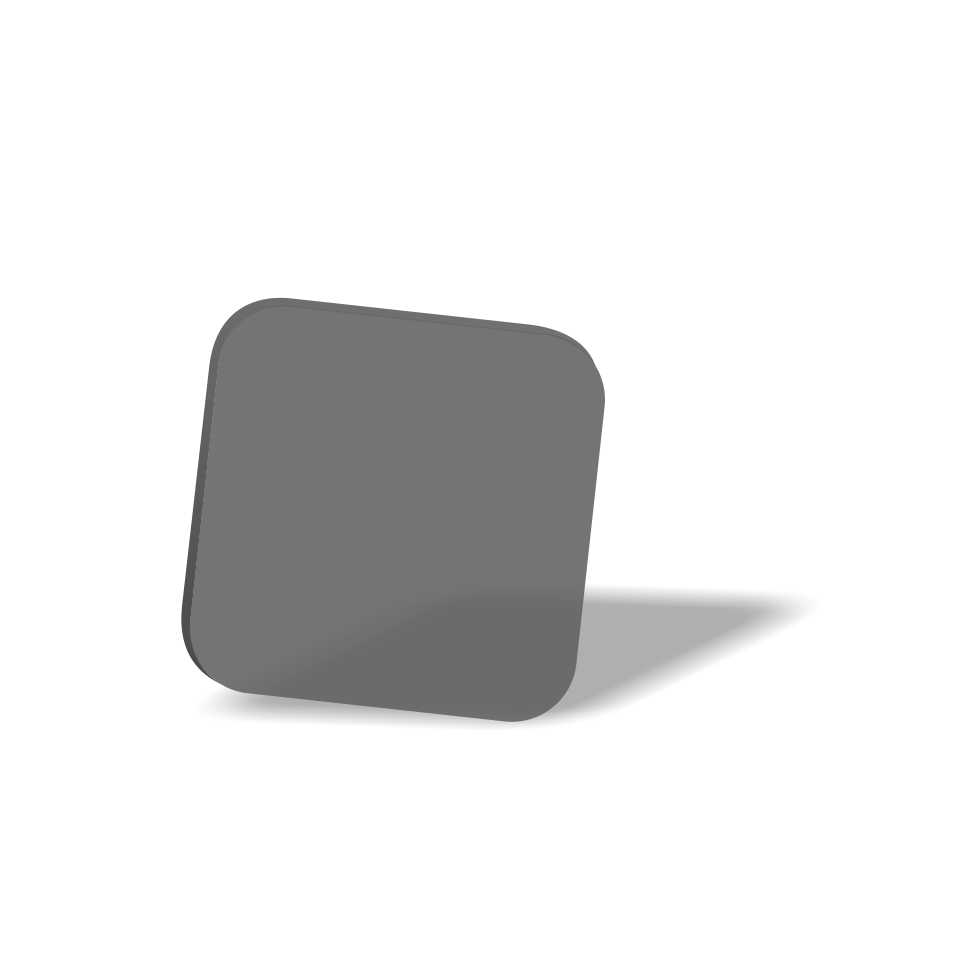

Filter: Mouth protection
Filter colour: Dark grey

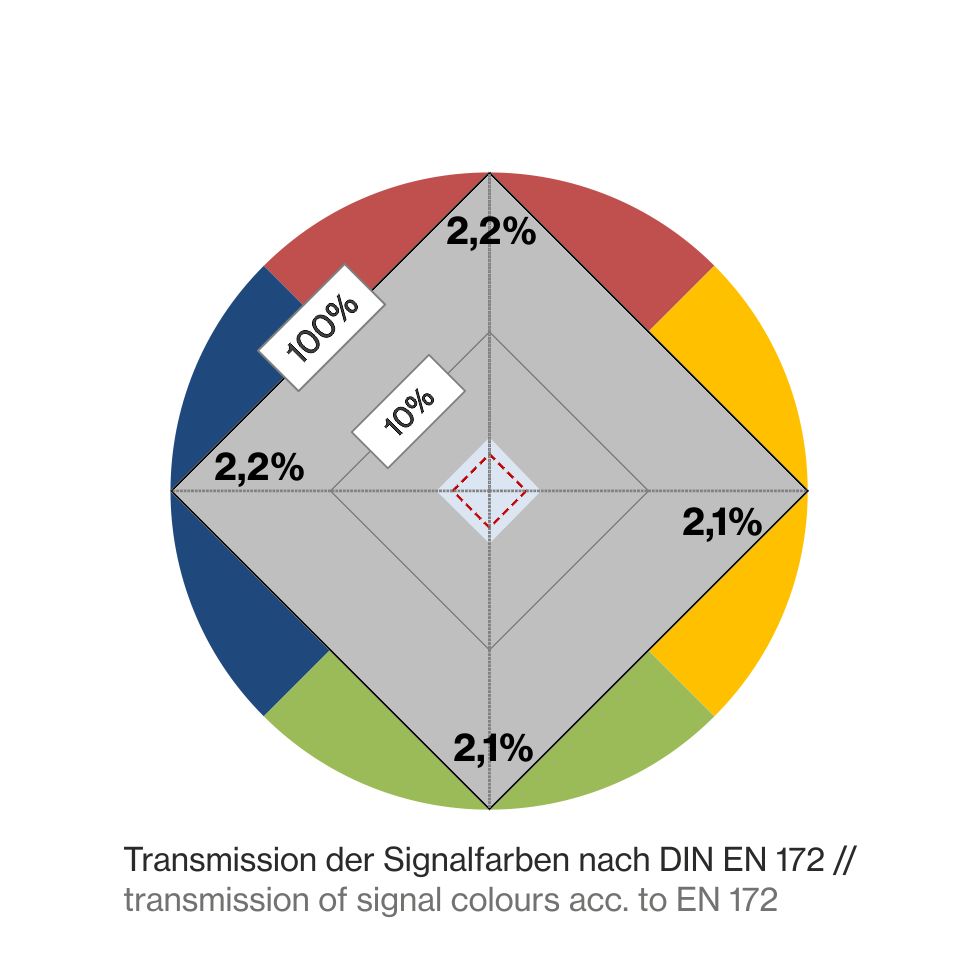

colour recognition: Good
Filter thickness: ca. 3-4mm
Filter material: Plastic
Filter technology: Absorption filter
Protection range: near infrared
visible
Visual brightness: Low
VLT (approx.): 2%

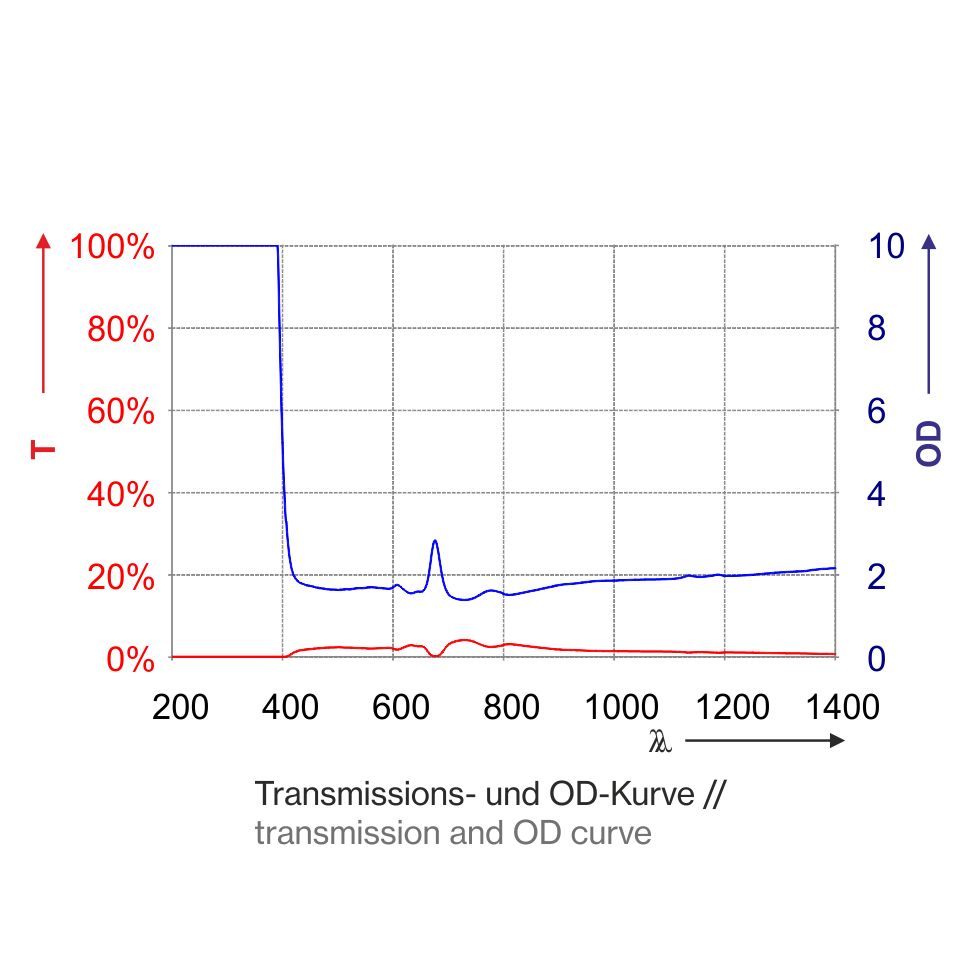

wavelength (nm) OD Operating mode  / Tested protection level
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6Y
>315 - 384 (OD8+) D LB6 + IR LB8 + M LB7Y
>384 - 388 (OD7+) D LB6 + IR LB7 + M LB7Y
>388 - 392 (OD6+) DIRM LB6
>392 - 396 (OD4+) DIRM LB4
>396 - 400 (OD3+) DIRM LB3
>400 - 415 (OD2+) DIRM LB2
410 - 420 (OD2-3) 0,1W 2x10E-5J RB2
>415 - 1400 (OD1+) DIRM LB1
>420 - 664 (OD1-2) 0,01W 2x10E-6J RB1
>664 - 688 (OD2-3) 0,1W 2x10E-5J RB2
>688 - 700 (OD1-2) 0,01W 2x10E-6J RB1
5250 - 14000 (OD4+) DI LB4 + R LB3Y
