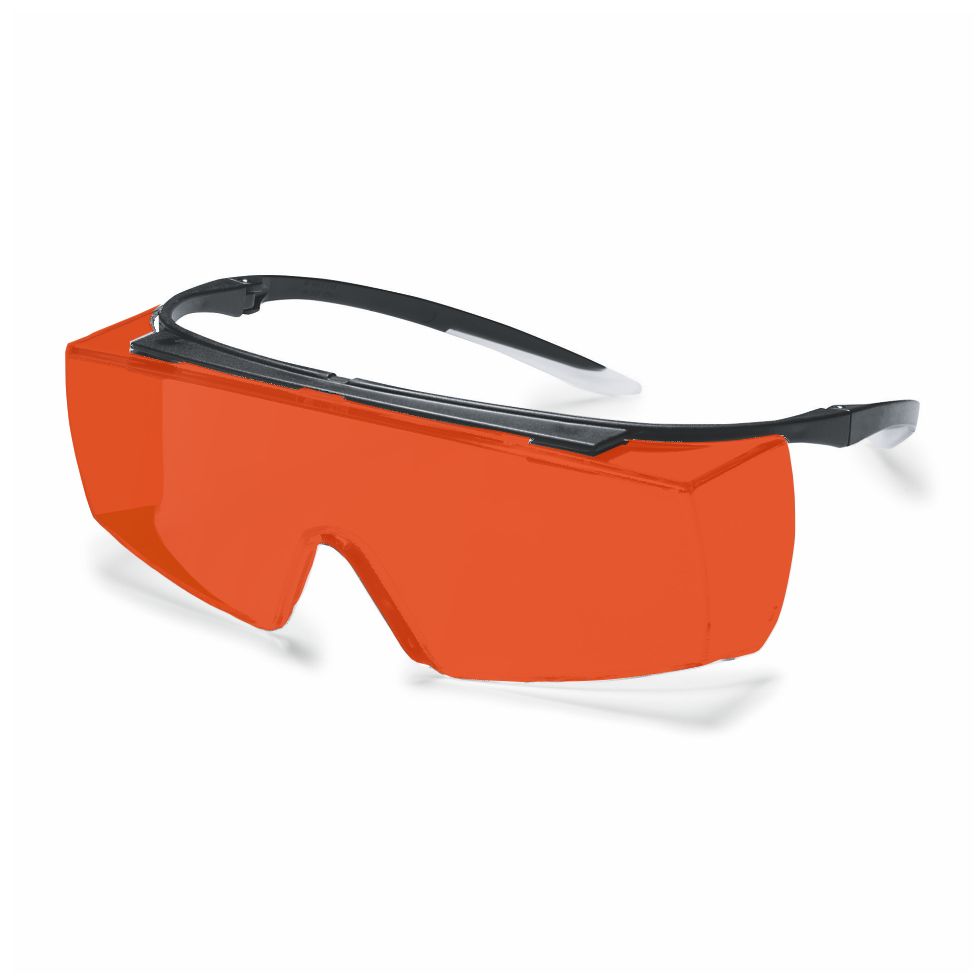

laser safety spectacle F18P1P17
The laser safety goggle F18.P1P17.1001 is especially suitable for UV-, Nd: YAG, SHG, THG lasers and is ideal for high-energy pulsed lasers in the medical sector. It has M LB8 at 532nm and M LB8 at 1064nm. It can be worn as over-glasses on corrective lenses. The laser safety goggle has a daylight transmission of approx. 25% so that the subjective impression of the visual brightness is good. The F18 frame stands out for its light weight and perfect fit for almost any head shape. The delivery takes place in a soft case together with a cord for putting on the glasses. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F18P1P171001
- GTIN: 4050369049086
- Pack unit: 1 pieces
- Weight incl. packaging: 0.23 kg
- Weight excl. packaging 0.04 kg
Protection in the infrared spectral range above 1400nm
Protection within the near infrared spectral range between 700nm and 1400nm
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Coating: |
no coating
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
OTG with temples
|
| Properties: |
Lightweight
|
| Frame: |
F18
|

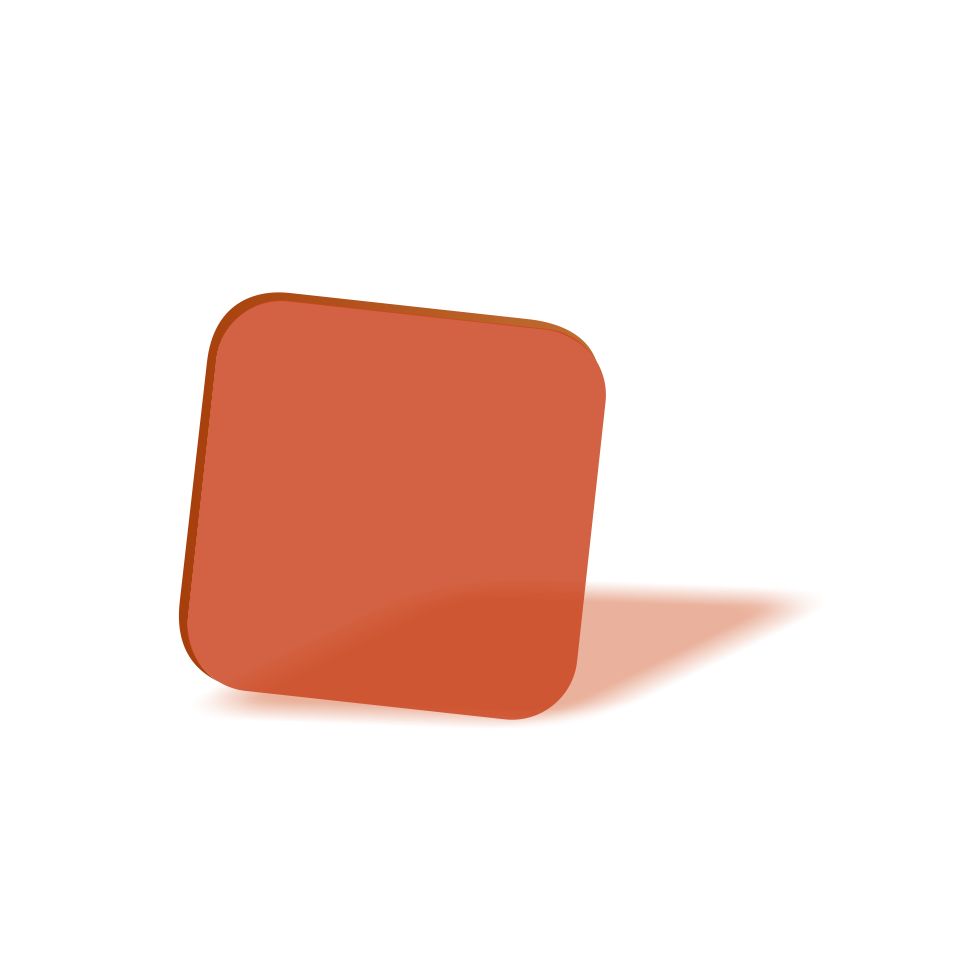

| Filter: |
P1P17
|
| Filter colour: |
Orangebraun
|

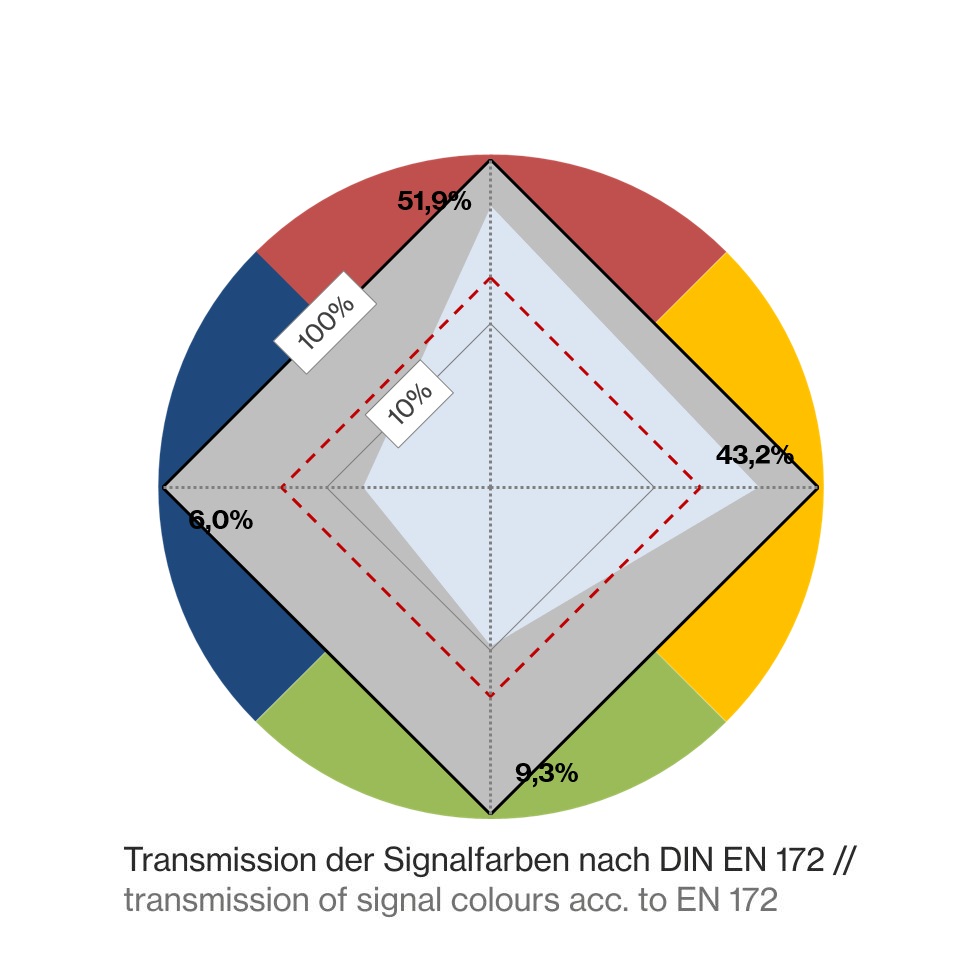

| colour recognition: |
Limited
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
Infrared
near infrared ultraviolett visible |
| Visual brightness: |
Good
|
| VLT (approx.): |
25%
|

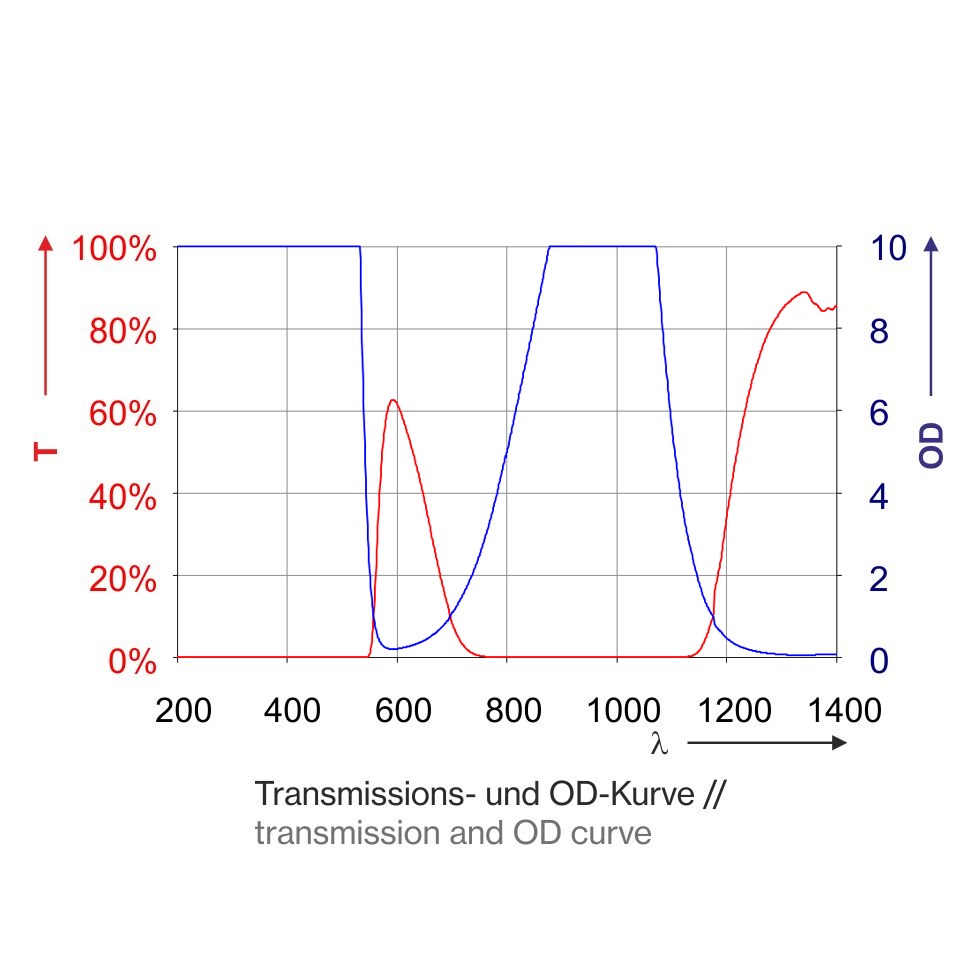

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 532 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >532 - 535 | (OD8+) | D LB6 + IRM LB8 |
| >535 - 539 | (OD6+) | DIRM LB6 |
| >539 - 541 | (OD5+) | DIRM LB5 |
| >541 - 545 | (OD3+) | DIRM LB3 |
| 785 - <800 | (OD4+) | DIRM LB4 |
| 800 - <816 | (OD5+) | DIRM LB5 |
| 816 - <835 | (OD6+) | DIRM LB6 |
| 835 - <850 | (OD7+) | D LB6 + IRM LB7 |
| 850 - <880 | (OD8+) | D LB6 + IRM LB8 |
| 880 - 1070 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >1070 - 1080 | (OD8+) | D LB6 + IRM LB8 |
| >1080 - 1087 | (OD7+) | D LB6 + IRM LB7 |
| >1087 - 1096 | (OD6+) | DIRM LB6 |
| >1096 - 1105 | (OD5+) | DIRM LB5 |
| >1105 - 1113 | (OD4+) | DIRM LB4 |
| >1113 - 1125 | (OD3+) | DIRM LB3 |
| 5250 - 14000 | (OD5+) | DI LB4 + R LB3Y |
| 10600 - 10600 | (OD8+) | DI LB4 + R LB3Y |
