laser safety window T1K02
The laservision mineral glass laser safety window T1K02 with lamination provides amongst others high protection ratings like D LB6, IR LB8 within the NIR spectral area (1,050-1,400nm). The light grey filter material features a 70% VLT and is customized available up to a size of 200x100nm. The thickness is approximately 5,0 - 5,9 mm. This window is certified acc. EN207 and CE marked with 5 and 10 sec. of test time.
- Order number: 000T1K021001
- GTIN: 4050369012967
- Pack unit: 1 pieces
- Weight incl. packaging: 0.37 kg
- Weight excl. packaging 0.26 kg
The laser safety filter Type 000.T1K02.1001 is a light gray absorbing mineral glass filter without additional coating. The protection is based on absorption of the laser light within the bulk material. The laser protection filter has an extremely good daylight transmission of approx. 70% which is comparable to that of a normal window. Colour recognition is unrestricted. The filter type T1K02 is especially suitable for IR lasers starting from 950nm up to 2200nm. Additionally it protects against other IR lasers, like Er:YAG and CO2 lasers. Please calculate required protection levels before using laser safety filters and compare with the filter provided.
Specifications
Protection in the infrared spectral range above 1400nm
Protection within the near infrared spectral range between 700nm and 1400nm
| Coating: |
no coating
|
| Protection Class / Norm: |
EN 207 full protection
EN 60825 |
| Visual brightness: |
Very good
|
| Protection range: |
Infrared
near infrared |
| Filter technology: |
Absorption filter
|
| colour recognition: |
Excellent
|
| Filter material: |
Mineral glass
|
| Properties: |
Neutral glass lamination
|
| Colour: |
light grey
|
| VLT (approx.): |
70%
|
| Filter thickness: |
ca. 5,0 - 5,9 mm
|

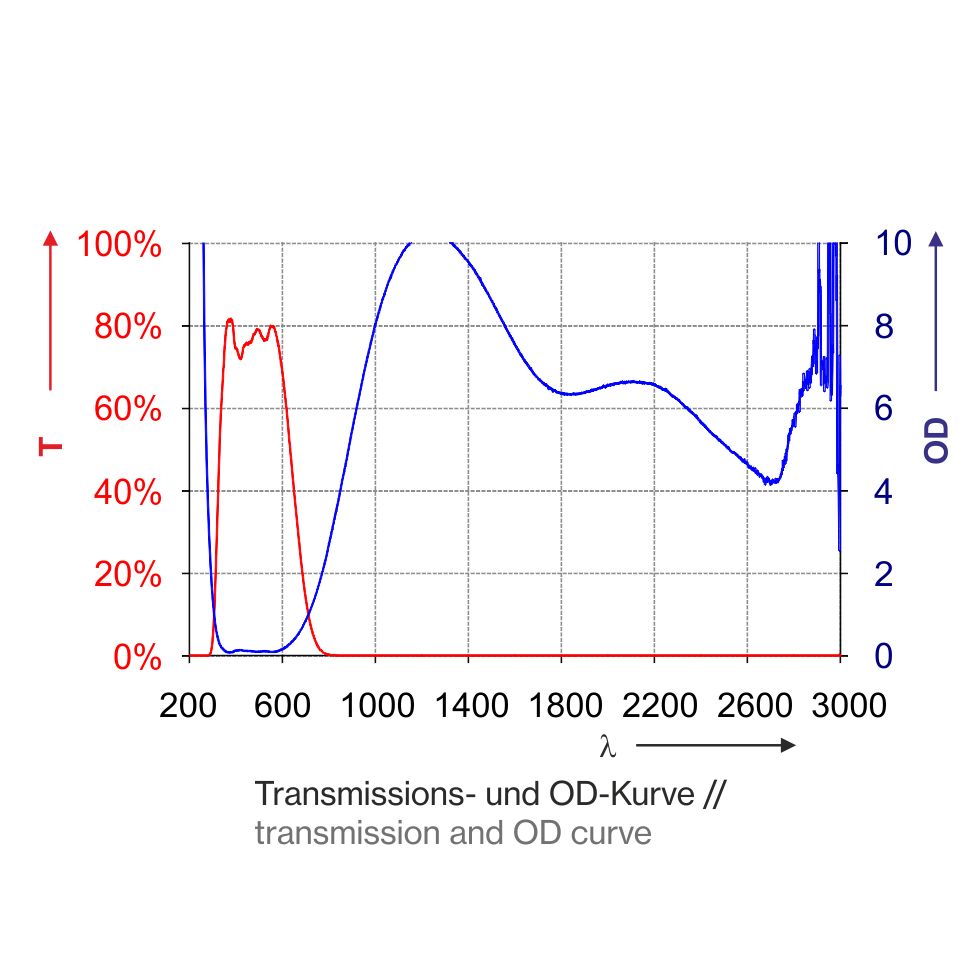

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 950 - 1000 | (OD5+) | DIR LB5 |
| >1000 - 1050 | (OD7+) | D LB6 + IR LB7 |
| >1050 - 1400 | (OD8+) | D LB6 + IR LB8 |
| >1400 - 2700 | (OD4+) | D LB4 + IR LB3 |
| >2700 - 3000 | (OD4+) | DI LB4 |
| 5400 - 5400 | (OD4+) | DI LB4 |
| 10600 - 10600 | (OD4+) | DI LB4 |
| 950-1399nm | 143 kW/m2 | T2 | tmax = 105s |
| 3000-25000nm | 221 kW/m2 | T2 | tmax = 105s |
