barrier material M7P06

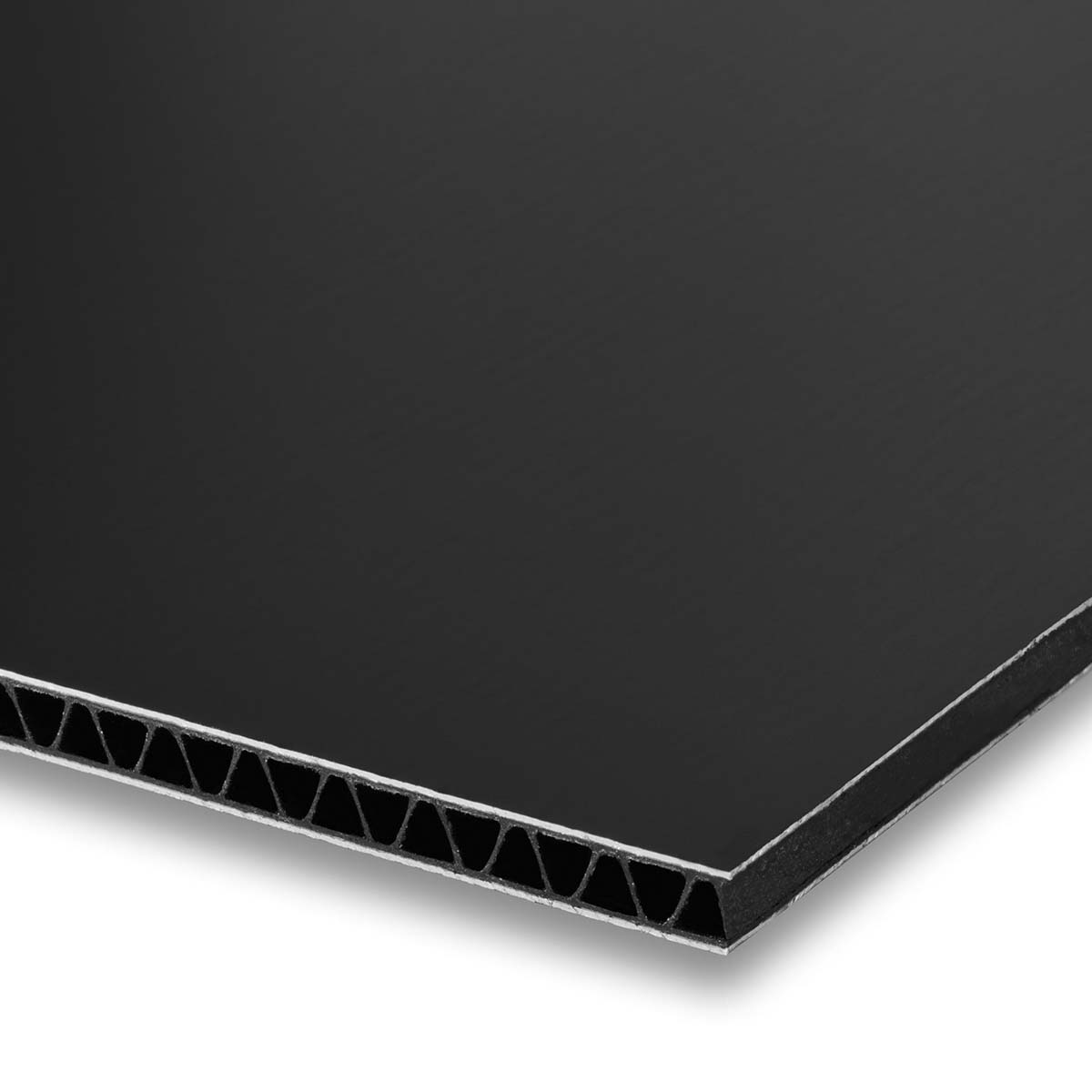

The standard barrier material M7P06 consists of a lightweight aluminium-plastic sandwich construction and is suitable for lasers up to medium power. It is certified acc. to DIN EN 60825-4 & EN 12254 and is available at short notice with a dimension of 1219 x 2438mm.
€648.00*
Prices plus VAT plus shipping costs
-
The delivery time is 3-5 days.
- Order number: BM0M7P065PM1
- GTIN: 4050369039469
- Weight incl. packaging: 13,75 kg
- Weight excl. packaging: 9,70 kg
Product number:
BM0M7P065PM1
Product information "barrier material M7P06"
Highlights
- Standard Barrier => short delivery times
- Black
- BM0M7P065PM1: D: 5,5 | B x H: 1219 x 2438 [mm]
- Certified acc. to EN 60825-4 & EN 12254
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Colour: | black |
|---|---|
| Properties: | both-sides usable |
| Protection Class / Norm: | EN 60825-4 |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| 780-1400nm | Iavg = 480 kW/m² / I0,max = 960 kW/m² | T2 |
| 9000-11000nm | Iavg = 615 kW/m² / I0,max = 1,23 MW/m² | T2 |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | – | D AB9 + IR AB4 + M AB6Y |
| >315 - 1050 | – | D AB8 + IR AB9 + M AB10 |
| >1050 - 1400 | – | D AB7 + IR AB9 + M AB10 |
| >1400 - 25000 | – | D AB5 |
