laser safety filter P1E07

The Laser and Glare Protection Filter P1E07 is a greenish brown absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a good daylight transmission of about 28%. The laser safety filter laservision P1E07 is CE certified and available in frame style F18, F22, F42 and F29. It is especially suitable for blue/green and red laserpointers and similar laser sources. Please calculate required protection levels before using laser safety filters and compare with the filter provided.

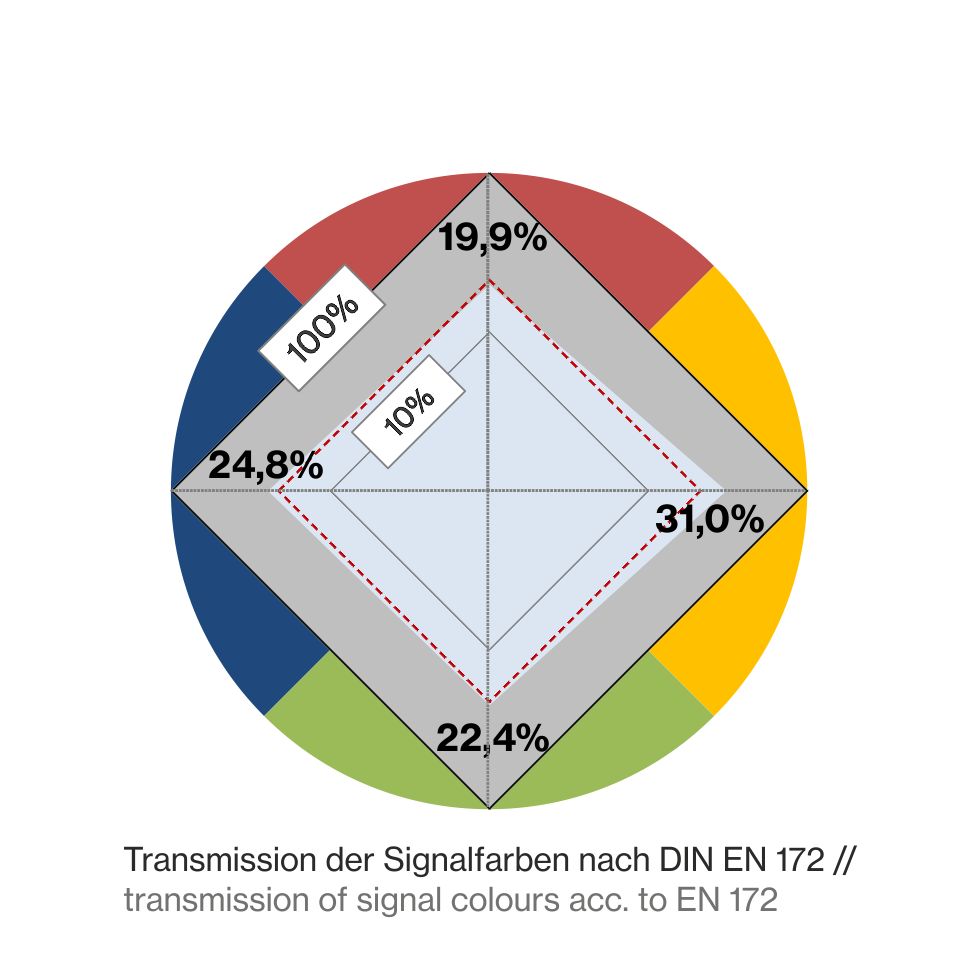

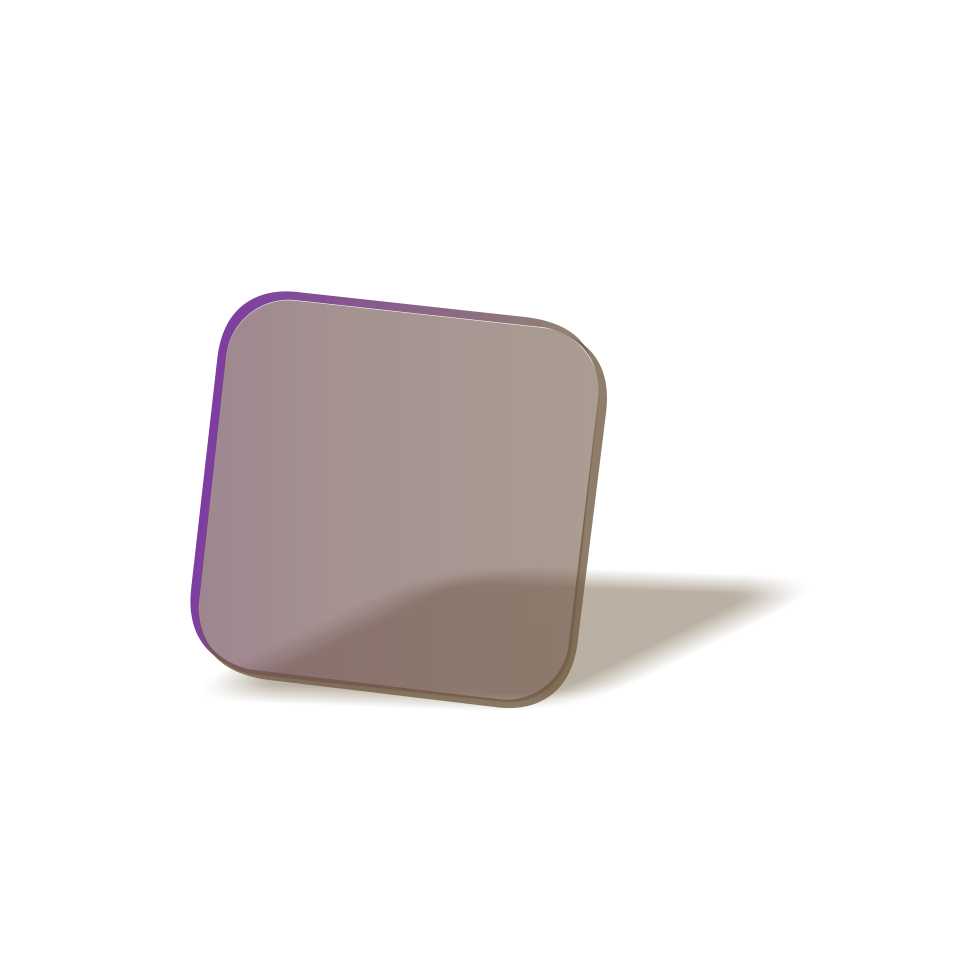

Filter sample Filter curve Color view

A detailed description to the above mentioned filter curve and color view can be found here

Highlights

LB Protection levels acc. to EN 207
RB Protection levels acc. to EN 208
Especially suitable for blue, green and red laser pointers

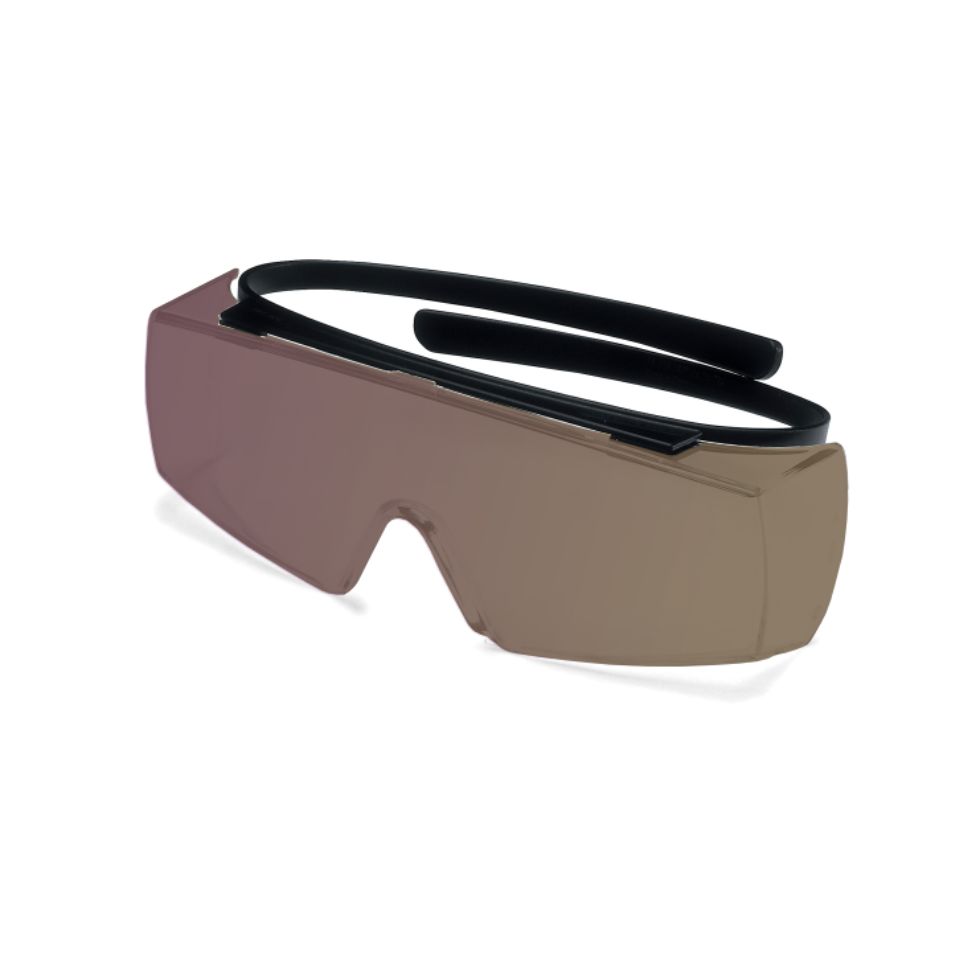

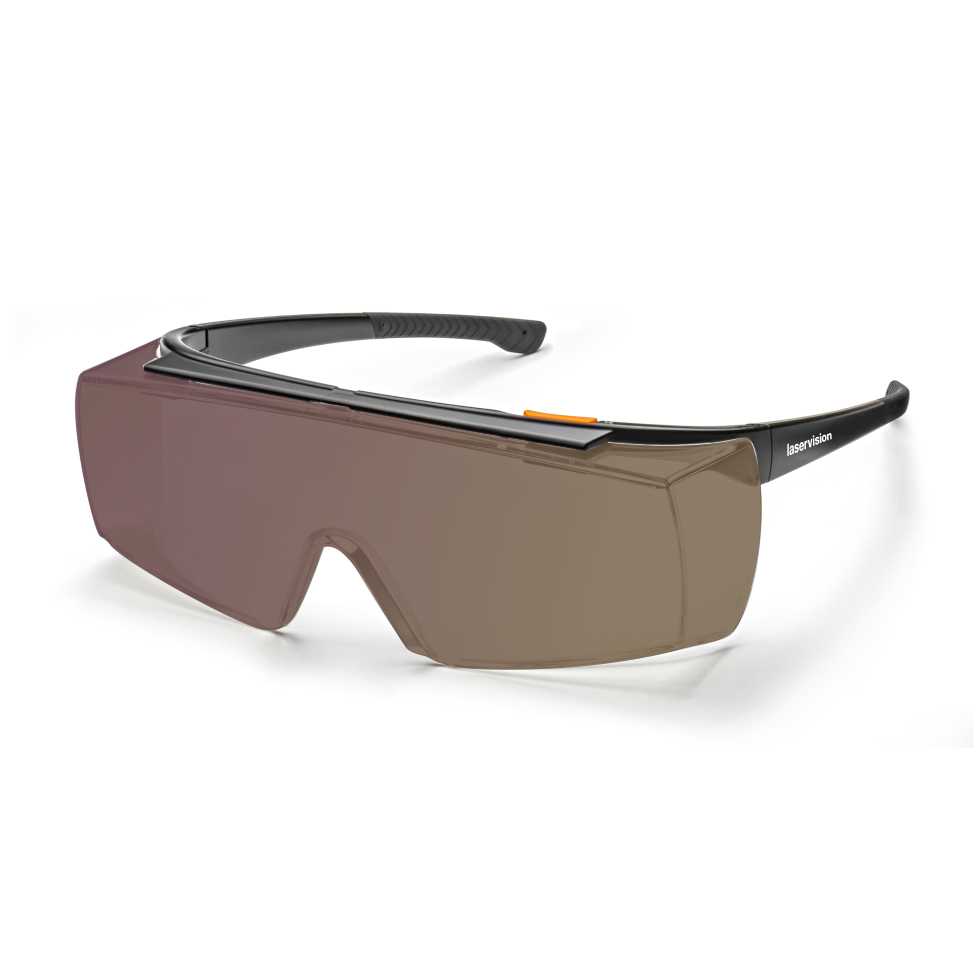

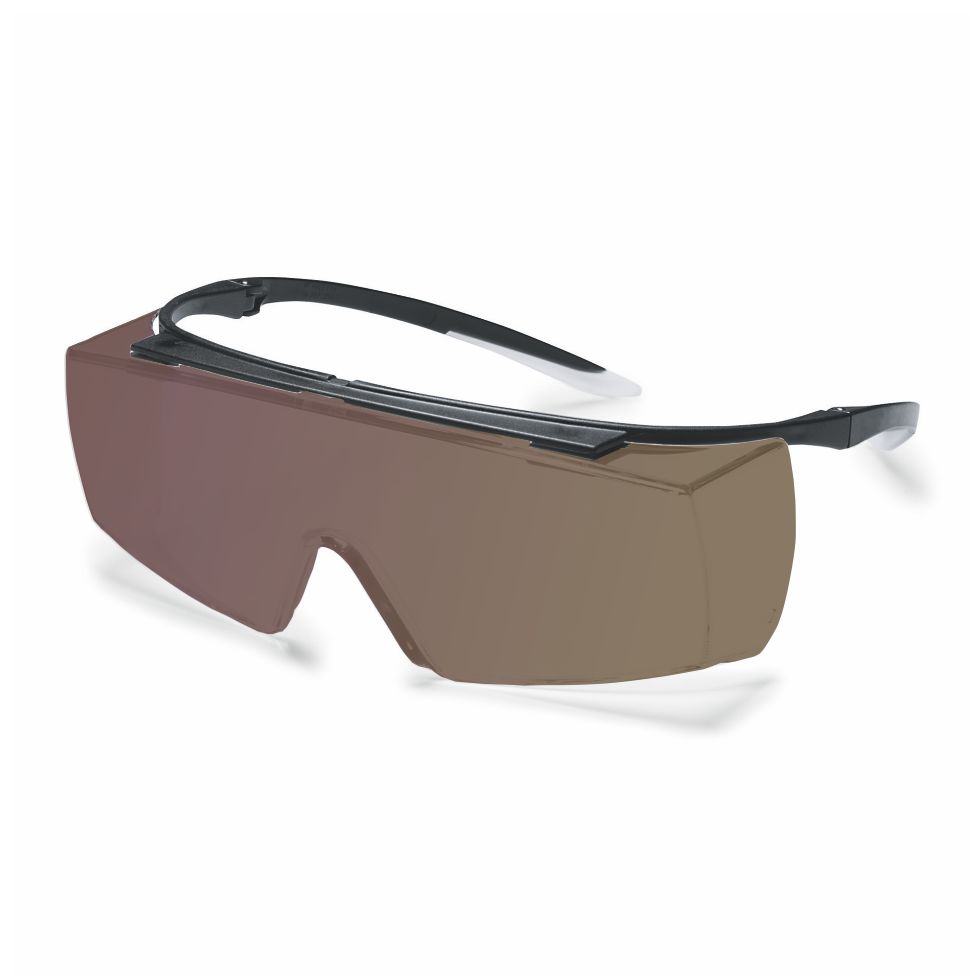

As OTG in Frame style F18/F22/F42 and with fram F29 available
Good colour view and 28% VLT

Technical Data

Protection Effect	Full-/Alignment Protection
Color	greenish brown
Filter Material	Plastic
Filter Technology	Absorption Filter
Certification	CE
VLT (approx.)	28 %
Visual Brightness	good
Color View	good
Filter Thickness	approx. 2 mm

Available laser protection eyewear with filter P1E07
