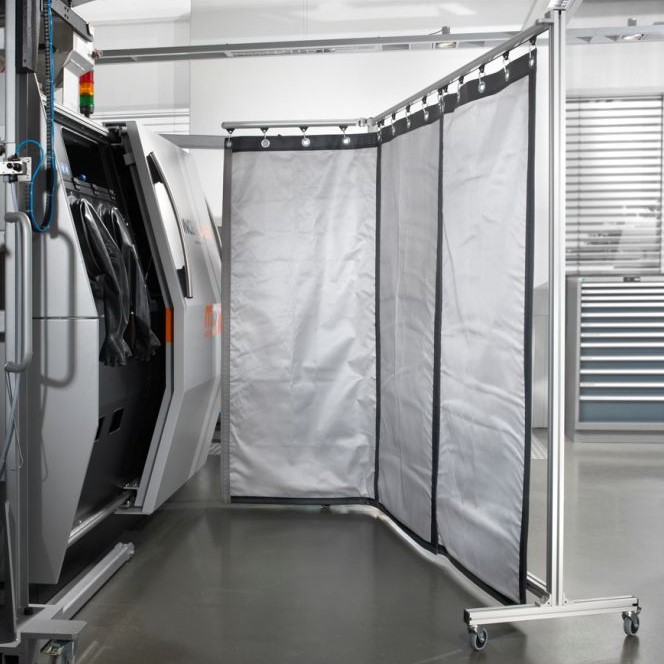

Laser safety curtain SHELTER-NG

For high-power laser applications, the SHELTER-NG multilayer laser safety curtain (BC1.F1P01) can be used. This curtain is based on our proven, coated silicate fabric. The individual curtain panels are joined together by means of Velcro/flap tape (standard) or other connectors (e.g. swivel connectors), so that even larger continuous curtains can be realized. The modular design has, among other things, the advantage that in case of damage only the damaged modules have to be replaced and not the complete shielding. The curtain is certified according to EN 60825-4 and has tested protection levels according to EN 12254.

Highlights

Laser safety curtain SHELTER-NG

  • Laser safety curtain certified according to EN 60825-4
  • Tested protection levels according to EN 12254
  • Can be used on both sides
  • Color: silver
  • Standard sizes up to (WxH) 1,800 x 3,500 mm
  • Connection of the modules with Velcro tape (standard)
  • Standard mounting via eyelets on the top edge (rail systems, steel cable, roller)
  • Length of standard curtains is adjusted according to the customer's needs
  • Maximum customized dimensions (WxH): 2,700 x 3,500 mm
  • Various customized connectors possible
  • Customized special shapes and cutouts possible

Highlights

  • Laser safety curtain certified according to EN 60825-4
  • Tested protection levels according to EN 12254
  • Can be used on both sides
  • Color: silver
  • Standard sizes up to (WxH) 1,800 x 3,500 mm
  • Connection of the modules with Velcro tape (standard)
  • Standard mounting via eyelets on the top edge (rail systems, steel cable, roller)
  • Length of standard curtains is adjusted according to the customer's needs
  • Maximum customized dimensions (WxH): 2,700 x 3,500 mm
  • Various customized connectors possible
  • Customized special shapes and cutouts possible

Laser safety curtain SHELTER-NG

Individual laser safety curtain SHELTER-NG

We are also happy to manufacture laser safety curtains individually for you. For further information please click here:

learn more

Laser safety curtain SHELTER-NG in standard sizes

laser safety curtain SHELTER-NG
available standard sizes (mm): 1800 x 2500
The multi-layer laser safety curtain BC1.F1P01 has a width of approx. 900mm or 1800mm and a length of 2000mm up tp 3500mm. The single segments of this curtain can be connected together with Verlo strap. More information here
