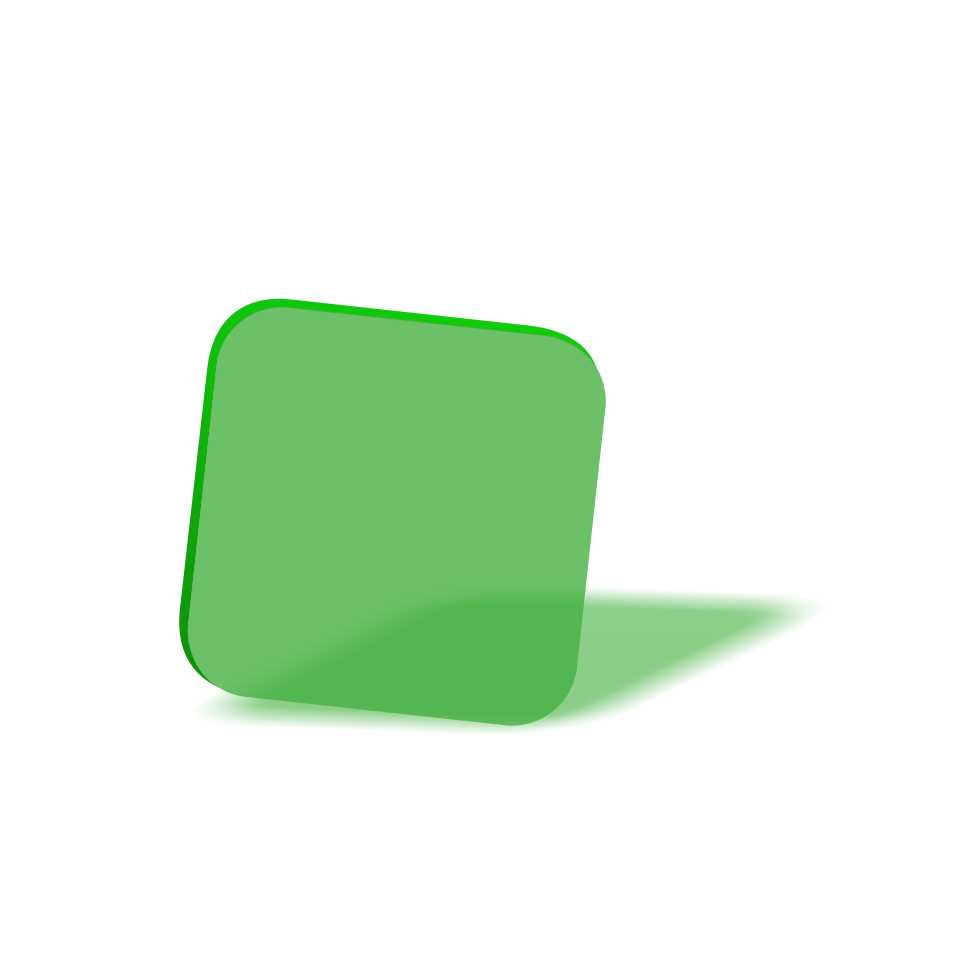

The Laser Safety Filter P1H02 is a light green absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a good daylight transmission of 42% and therefore a good visual brightness as well. The laser safety filter laservision P1H02 is CE certified and available in the frames F18, F22, F27 and in the F29 sporty frame. It is especially suitable for Alignment of different laser diodes and full protection against 808nm laser diodes. Please calculate required protection levels before using laser safety filters and compare with the filter provided.
A detailed description to the above mentioned filter curve and color view can be found here
Highlights
- Full (LB) and Alignment Protection (RB) acc. to EN 207/208
- Especially suitable for red and 808nm laser diodes
- Available in the frames F18, F22, F27 and F29
- Good visual brightness (42%) and good colour view
Technische Daten
| Protection Effect | Full-/Alignment Protection |
| Color | light green |
| Filter Material | Plastic |
| Filter Technologie | Absorption Filter |
| Certification | CE, UKCA |
| VLT (approx.) | 42% |
| Visual Brightness | good |
| Color View | good |
| Filter Thickness | approx. 2 mm |
Available laser protection eyewear with filter P1H02
