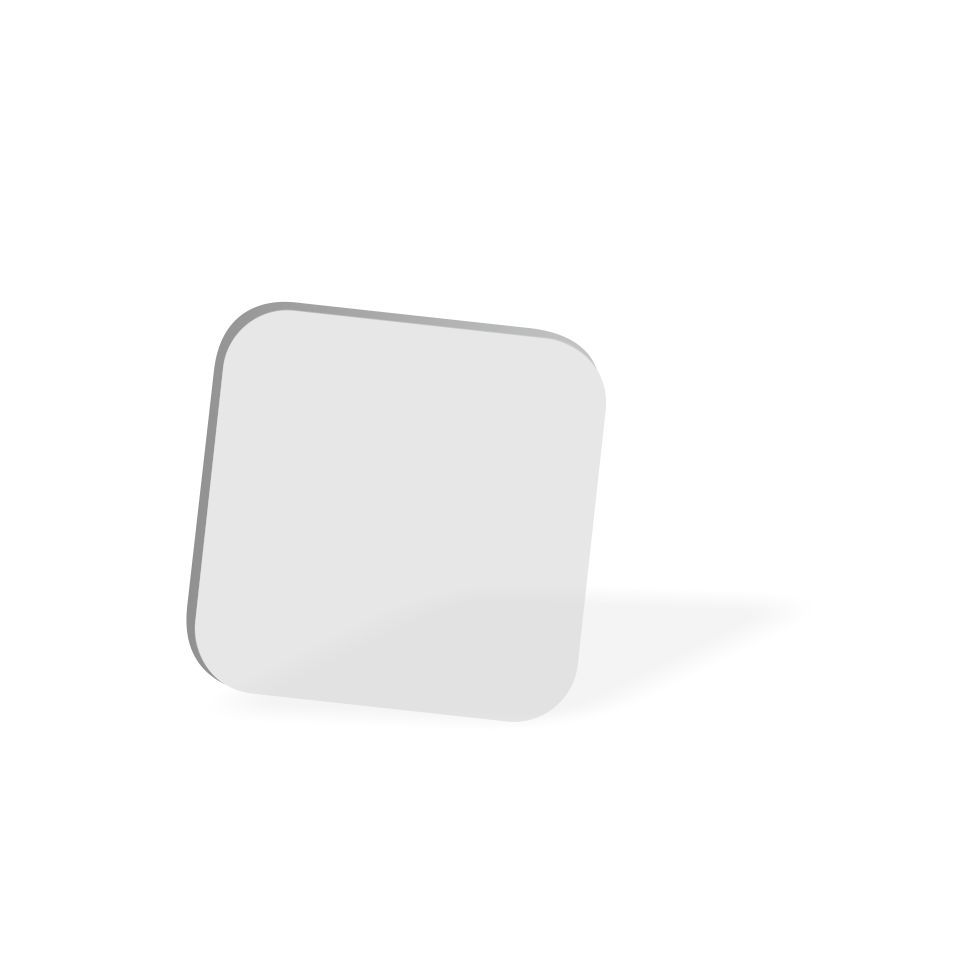

The Laser Safety Filter P1D01 is a clear, colorless absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of 90% with unrestricted colour vision and the visual brightness is very good. The laser safety filter laservision P1D01 is CE certified and available in two different frame styles. It is especially suitable for CO2 lasers. Please calculate required protection levels before using laser safety filters and compare with the filter provided. It is available in the frames R02 and R14.

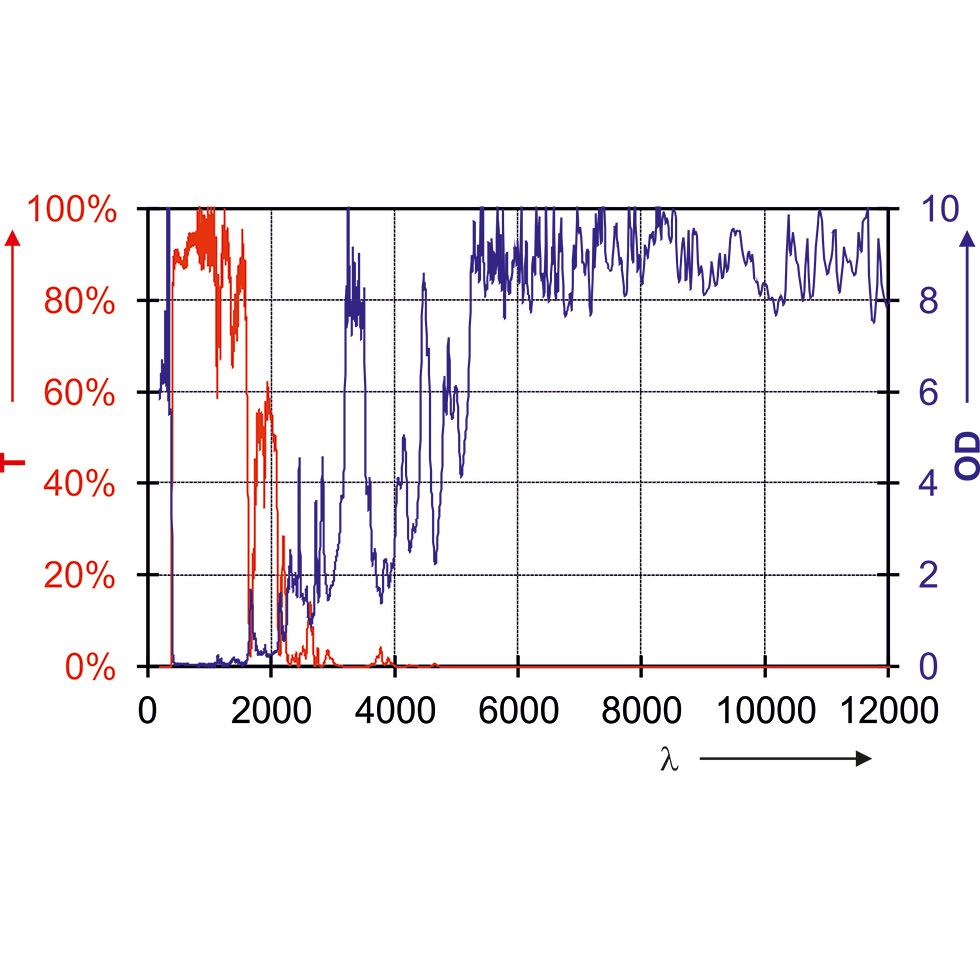

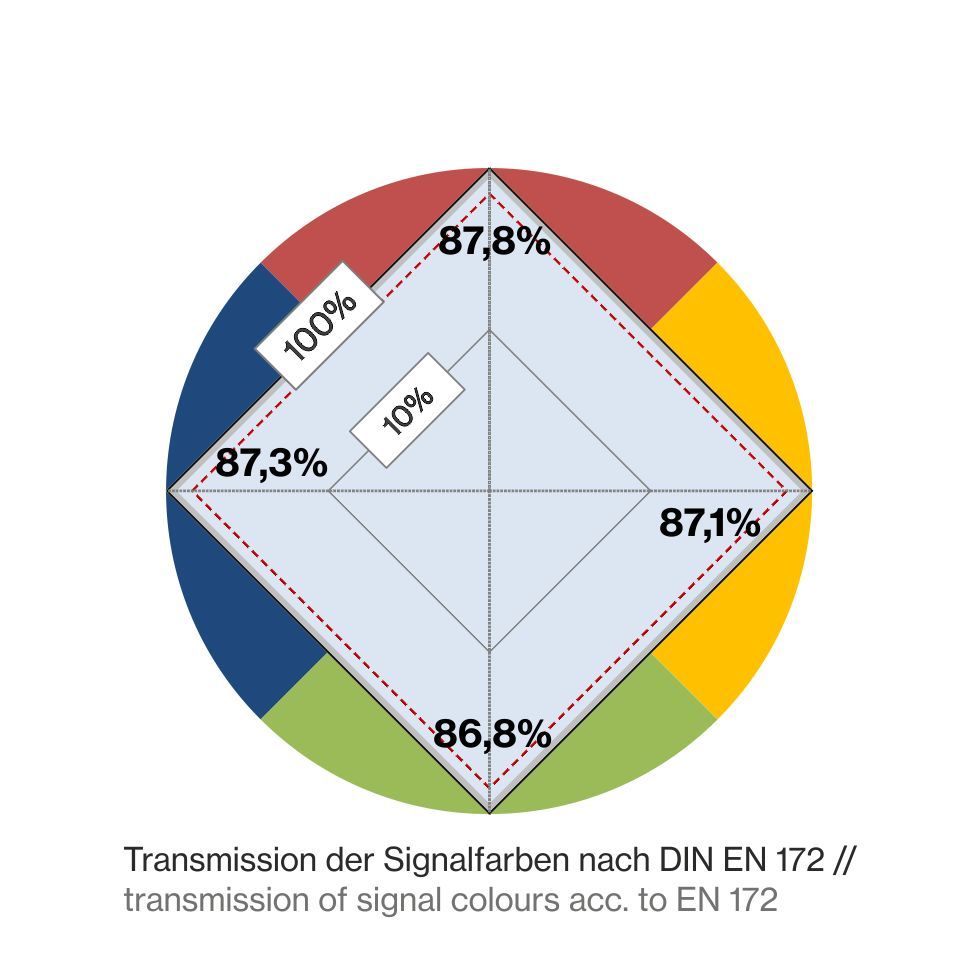

A detailed description to the above mentioned filter curve and color view can be found here
Highlights
- LB Protection ratings acc. EN 207
- D LB5 Protection Level for CO2-Laser acc. EN 207
- Low weight
- Unrestricted color view and 90% VLT
- Filter for CO2-surgical lasers
- Available in the frames R02 and R14
Technical Data
| Protection Effect | Full Protection |
| Color | Clear |
| Filter Material | Plastic |
| Filter Technology | Absorption Filter |
| Certification | CE |
| VLT (approx.) | 90% |
| Visual Brightness | excellent |
| Color View | excellent |
| Filter Thickness | approx. 5 mm |
Available laser protection eyewear with filter P1D01

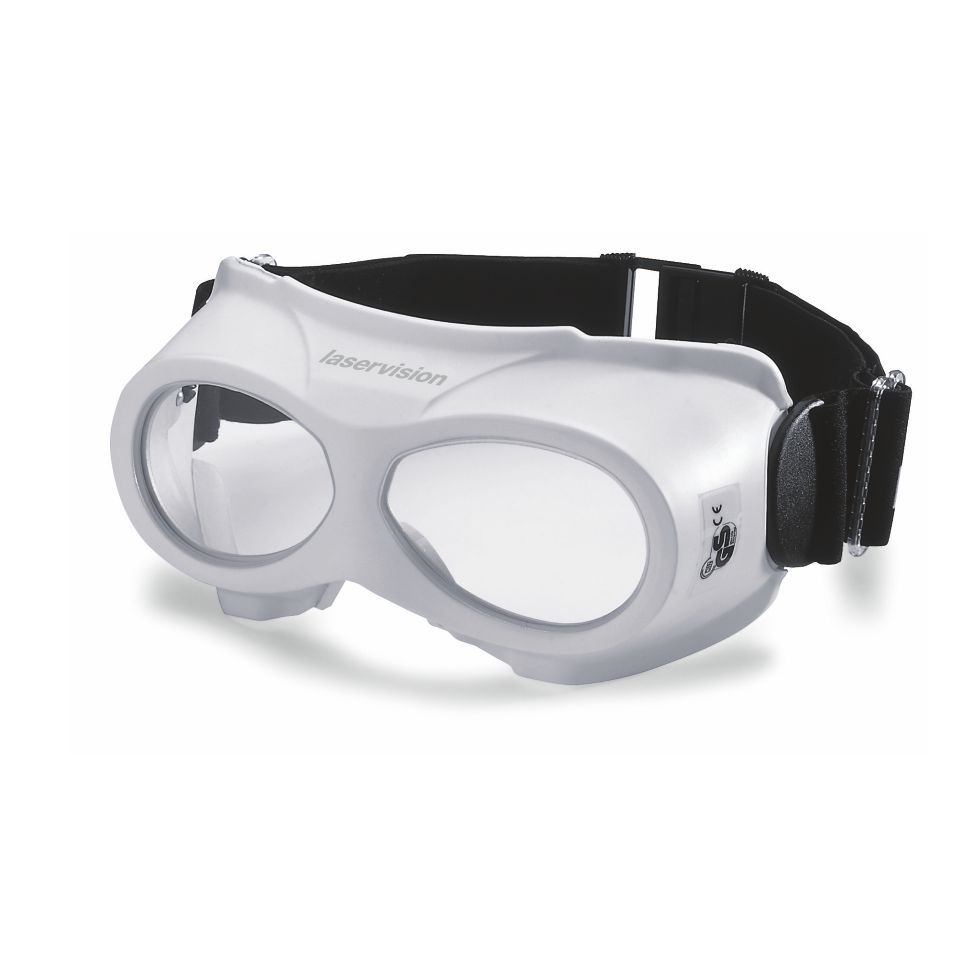

laser safety goggle R14P1D01A
The laservision laser safety goggle R14.P1D01.1004 with an aired foam frame is a goggle with colorless filter. It has high protection levels around the UV range and a D LB5 protection level for CO2 lasers. More information here
laser safety goggle R14P1D01F
The laservision laser safety goggle R14.P1D01.1002 with foam frame (F) with a colorless filters has high protection levels in the UV range as well as a D LB5 protection level for CO2 lasers. More information here
laser safety goggle R14P1D01L
The laservision laser safety goggle R14.P1D01.1003 with lip seal and colorless filte offers a high protection levels around the UV range and a D LB5 protection level for CO2 lasers. More information here
laser safety spectacle F20P1D01
Laser safety goggle F20P1D01 has high protection levels in the UV range and a D LB5 protection level for CO2 lasers. Buy from laservision!
