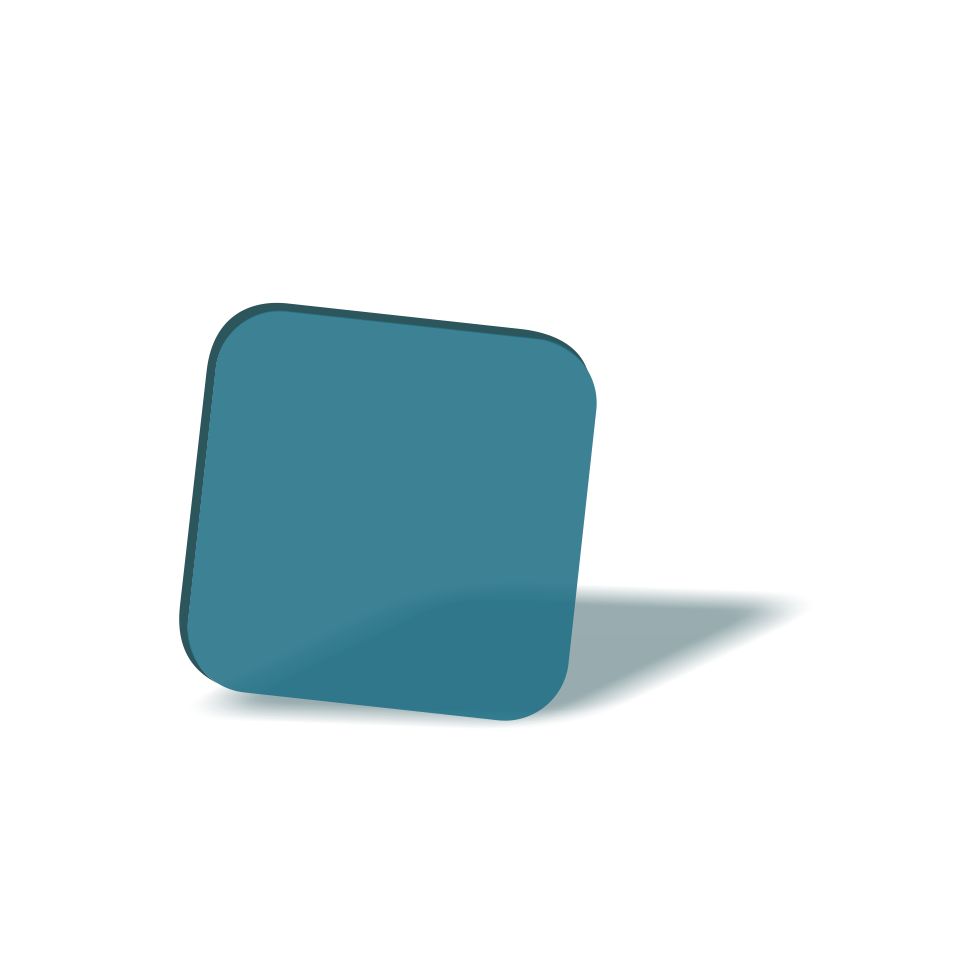

laser safety filter P1M01
The Laser Safety Filter P1M01 is a blue absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of 35% but features a much better colour recognition than the commonly used green filters. Apart from only a few gaps the filter is completely CE certified over the whole wavelength range from 180nm to 11500nm and in the frames F18, F22, F42 and F46 available. Additionally the filter P1M01 features M-rating for ultrashort laser pulses. Please calculate required protection levels before using laser safety filters and compare with the filter provided.

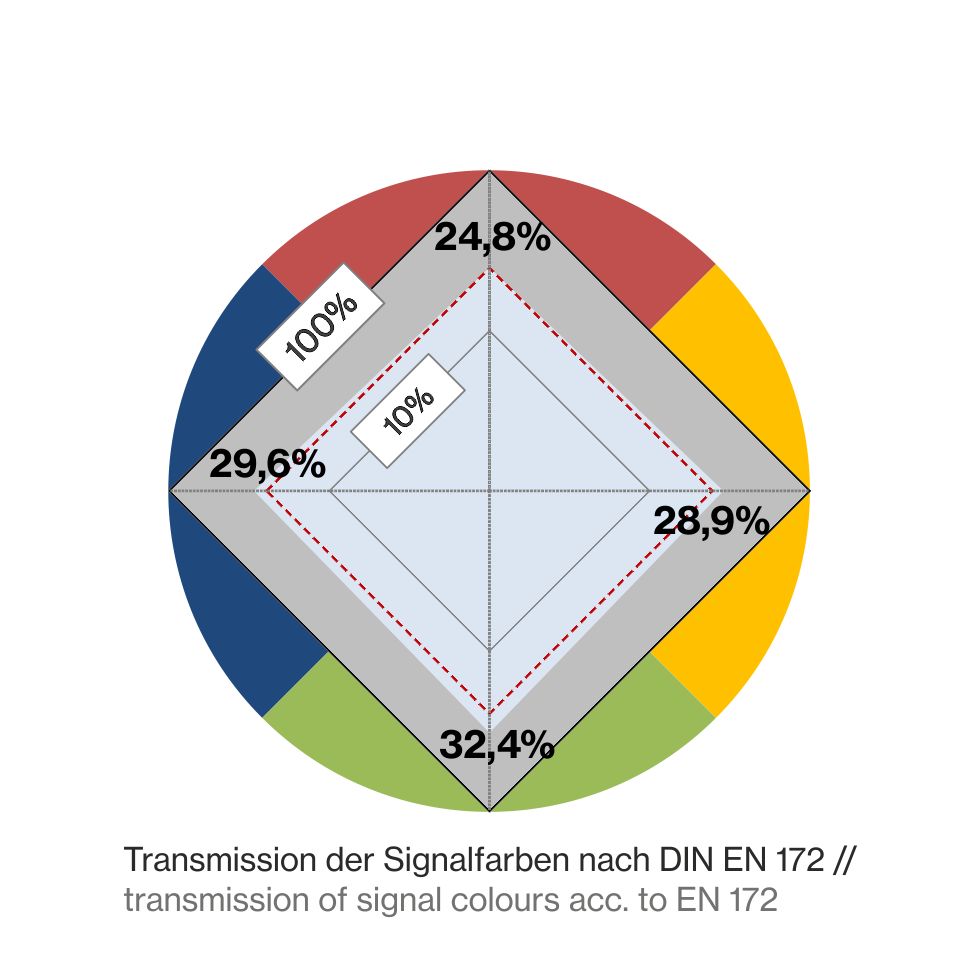

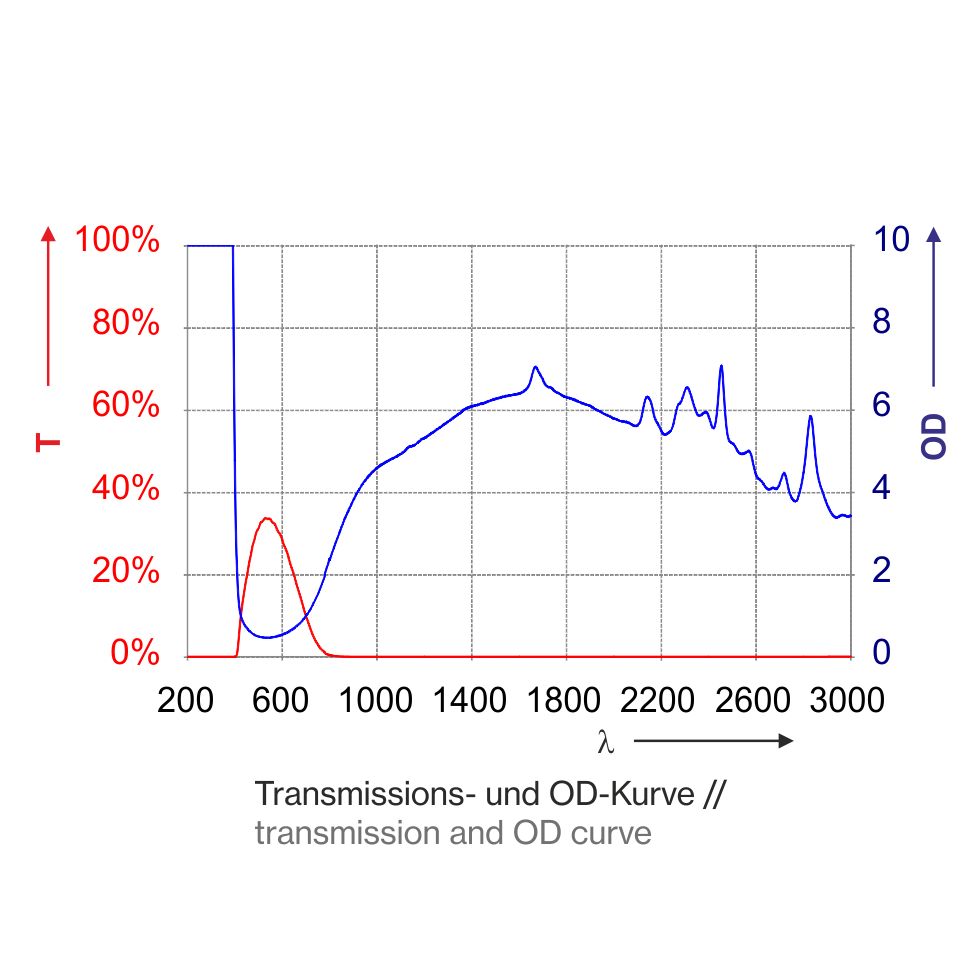

A detailed description to the above mentioned filter curve and color view can be found here
Highlights
- Full Protection (LB) acc. to EN 207
- M-protection rating
- Available with F18, F22, F42 and F46 OTG frames
- Anti-Scratch standard coating
- Protection level 920-1400nm DIRM LB4
Technical Data
| Protection Effect |
Full Protection |
| Color |
blue |
| Filter Material |
Plastic |
| Filter Technology |
Absorption Filter |
| Certification |
CE, UKCA |
| VLT (approx.) |
35 % |
| Visual Brightness |
good |
| Color View |
very good |
| Filter Thickness |
ca. 2 mm |
Available laser protection eyewear with filter P1M01

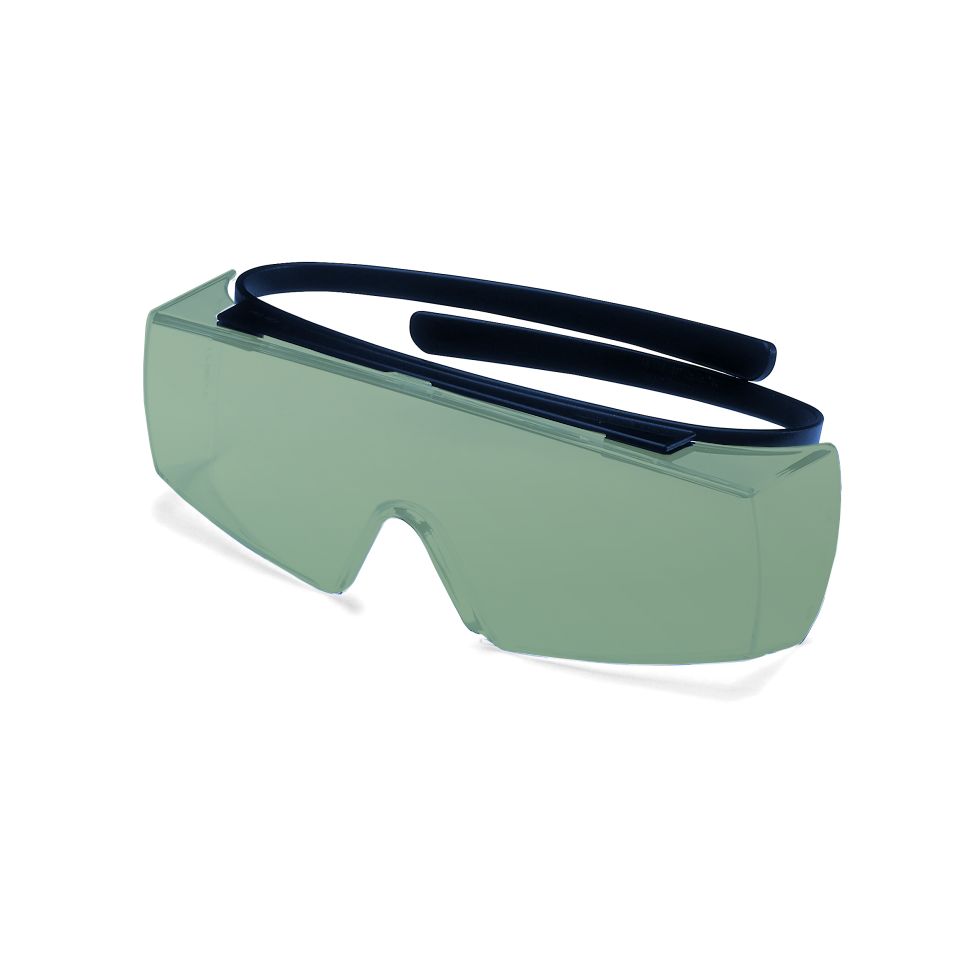

laser safety spectacle F18P1M01

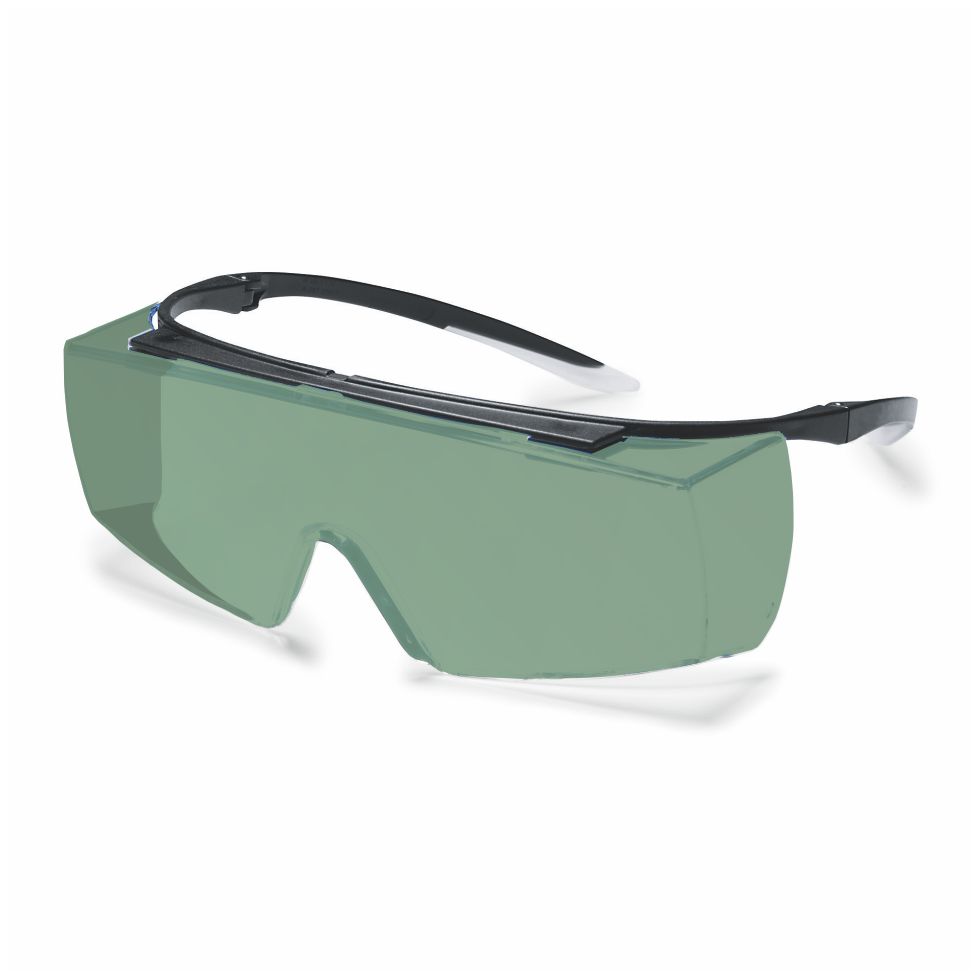

laser safety spectacle F22P1M01

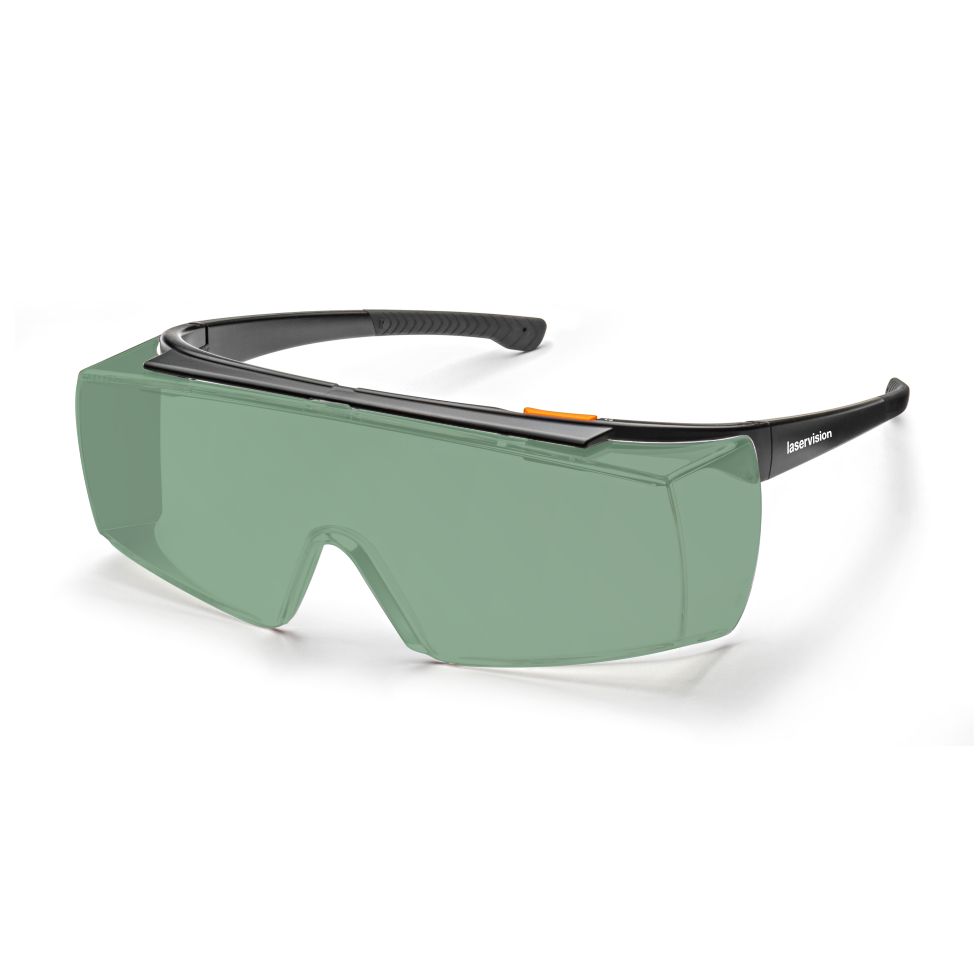

laser safety spectacle F42P1M01
