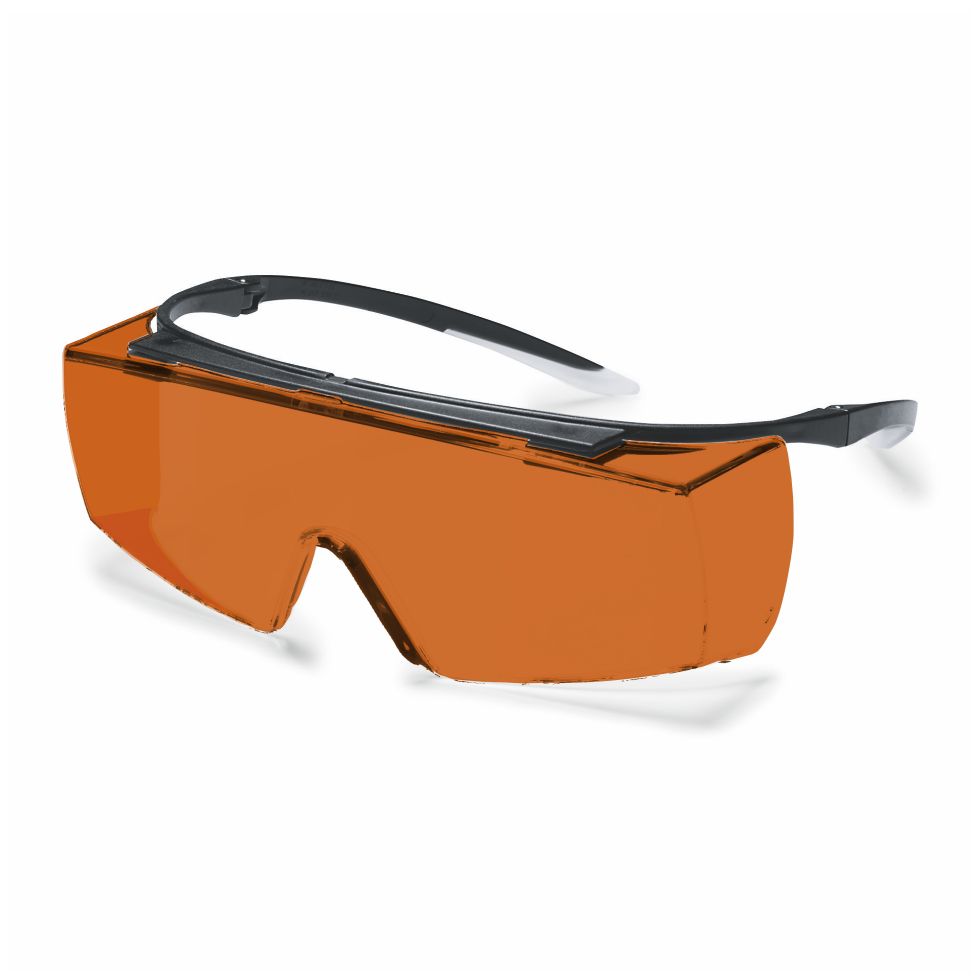

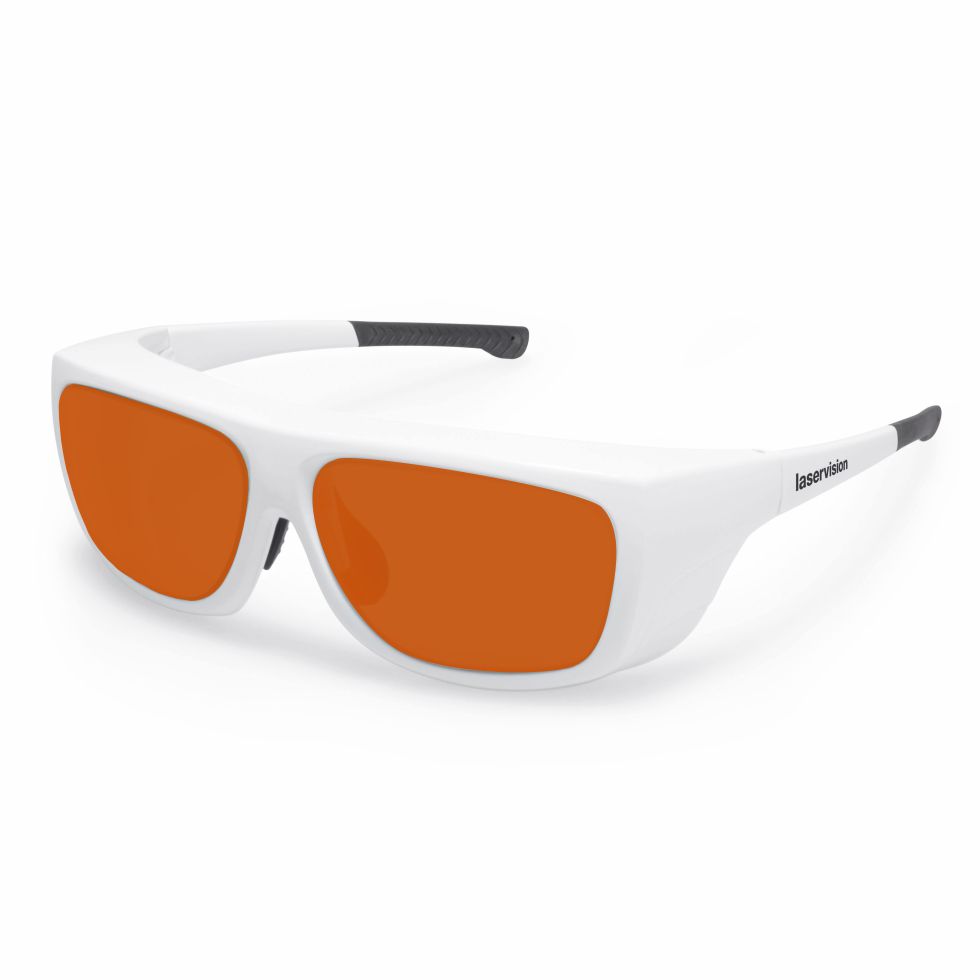

The laser safety filter P1E01 is an orange absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of 40% and therefore a good visual brightness. The colour recognition is slightly limited. The laser safety filter laservision P1E01 is CE certified and available in four different frame styles: F18, F20, F22, F42 and F46. It is also available in the laser safety magnifier (F27). It is especially suitable for UV-lasers and Nd:YAG lasers at 355nm or 532nm diodes. Please calculate required protection levels before using laser safety filters and compare with the filter provided.
A detailed description to the above mentioned filter curve and color view can be found here
Highlights
- LB Protection levels acc. to EN 207
- Especially suitable for UV and Nd:YAG Lasers (266,355nm,532nm)
- Fluorescence effect for 532nm laser for alignment
- Good visual brightness and 40% VLT
- Good for gas and UV-Excimer laser
- Available in the frames: F18, F20, F22, F42 and F46
- Available also in the laser safety magnifier (F27)
Technical Data
Protection Effect | Full Protection |
Color | Orange |
Filter Material | Plastic |
Filter Technology | Absorption Filter |
Certification | CE, UKCA |
VLT (approx.) | 40 % |
Visual Brightness | good |
Color View | sufficient |
Filter Thickness | approx. 2 mm |
