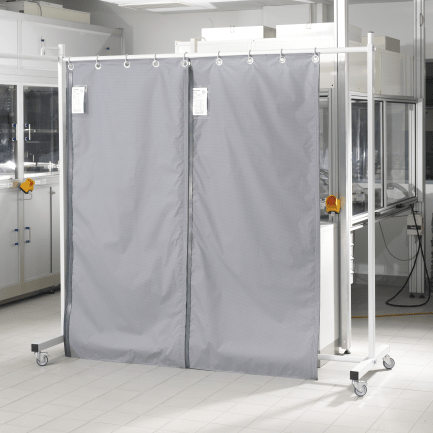

laser safety curtain SHELTER-CR

In order to fulfill requirements coming in particular from the electronic component manufacturing sector laservision has developed the SHELTER-CR as a clean-room-fit laser safety curtain. This curtain is a new version of the well-known SHELTER-NG and is a perfect match to the requirement of that market. It features an additional cladding made of white ESD-compliant textile material. This material is certified acc. to DIN EN 1149-1 (electrostatic properties) and has a surface resistance of <2,5GOhm.

This cover is stitched on resp. around the SHELTER-NG structure with special yarn, which ensures clean-room capability. The new, single layer laser safety curtain (BC7) stands out in the same way due to high flexibility in his configuration. For that purpose standard panels of 90cm width are available with 2m or 2,5m height resp. These modules can be connected on both sides by a special elastomer band. Alternatively they can be ordered stitched together and cutted to any width and length to cover the individual dimension of a window or door. Panels can be mounted with overlapping eyelets on the carrier system (cable, rail or rod).

The multi layer laser safety curtain SHELTER-CR (BC6*) is certified for the wavelength range of 180-11000 acc. DIN EN 60825-4 (CE) and DIN EN 12254 (incl. M-protection ratings). The light version (BC7*) is certified just acc. DIN EN 12254.



Highlights

  • Certified acc. to EN 12254 and/or EN 60825-4 (CE)
  • Lining tissue certified acc. EN 1149-1 (ESD)
  • Surface resistance <2,5 GOhm
  • 2 Standard length (2m and 2,50m)
  • Standard width 900mm
  • Connection of modules via bayonet joint
  • Colour: white
  • Mounting options: rod, cable or rail
  • custom dimensions as option
  • Wavelength range: 180nm up to 11000nm
