laser safety filter T1E03

The laser safety filter T1E03 is a dark red absorbing mineral glass filter without additional coating. The protection is based on absorption of the laser light within the bulk material. The filter T1E03 has a very low daylight transmission of approx. 5% and a restricted colour recognition. The laser protection filter is especially suitable for Argon-Ion and frequency converted Nd:YAG lasers. The filter T1E03 is in the frames R01, R14 and R17. Please calculate required protection levels before using laser safety filters and compare with the filter provided.

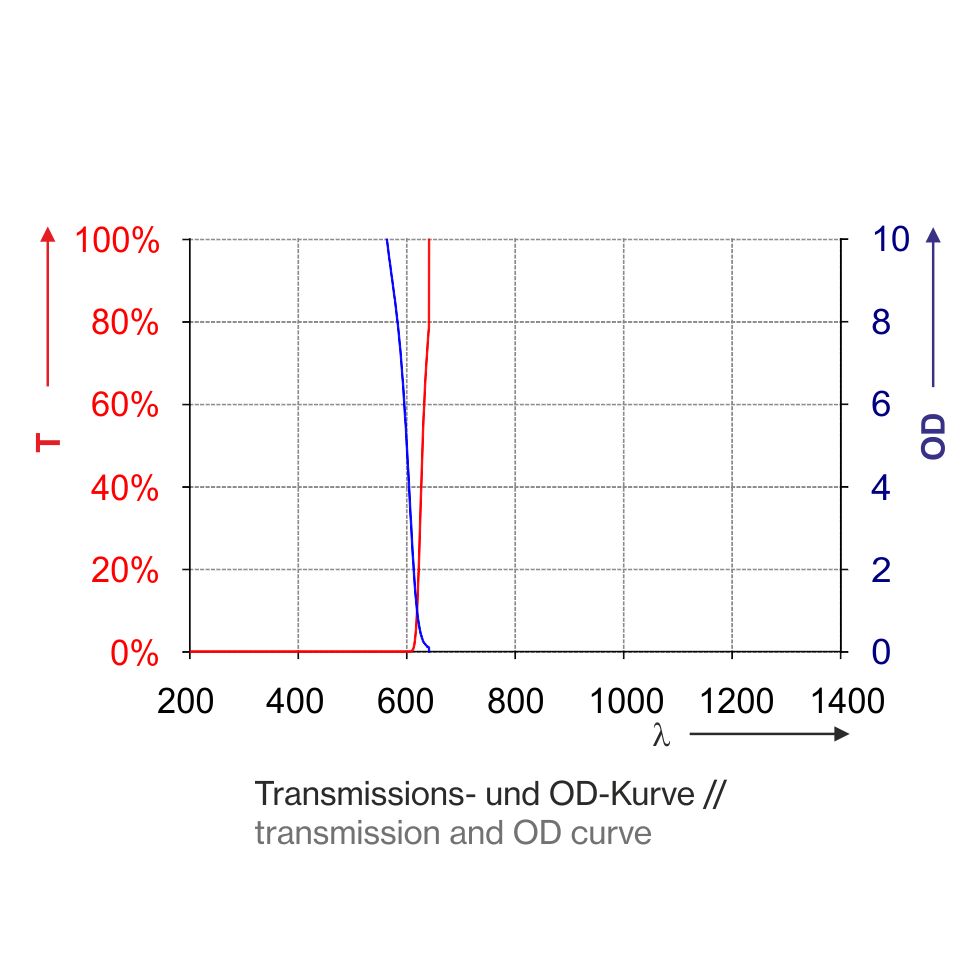

Filter sample Filter curve Color View

A detailed description to the above mentioned filter curve and color view can be found here

Highlights

Protection levels acc. to EN 207
Application: Argon and frequency converted Nd:YAG lasers
Protection level of D LB9 at 180 - 315nm
3 different frame styles available: R01, R14 and R17

Technical Data

Protection Effect	Full Protection
Color	red
Filter Material	Mineral glass
Filter Technology	Absorption Filter
Certification	CE
VLT (approx.)	5%
Visual Brightness	sufficient
Color View	restricted
Filter Thickness	approx. 3-4 mm*

Available laser protection eyewear with filter T1E03
