laser safety filter T1Q05

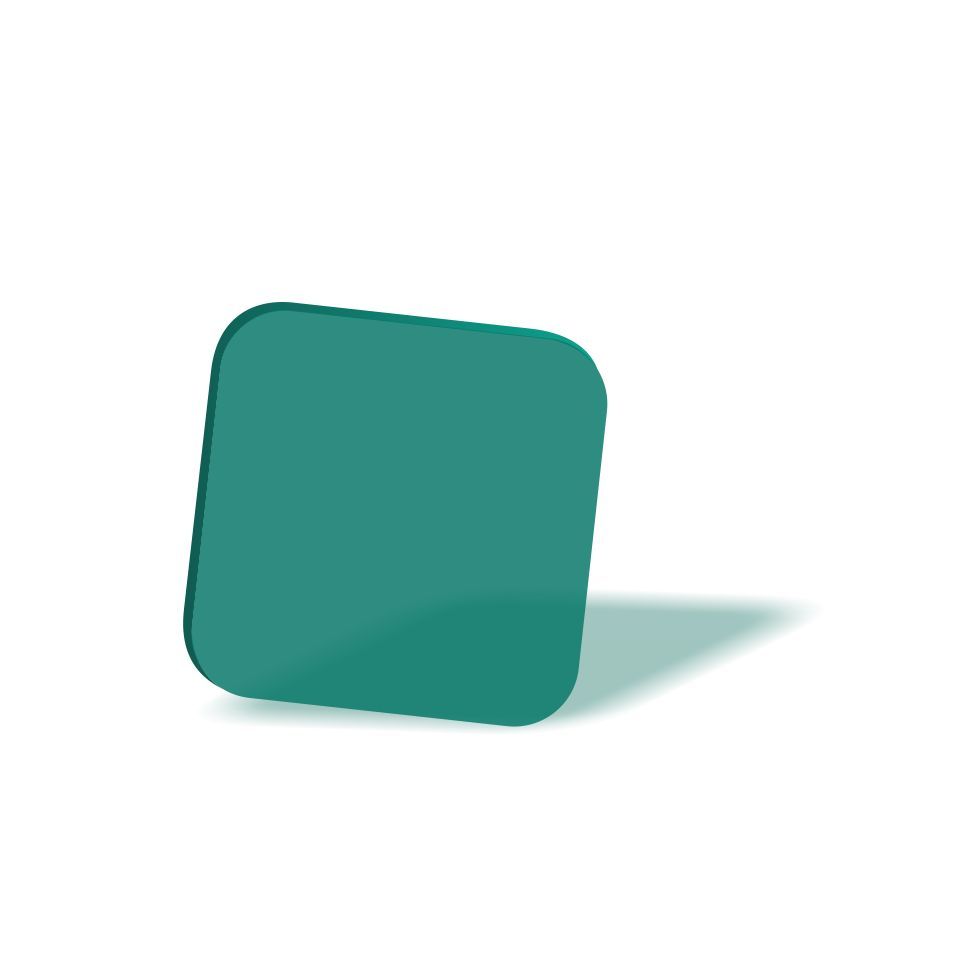

The laser safety window T1Q05 is a green absorbing mineral glass filter without additional coating. The laser protection is based on absorption of the laser light within the bulk material. Laser safety eyewear with the laser protection filterT1Q05 has a daylight transmission of approx. 32% and a broad certified wavelength range with high protection rating incl. M-Rating for  disc- and CO2-Laser in the  NIR range as well as alignment protection at 660nm. The laser saftey filter is CE certified and available in two different frames: R01 and R14. Please calculate required protection levels before using laser safety filters and compare with the filter provided.

Highlights

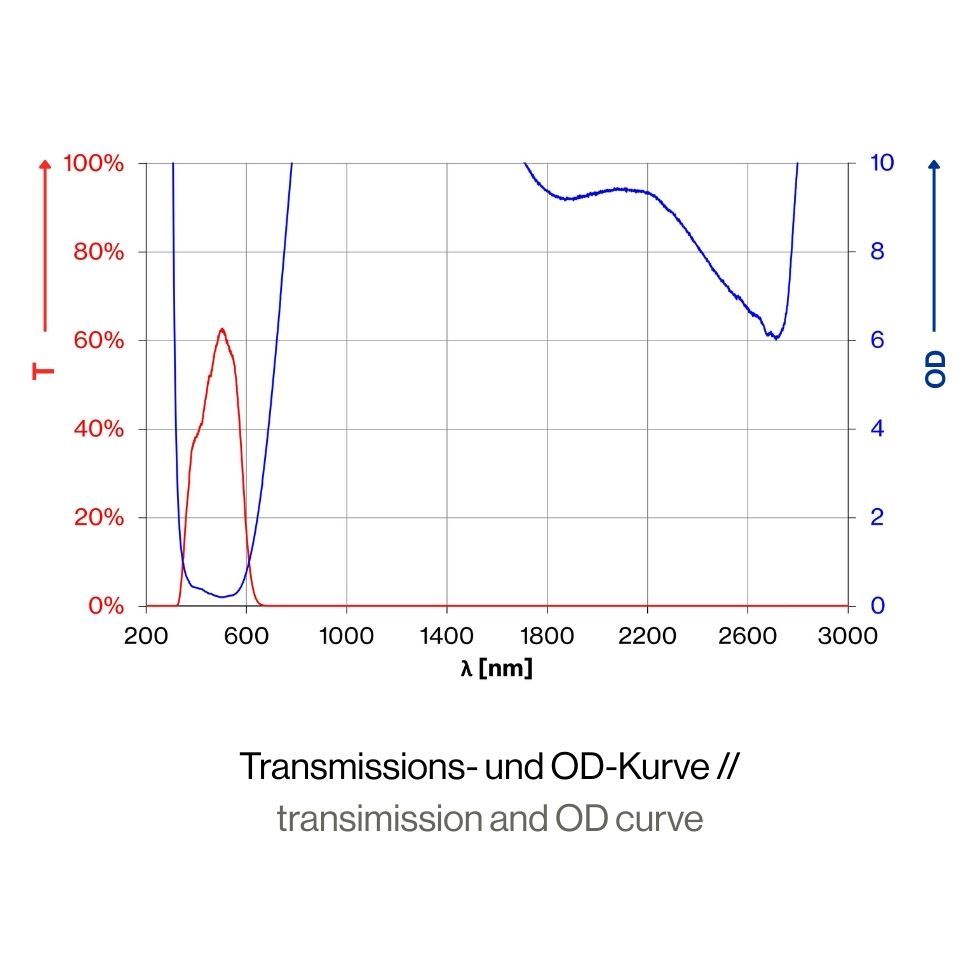

  • Protection levels certified from 1025-1320nm acc.  EN 207
  • ideal for , Nd:YAG, fibre and disc laser
  • 2 different frame styles available: R01 and R14
  • Alignment protection at 660nm for stream tracking systems
  • Different wearing options

Technical Data

Protection Effect Full Protection
Color green
Filter Material Mineral glass
Filter Technology Absorption Filter
Certification CE
VLT (approx.) approx. 32%
Visual Brightness good
Color View good
Filter Thickness ca. 8-9 mm*



 Available laser protection eyewear with filter T1Q05

The laser safety window T1Q05 is a green absorbing mineral glass filter without additional coating. The laser protection is based on absorption of the laser light within the bulk material. Laser... read more »
Close window
laser safety filter T1Q05

The laser safety window T1Q05 is a green absorbing mineral glass filter without additional coating. The laser protection is based on absorption of the laser light within the bulk material. Laser safety eyewear with the laser protection filterT1Q05 has a daylight transmission of approx. 32% and a broad certified wavelength range with high protection rating incl. M-Rating for  disc- and CO2-Laser in the  NIR range as well as alignment protection at 660nm. The laser saftey filter is CE certified and available in two different frames: R01 and R14. Please calculate required protection levels before using laser safety filters and compare with the filter provided.

Highlights

  • Protection levels certified from 1025-1320nm acc.  EN 207
  • ideal for , Nd:YAG, fibre and disc laser
  • 2 different frame styles available: R01 and R14
  • Alignment protection at 660nm for stream tracking systems
  • Different wearing options

Technical Data

Protection Effect Full Protection
Color green
Filter Material Mineral glass
Filter Technology Absorption Filter
Certification CE
VLT (approx.) approx. 32%
Visual Brightness good
Color View good
Filter Thickness ca. 8-9 mm*



 Available laser protection eyewear with filter T1Q05

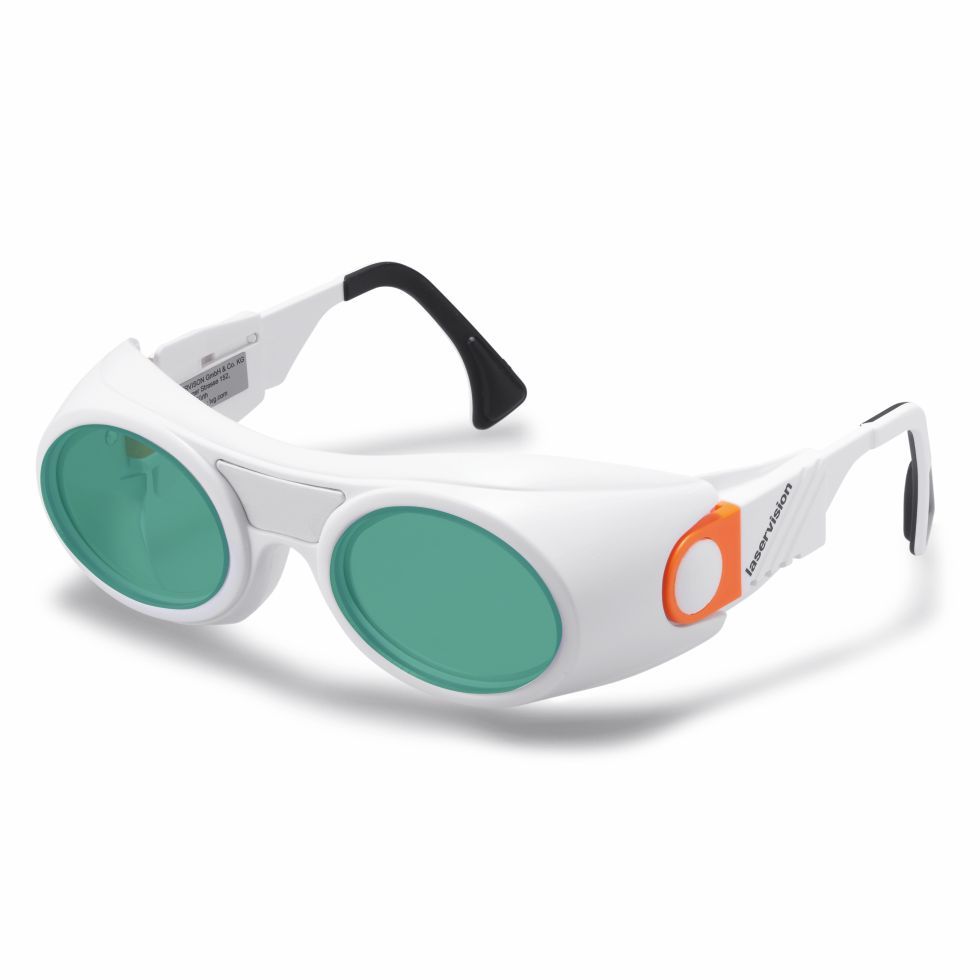

laservision Laserschutzbrille R01 mit Laserschutzfilter T1Q05 laser safety eyewear R01T1Q05
The laservision Laser safety eyewear R01.T1Q05.1001 offers full protection within the NIR and IR-range (between 1025-1320nm as well as...
€585.00 *

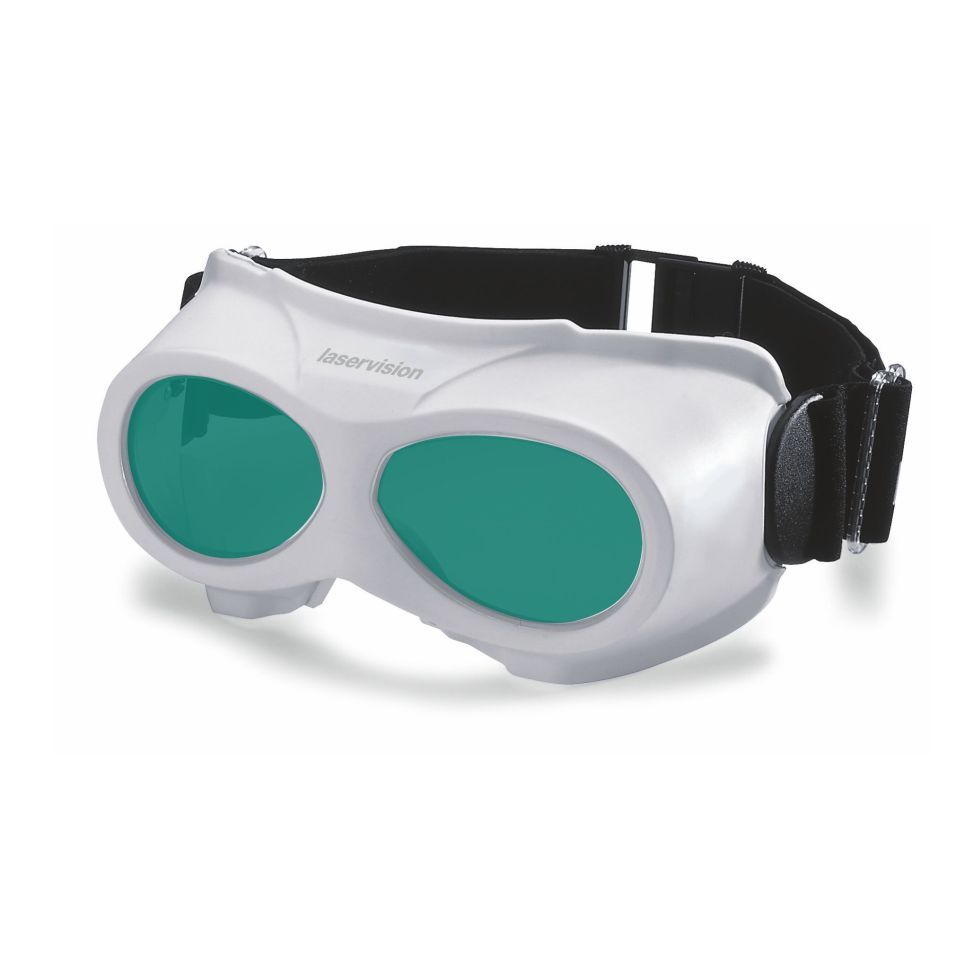

laservision Laserschutzbrille R14 mit Filter T1Q05 laser safety spectacle R14T1Q05
The laservision Laser safety eyewear R14.T1Q05.1002 with foam frame offers full protection within the NIR and IR-range (between...
€637.00 *
laservision Laserschutzbrille R14 mit Filter T1Q05 laser safety spectacle R14T1Q05
The laservision Laser safety eyewear R14.T1Q05.1003 with lip seal frame offers full protection within the NIR and IR-range (between...
€637.00 *
