Laser Safety



After the 20th century, that was considered the century of Electronics, the 21st century is the century of Photonics. In 1960, Theodore Maimam built the first apparatus using the principle of "Llight Amplification by Simulated Emission of Radiation". A principle that allows light to be generated with power debsities billions of times higher than the highest conventionally produced power or energy densities. Since than, the LASER has had an Characteristics of Optical Radiation unprecedented success story in technology.

Characteristics of Optical Radiation

Electromagnetic radiation is found as a natural phenomenon in almost all areas of daily life. Some examples are thermal radiation (in the form of warmth), x-rays and γ-rays emerging from radioactive decomposition. Electromagnetic radiation is also artificially generated by radio transmitters or mobile phones. It travels in waves like sound and is produced by the movement of charged particles. In contrast to sound, electromagnetic radiation does not need a medium in which to travel. Laser radiation – like all light – consists of electromagnetic radiation as well. Electromagnetic radiation within the range visible to the human eye is commonly called light.

After the 20th century, that was considered the century of Electronics, the 21st century is the century of Photonics. In 1960, Theodore Maimam built the first apparatus using the principle of "Llight Amplification by Simulated Emission of Radiation". A principle that allows light to be generated with power debsities billions of times higher than the highest conventionally produced power or energy densities. Since than, the LASER has had an Characteristics of Optical Radiation unprecedented success story in technology.

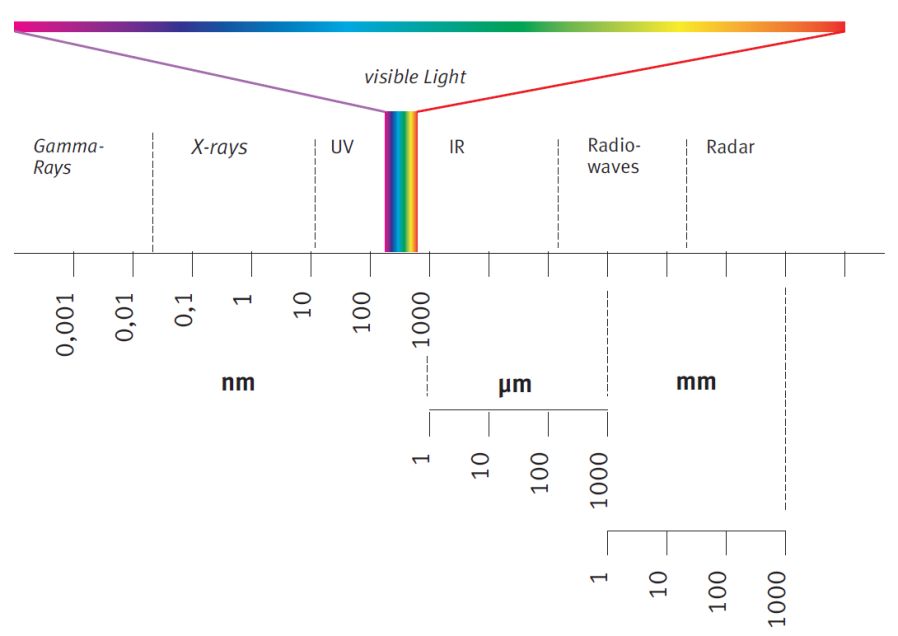

Spektrum-1-003



In this general sense light consists of electromagnetic radiation in the wavelength range between 380 and 780 nm (nm = nanometer = one billionth of a meter). This range is designated as the visible spectrum. When all wavelengths in the visible spectrum are emitted simultaneously, this is perceived as white light. When white light falls on an optically dispersive element such as a prism or birefringent filter the colours of the spectrum can be seen due to refraction. It starts at the short wave as the colour violet, turning to blue, green, than yellow and goes to the long wave, which appears as red. Beyond the long wave (red) of the spectrum is the near and far infrared range. Below the shortwave range (blue) is the ultraviolet range.

But the term Laser-‘light’ refers to a much broader range of the electromagnetic spectrum: between 150 nm up to 11000 nm, i.e. from UV-‘light’ up to far infrared ‘light.’

Function principle of a laser

A Lasers consist mainly of the following parts:

  1. the laser tube (resonator) with an active laser medium (e.g. a crystal, a gas, a liquid or a semiconductor)
  2. a mirror on both ends, one reflecting, the other partially reflecting (90 %)
  3. a pump source, e.g. a flashlight, an electron beam, a diode or a pump laser

To start the laser activity the atoms of the laser medium have to be stimulated by the pumping process. The electrons of the atoms are elevated to energetically higher levels. Falling back to a lower level they emit their energy in form of a photon which is the smallest energy quantum of electromagnetic radiation. These photons in turn stimulate other atoms. The amount of light is being continually increased in intensity as it oscillates back and forth be-tween the mirrors, creating an avalanche effect. A certain part of the photons pass through the partially reflecting/partially transmitting mirror and forms the laser beam.

Laser Operation Modes

Lasers differ not only with respect to wavelength or optical power from each other, but also in the way how the power is emitted. It is a relevant difference, if the power is emitted continuously (continuous wave operation - cw) or in form of pulses (long pulse, giant pulse / q-switched or mode-locked). In case of pulsed operation with low pulse repetition rate the peak power of each single pulse is the critical value. If the repetition rate inceases, the avarage power needs to be taken more and more into consideration. Please note, that some lasers can be operated in different modes.

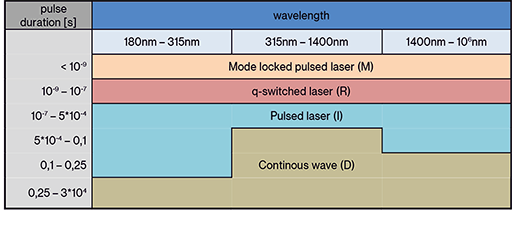

laser operation modes

Laser classes acc to EN 60825-1

Lasers have been categorized into 4 hazard classes based on the accessible emission limits or AELs. These limits indicate the class of the laser and are listed in EN 60825-1 and the American National Standards ANSI Z136.1 for Safe Use of Lasers. The AEL values for the laser classes are derived from the medical MPE (Maximum permissible exposure) values. The MPE values specify the danger level for the eye or the skin with respect to laser radiation. Since 2007 the laser classes are defined as listed below.



Laser Classes

In order to be able to classify laser devices regarding to their hazard, they are divided into so-called laser classes. This classification is based on the so-called GZS values (GZS: limit values for accessible radiation; English AEL: Accessible emission limit).

Class
ConceptComment
1 The radiation emitted by this laser is not dangerous No need for protection equipment
1M Eye safe when used without optical instruments, may not be safe when optical instruments are used No need for protection equipment,
if used without optical instruments
2 Radiation in the visible wavelength range (400nm-700nm), not dangerous for short-term exposure (0.25s) No need for additional protection equipment
2M The light that can hit the eye has the values of a class 2 laser, depending on a divergent or widened beam, it may not be safe when optical instruments are used No need for protection equipment,
if used without optical instruments
3R he radiation from this laser exceeds the MPE values (MPE: maximum permissible exposure). The radiation is max. 5 x AELs of class 1 (invisible) or 5 x of class 2 (visible). The risk is slightly lower than that of class 3B Dangerous to the eyes
safety glasses are recommended
3B Direct laser radiation is dangerous to the eyes and in special cases also to the skin. Diffuse reflections are usually classified as harmless Dangerous to the eyes
safety glasses are required
4 The accessible laser radiation is very dangerous for the eyes and skin. Diffuse reflection is also dangerous for the eyes. In addition, there is a risk of fire and skin damage

Personal safety equipment
is necessary (glasses, screens)
