laservision laser safety curtains

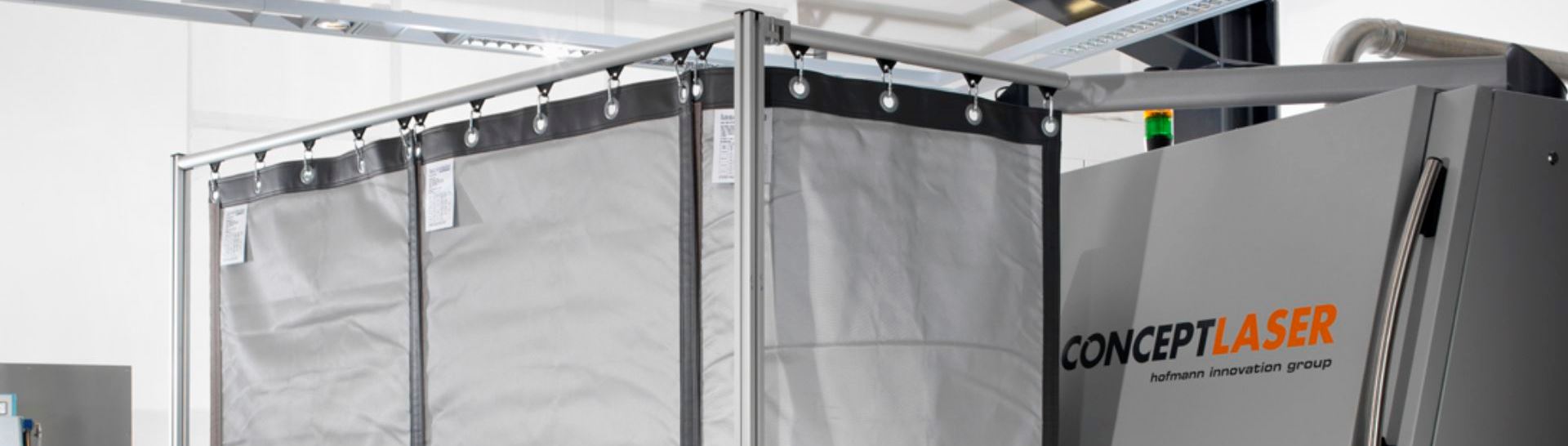

lasersafety curtains are a simple and flexible solution to enclose laser or laser areas. Therefore laservision offers a number of different standard types. Depending on the application and the expected laser liability one can choose between single- or multi-layer versions or two different cleanroom versions. By default all curtain segments are about 90cm width and 2,00m or 2,50m long and can be combined to larger units.  The segments can alternatively be cutted to any width and length free of charge. Also lengths of 5m are possible. The panels are mounted with overlapping eyelets on the carrier system.

The single-layer laser safety segment SHELTER LIGHT is very light and flexible. Therefore it is suitable as a curtain in front of windows and doors if a low laser power density or stray light is expected, referring to the assessment of risk. The segments are commonly connected with Velcro. Other connecting options and custom sizes and forms are possible on request. The SHELTER-LIGHT is certified acc. EN 12254.

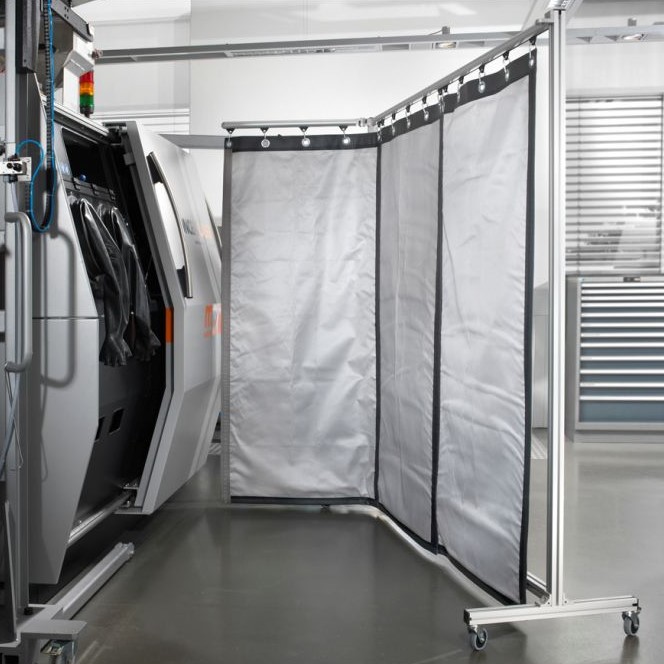

The three-layer strand version SHELTER NG is the standard version of the laservision laser safety curtains. This option is characterized by high certified protection levels over the complete relevant spectral range. The laser safety curtain is certified acc EN 12254 and CE certified acc. EN 60825. The single segments are also connected via Velcro. Other connecting options and custom sizes and forms are possible by request.

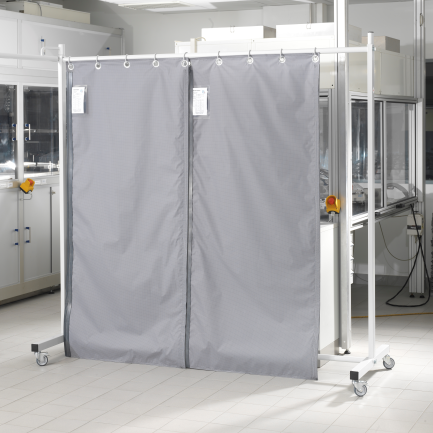

The two SHELTER-CR curtains with antistatic outside skin are offered as the SHELTER LIGHT-version as well as the SHELTER NG-version. These standard curtains a covered by an additional cladding made of grey, antistatic textile material. This material in certified acc. DIN EN 1149-1. Instead of the Velcro-strap a form-locking elastomer band is applied. Also these two laservision laser safety curtains are certified acc. EN 12254 and EN 60826 (CE).

Highlights

  • Modular segments
  • Different connection options (Velcro or twist lock faster)
  • Standard- light and antistatic versions
  • High protection levels
  • Certified acc. EN 12254
  • Partly CE certified acc. EN 60825
  • 8 standard dimensions available
  • Customized cuts are free of charge
  • Custom sizes and forms up to 2700mm x 3500mm on request (W x L)
  • Mounting, hanger assembly or rail systems

Available variations of laser protection curtains

lasersafety curtains are a simple and flexible solution to enclose laser or laser areas. Therefore laservision offers a number of different standard types. Depending on the application and the... read more »
Close window
laservision laser safety curtains
lasersafety curtains are a simple and flexible solution to enclose laser or laser areas. Therefore laservision offers a number of different standard types. Depending on the application and the expected laser liability one can choose between single- or multi-layer versions or two different cleanroom versions. By default all curtain segments are about 90cm width and 2,00m or 2,50m long and can be combined to larger units.  The segments can alternatively be cutted to any width and length free of charge. Also lengths of 5m are possible. The panels are mounted with overlapping eyelets on the carrier system.

The single-layer laser safety segment SHELTER LIGHT is very light and flexible. Therefore it is suitable as a curtain in front of windows and doors if a low laser power density or stray light is expected, referring to the assessment of risk. The segments are commonly connected with Velcro. Other connecting options and custom sizes and forms are possible on request. The SHELTER-LIGHT is certified acc. EN 12254.

The three-layer strand version SHELTER NG is the standard version of the laservision laser safety curtains. This option is characterized by high certified protection levels over the complete relevant spectral range. The laser safety curtain is certified acc EN 12254 and CE certified acc. EN 60825. The single segments are also connected via Velcro. Other connecting options and custom sizes and forms are possible by request.

The two SHELTER-CR curtains with antistatic outside skin are offered as the SHELTER LIGHT-version as well as the SHELTER NG-version. These standard curtains a covered by an additional cladding made of grey, antistatic textile material. This material in certified acc. DIN EN 1149-1. Instead of the Velcro-strap a form-locking elastomer band is applied. Also these two laservision laser safety curtains are certified acc. EN 12254 and EN 60826 (CE).

Highlights

  • Modular segments
  • Different connection options (Velcro or twist lock faster)
  • Standard- light and antistatic versions
  • High protection levels
  • Certified acc. EN 12254
  • Partly CE certified acc. EN 60825
  • 8 standard dimensions available
  • Customized cuts are free of charge
  • Custom sizes and forms up to 2700mm x 3500mm on request (W x L)
  • Mounting, hanger assembly or rail systems

Available variations of laser protection curtains

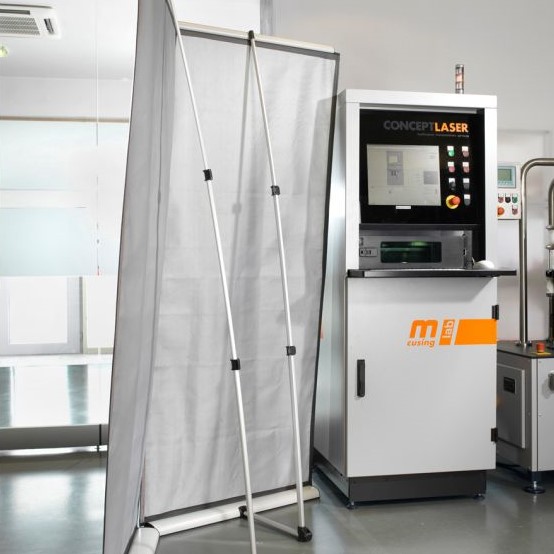

laser protection Roll-Up BC3.F1P01.1RU1
The Roll-up BC3.F1P01.1RU1 is characterized by a unique flexibility combined with high stability. More information here
Laser protection - Roll-Up Connector
The connecting element BC3F1P011274 for the laservision laser safety rollup increases the flexibility of it during the application...
laser safety curtain CR, SHELTER LIGHT
The single-layer laser safety segment BC7.F1P01.1201 provides a privileged adjustment and additionally are covered by a grey ESD-capable...
laser safety curtain CR, SHELTER NG
The single-layer laser safety segment BC6.F1P01.1201 provides a privileged adjustment and additionally are covered by a grey ESD-capable...
Content: 1 piece
Laser safety curtain SHELTER LIGHT
The single-layer laser safety segment BC3.F1P01 offers a width of about 900mm oder 1,800mm and a length (height) of 2000mm up to 3,500mm....
laser safety curtain SHELTER NG
The multi-layer laser safety curtain BC1.F1P01 has a width of approx. 900mm or 1800mm and a length of 2000mm up tp 3500mm. The single...
