TTS.POST1.1002 magnet column

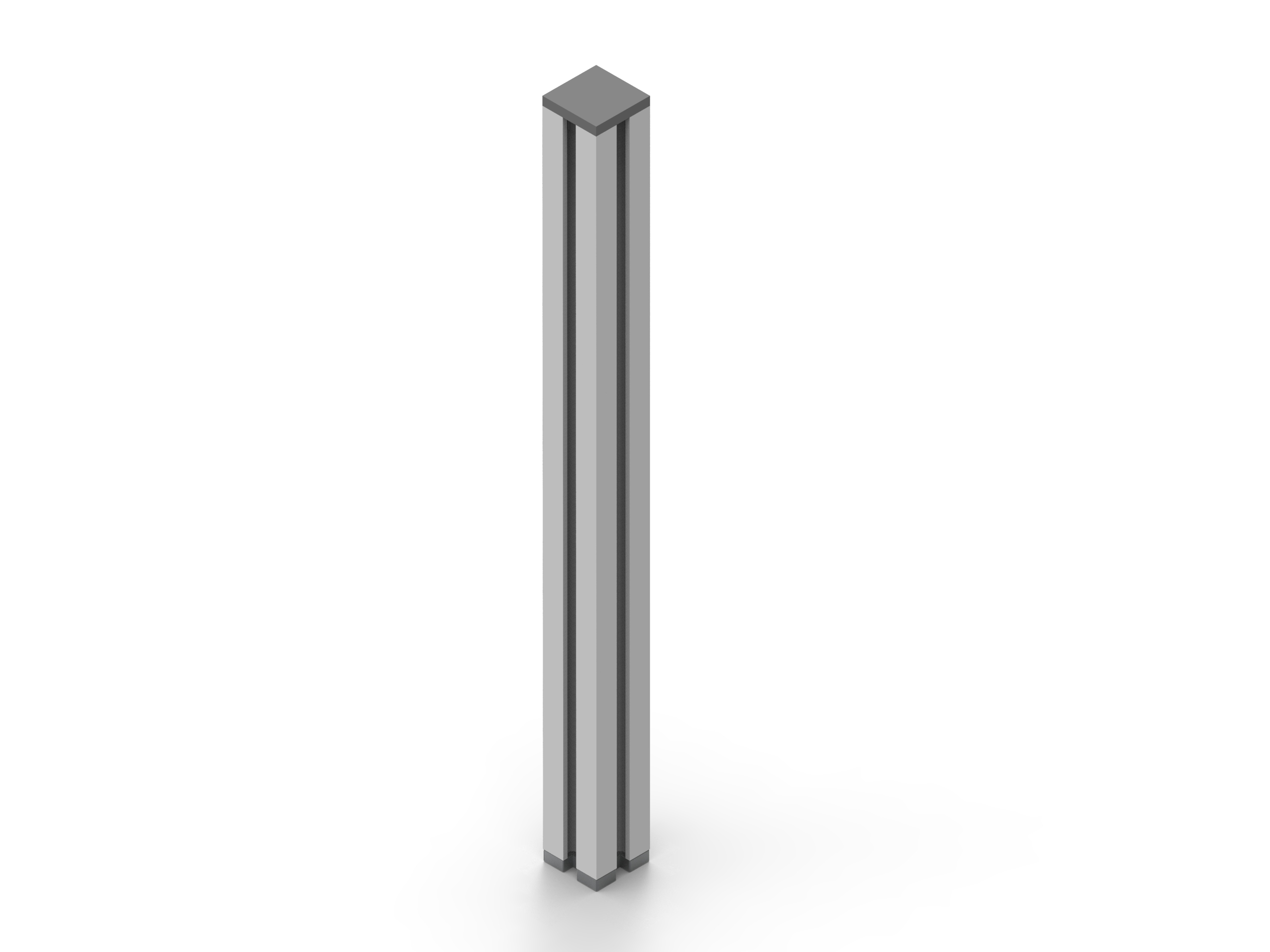

TThe magnetic column TTS.POST1.1002 can be placed freely on the OT by means of a strong neodymium magnet, provided that the OT has a magnetic surface. It has a total height of 309 mm. A maximum of 3 laser protection plates (TTS.M7P06.100x) with a height of 306mm can be held by it, so that there is a large number of assembly options. A plastic cap at the top minimizes the risk of injury.

  • Order number: TTSPOST11002
  • GTIN: 4050369056541
  • Pack unit: 1 pieces
  • Weight excl. packaging: 0,26 kg
Product number: TTSPOST11002
Product information "TTS.POST1.1002 magnet column"

The TTS.POST1.1002 magnetic column consists of a 25 mm aluminum profile with a height of approx. 306mm. An end cap is attached to the upper end so that the risk of injury is minimized. This results in a total height of 309 mm. A specially designed neodymium magnet is located on the underside of the TTS.POST1.1002 magnetic column, which means that the magnetic column can be positioned on all magnetic surfaces regardless of the drilling grid. (Attention! Strong magnet. Be careful with pacemakers and carefully place the column on the optical table. Risk of breakage!) As with the standard column, three of the four grooves are available for inserting the BARRIER. The construction of corners or T-junctions is therefore not a challenge and different areas can be defined on the OT. The magnetic column has been tested by laservision and fulfills an SGB of 1.25 MW / m² @ 940-1400nm for a maximum service life of 105s.

Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
Colour: black
Properties: stable standing, up to 3 modules insertable
Protection Class / Norm: EN 60825-4
Protection range: Infrared, near infrared

Other products in this category

TTS.M7P06.100x basic module
available standard sizes (mm): 306 x 208 x 6mm
The laser protection plates (M7P06) can be fixed directly on the OT with the corresponding columns. Especially for IR lasers. Buy from laservision!

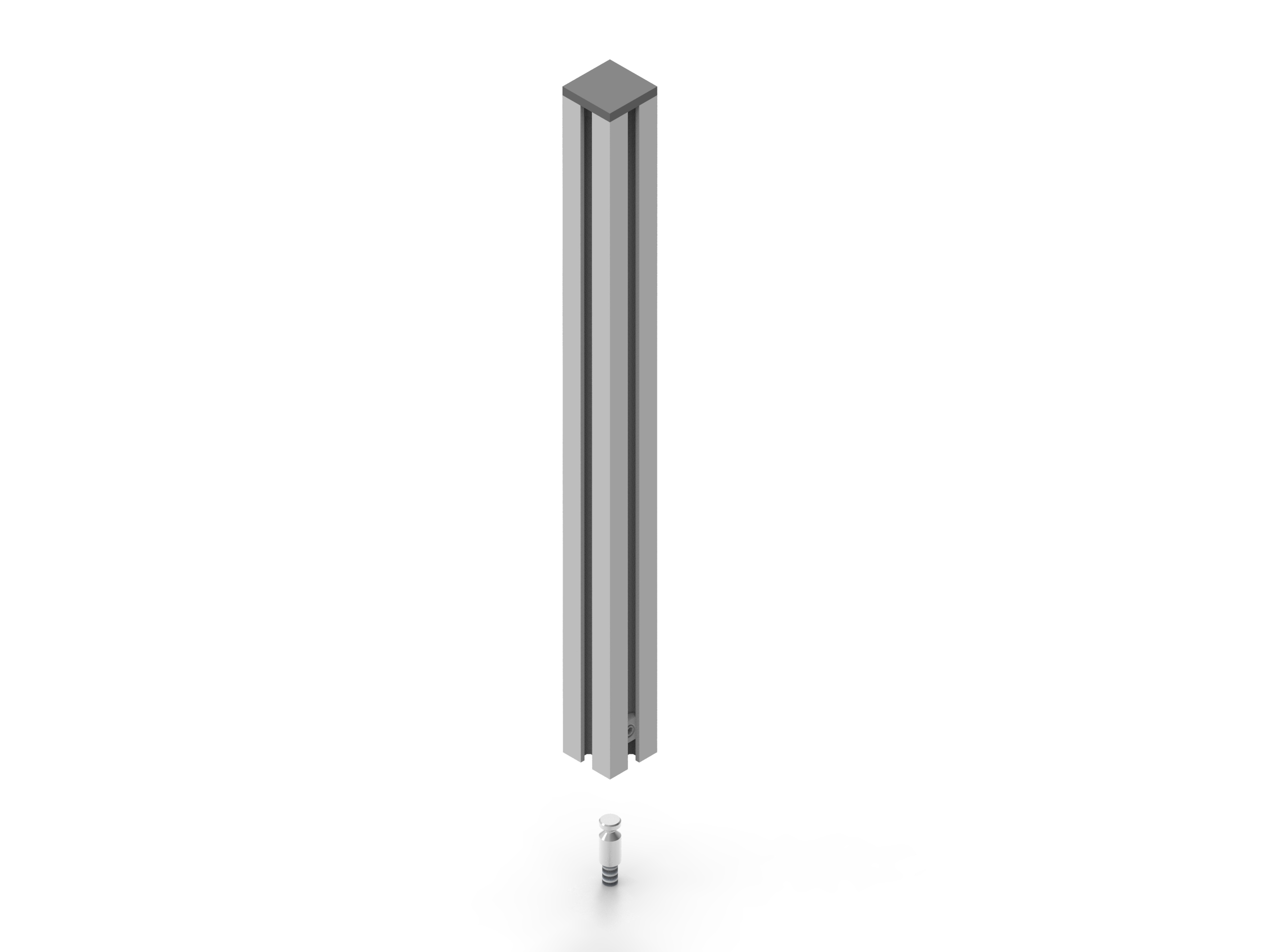

TTS.POST1.1001 standard column with M6 thread
