TTS.M7P06.301x On-The-Table-System EXT

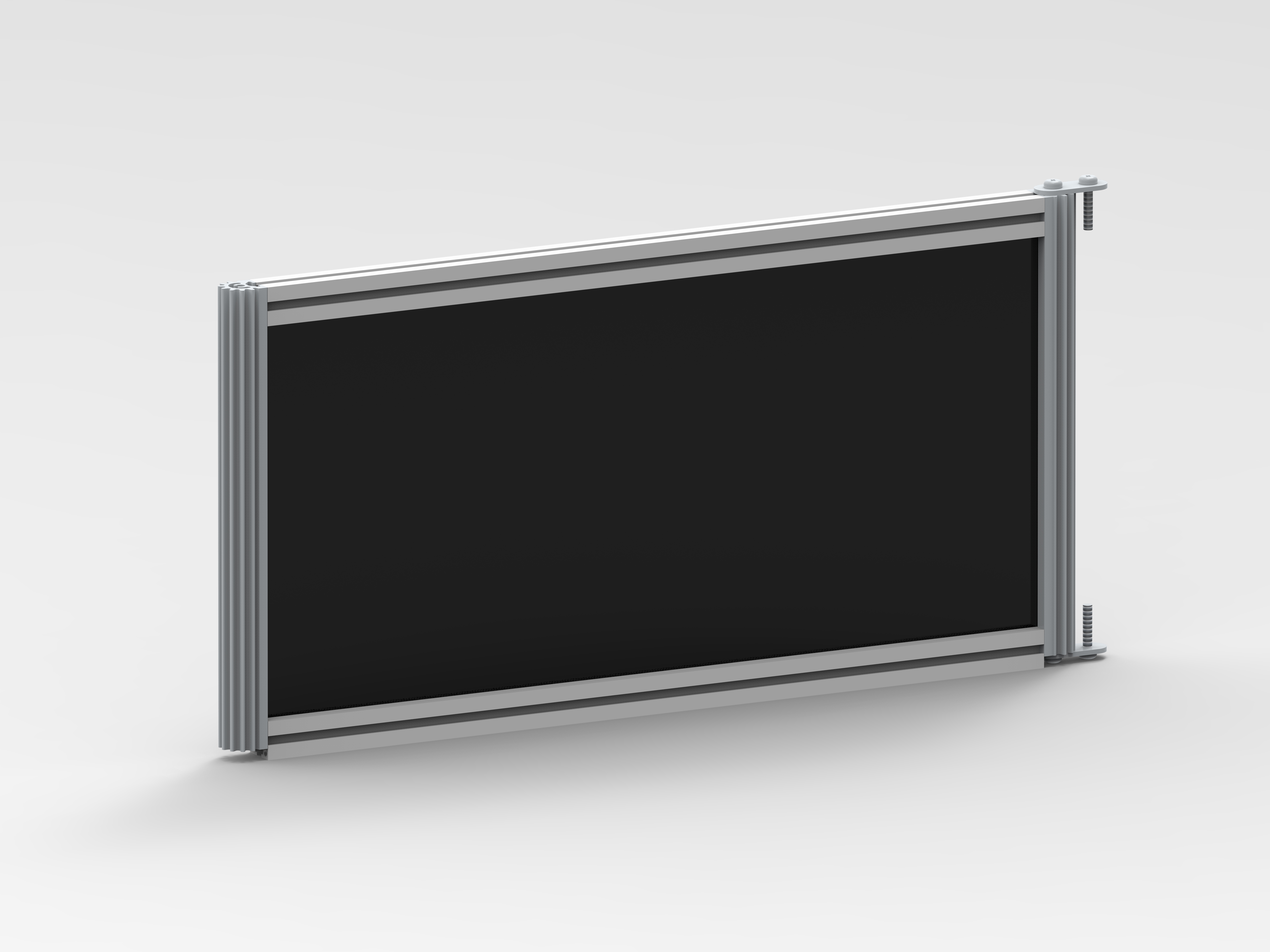

With a length of 600 mm, the TTS.M7P06.3012 is the middle intermediate module of this system. It can be connected to other modules of this system on both sides. This way it is used to extend the system in combination with the other modules. The height of the system with 306 mm matches the other systems. The laservision barrier material M7P06 is built into this module for protection. The material is certified according to DIN EN 60825-4 & EN 12254.
€287.00*
Prices plus VAT plus shipping costs
-
The delivery time is 3-5 days.
- Order number: TTSM7P063012
- GTIN: 4050369058903
Product information "TTS.M7P06.301x On-The-Table-System EXT"

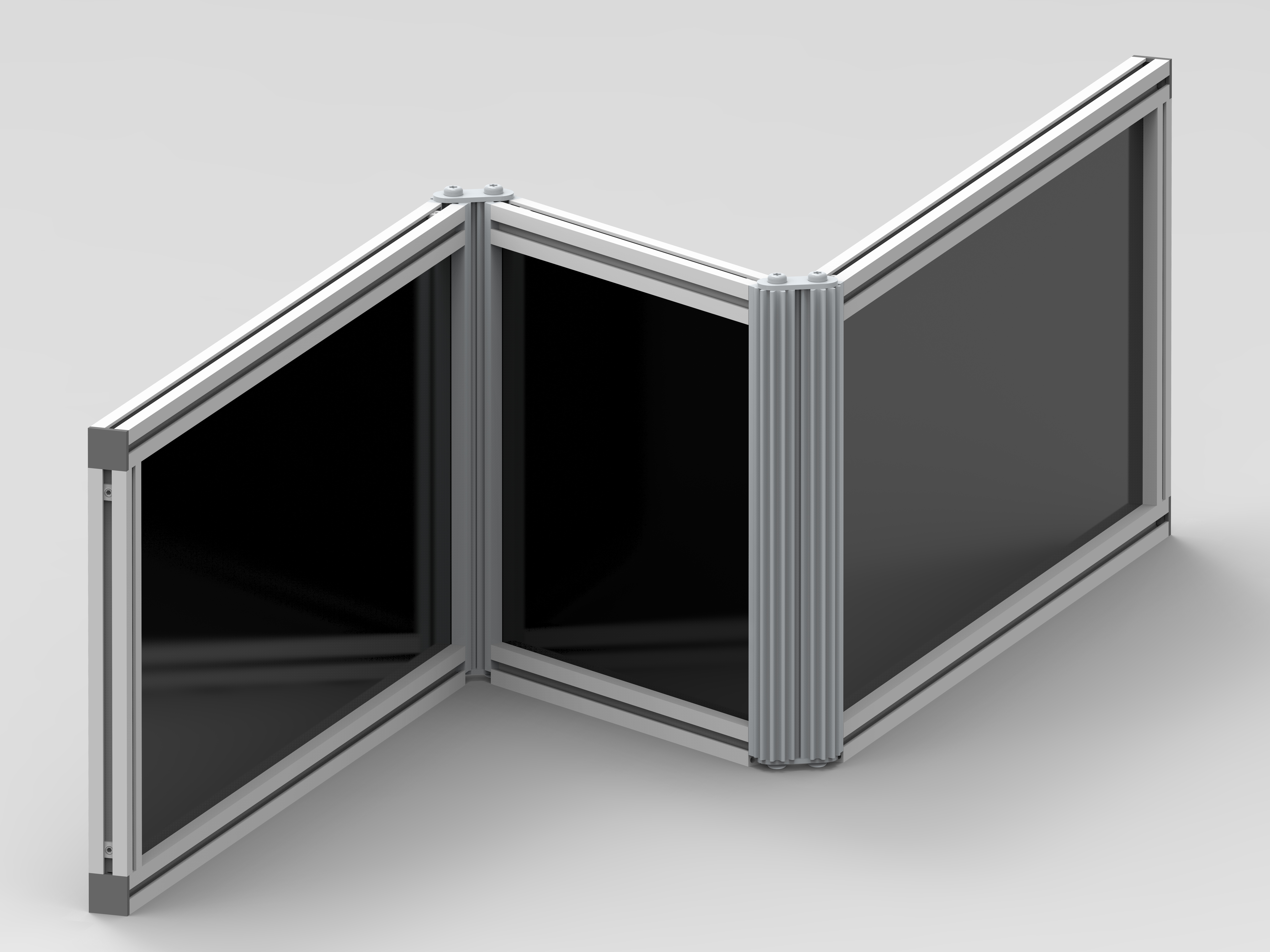

The TTS.M7P06.301x is an on-the-table extension module (EXT) which is available in different sizes. It consists of a laservision standard BARRIER M7P06 and is equipped on both sides with the E25 flex joint hinge and aluminum profiles. It can be reordered at any time to expand the on-the-table system. With the flex-joint hinge, the system can be folded flexibly and is light and laser-proof at all times. Thanks to the special profile, the structure can be folded up very flat and stored in a space-saving manner. The standard barrier M7P06 is certified according to EN60825-4. The on-the-table system is intended for self-assembly in laboratories and facilities. All necessary screws are included in the scope of delivery.
Highlights
Intermediate module available in various standard sizes
Aluminum profiles and BARRIER tested by laservision according to DIN EN 60825-4
For ranges from 780nm to 1400nm
Easy and quick assembly
Tested light and laser-proof hinge
For individual and flexible assembly
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Colour: | black |
|---|---|
| Properties: | both-sides usable, freely selectable number of modules, stable standing, standard plate material M7P06 |
| Protection Class / Norm: | EN 60825-4 |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| 780-1400nm | 960 kW/m2 | T2 | tmax = 210s |
| 9000-11000nm | 615 kW/m2 | T2 | tmax = 105s |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | – | D AB9 + IR AB4 + M AB6Y |
| >315 - 1050 | – | D AB8 + IR AB9 + M AB10 |
| >1050 - 1400 | – | D AB7 + IR AB9 + M AB10 |
| >1400 - 25000 | – | D AB5 |
