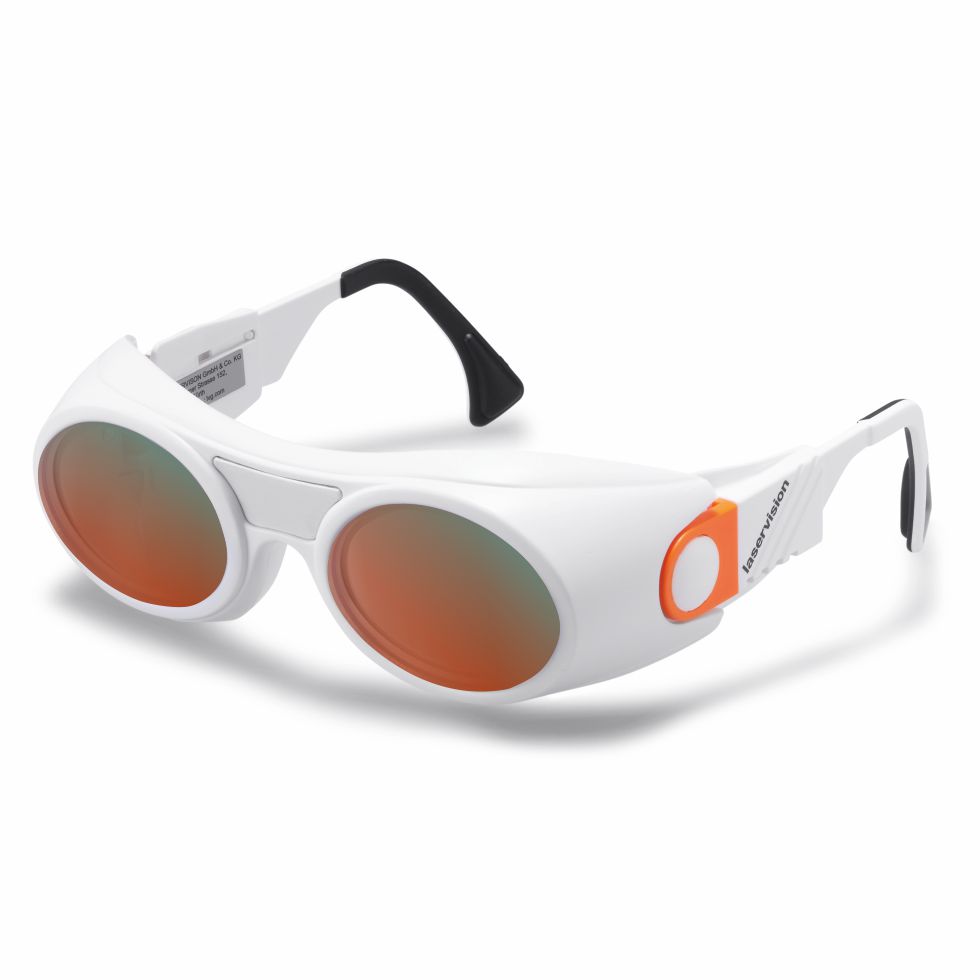

laser safety spectacle R01T1P05
The laser safety eyewear R01.T1P05.1001 provides an extremely broadband laser protection within the UV, VIS, NIR and IR spectral range (180-532nm und 805-11.500nm). The full protection spectacle can be combined with an RX-insert. The small, reinforced spectacle with adjustable temples and brown filter’s, is characterized for its light weight and a good field of view. The shipment includes a spectacle cord and metal box, which can also be used as its storage box.
- Order number: R01T1P051001
- GTIN: 4050369030145
- Pack unit: 1 pieces
- Weight incl. packaging: 0,54 kg
- Weight excl. packaging: 0,15 kg
Product number:
R01T1P051001
Product information "laser safety spectacle R01T1P05"
Protection range
![Icon_UV2](https://www.uvex-laservision.de/media/00/62/2b/1664273701/Icon_UV2.png)
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
![Icon-VIS](https://www.uvex-laservision.de/media/8e/06/4e/1664273701/Icon-VIS.png)
visible
Protection within the visible spectral range between 400 and 700nm
![Icon-NIR](https://www.uvex-laservision.de/media/e0/0a/70/1664273699/Icon-NIR.png)
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
![Icon-IR](https://www.uvex-laservision.de/media/e8/14/0a/1664273699/Icon-IR.png)
Infrared
Protection in the infrared spectral range above 1400nm
![Icon-refl](https://www.uvex-laservision.de/media/59/d6/f5/1664273701/Icon-refl.jpg)
cc-uvex.protectionrange.properties.coatedfilter.title
cc-uvex.protectionrange.properties.coatedfilter.description
Coating: | Interference Coating (PVD) |
---|---|
Cushion: | No cushion |

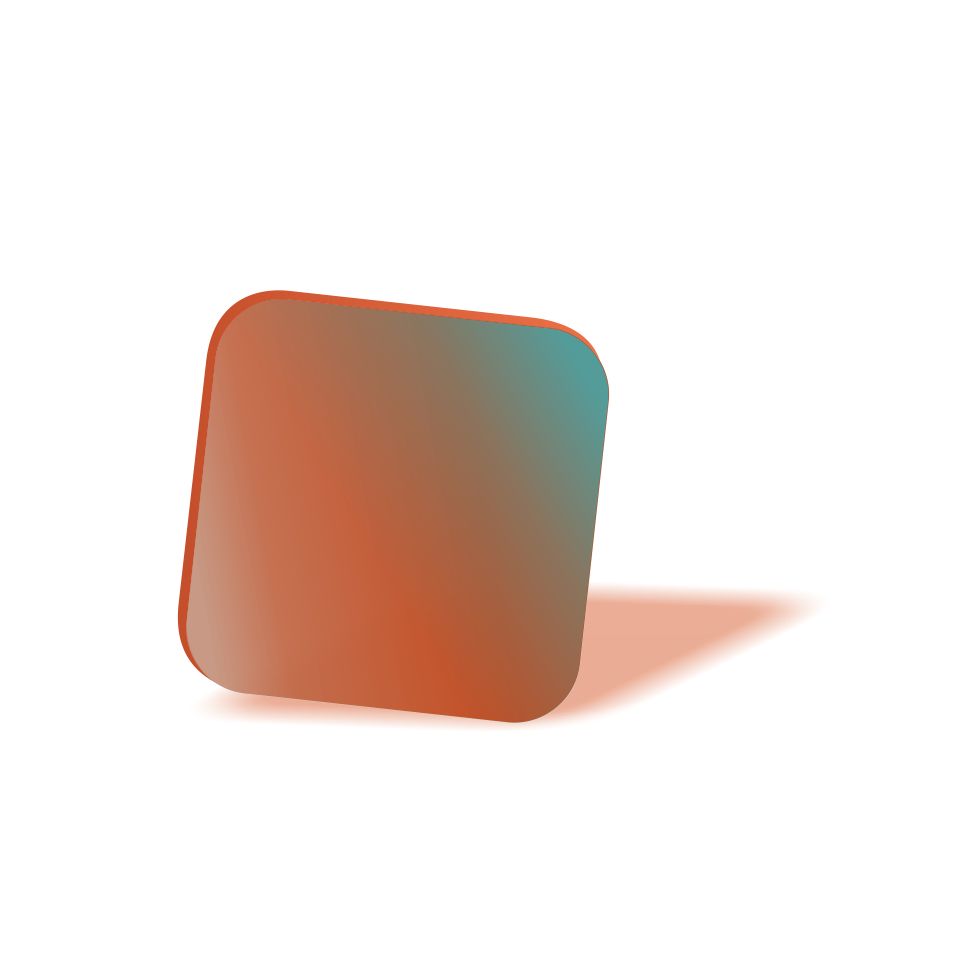

Filter: | T1P05 |
Filter colour: | Orange |
Filter material: | Coated glass |
Filter technology: | Absorption filter, Reflection filter |
Filter thickness: | ca. 10mm |
Frame: | R01 |
Frame type: | Spectacle with Rx insert option |
Properties: | M-protection rating |
Protection Class / Norm: | EN 207 full protection |
Protection range: | Coated filter, Infrared, near infrared, ultraviolett, visible |
VLT (approx.): | 15% |
Visual brightness: | Limited |

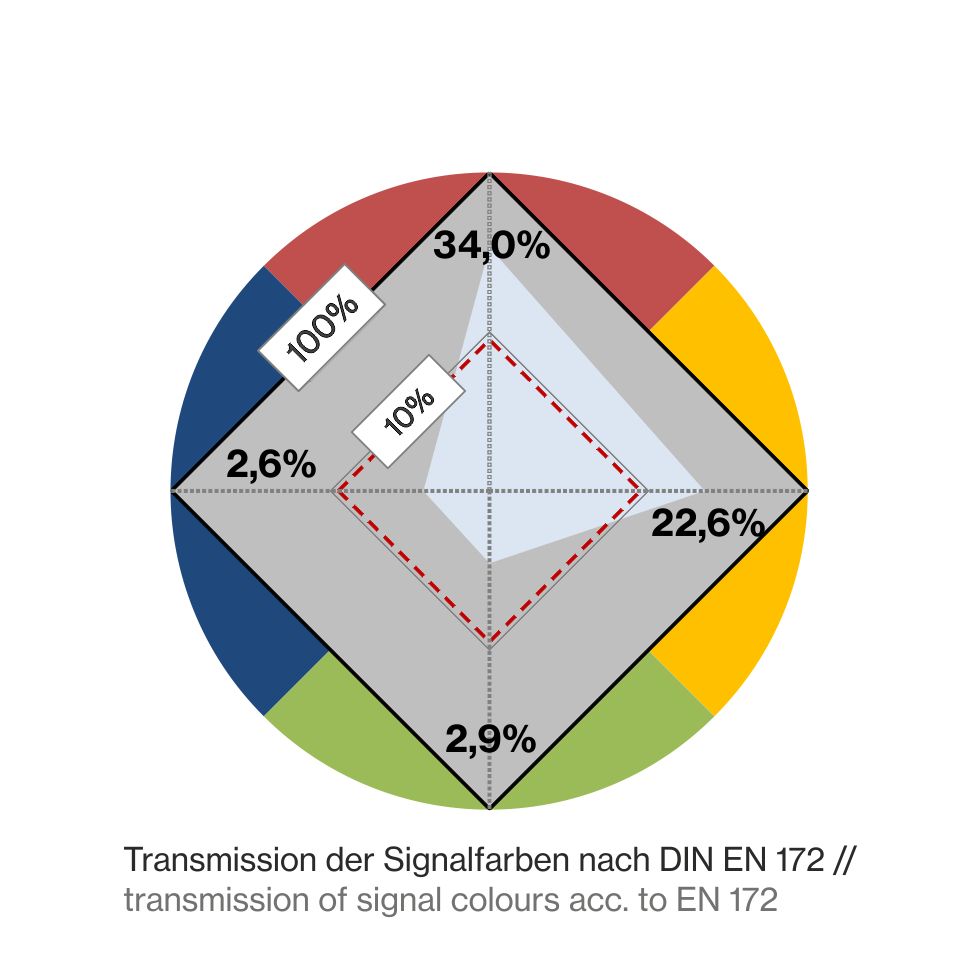

colour recognition: | Limited |

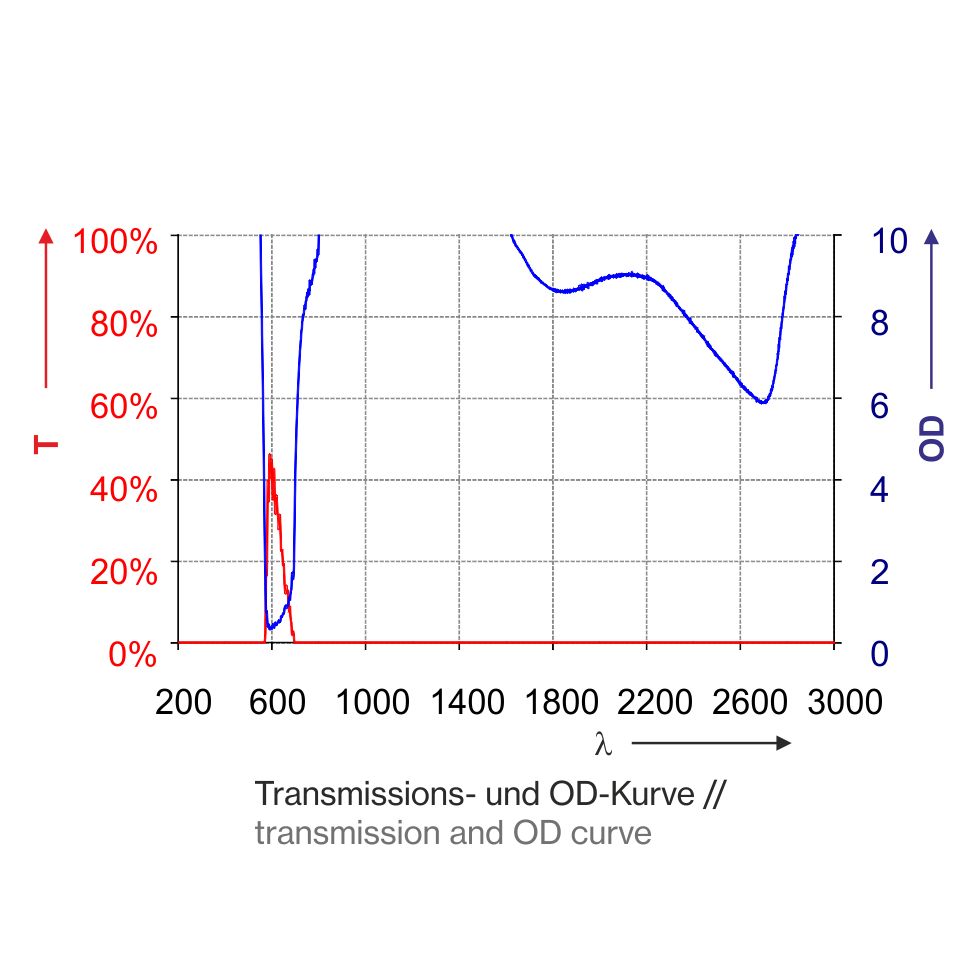

WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
---|---|---|
180 - 315 | (OD10+) | D LB10 + IR LB5 + M LB6Y |
>315 - 532 | (OD9+) | D LB7 + IR LB8 + M LB9 |
532 - 535 | (OD10+) | D LB8 + IR LB9 + M LB10 |
730 - <780 | (OD1+) | DIRM LB1 |
780 - <808 | (OD7+) | DIRM LB7 |
808 - 860 | (OD8+) | DIRM LB8 |
>860 - <885 | (OD5+) | DIRM LB5 |
885 - <900 | (OD6+) | DIRM LB6 |
900 - <1025 | (OD7+) | DIRM LB7 |
1025 - 1400 | (OD10+) | D LB8 + IR LB9 + M LB10 |
>1400 - 3500 | (OD5+) | D LB5 + IM LB5Y + R LB3Y |
>3500 - 25000 | (OD6+) | D LB5 + I LB5Y + R LB3Y + M LB6Y |
