laservision laser safety eyewear F20 with laser safety filter P1D01

laser safety spectacle F20P1D01

 The laservision laser safety spectacle F20.P1D01.1001 with colorless filter and has high protection levels in the UV range as well as a D LB5 protection level for CO2 lasers. The daylight transmission (VLT) is 90% and the visual brightness and color vision are excellent. These laser safety goggle impress with a very good field of vision and a comfortable fit. They are delivered in a soft case together with a cord for hanging the goggles. We recommend the laservision cleaning station for cleaning the laser safety goggle (A99.CLSTA.1300).

  • F20P1D011001
  • GTIN: 4050369072138
  • 1 pieces
  • 0.27 kg
  • 0.03 kg
Protection range
Infrared
Infrared

Protection in the infrared spectral range above 1400nm

ultraviolett
ultraviolett

Protection within the ultraviolet spectral range between 180 and 400nm

visible
visible

Protection within the visible spectral range between 400 and 700nm

Coating: no coating
Protection Class / Norm: EN 207 full protection
Frame type: Spectacle
Properties: individually packed
Lightweight
Frame: F20
Filter: P1D01
Filter colour: Colourless
colour recognition: Excellent
Filter thickness: ca. 2mm
Filter material: Plastic
Filter technology: Absorption filter
Protection range: Infrared
ultraviolett
visible
Visual brightness: Excellent
VLT (approx.): 90%

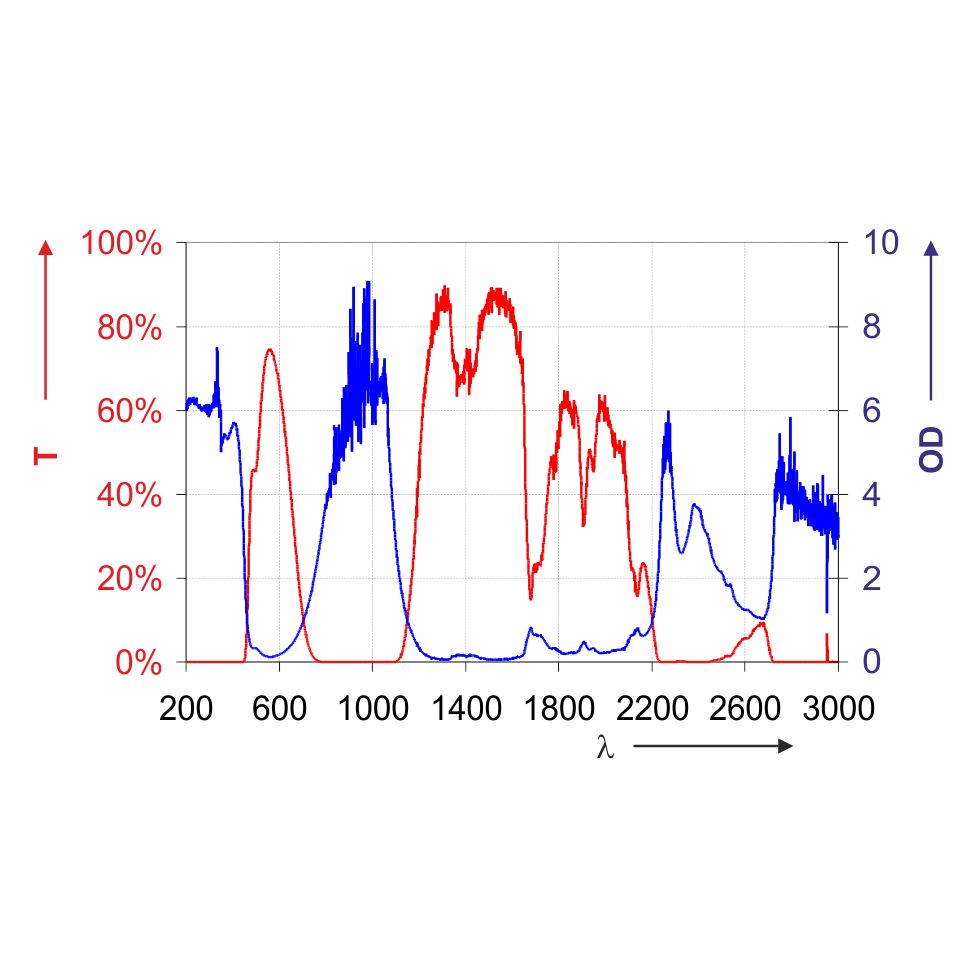

wavelength (nm) OD Operating mode  / Tested protection level
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6Y
>315 - 367 (OD8+) D LB6 + IR LB8 + M LB7Y
>367 - 369 (OD7+) D LB6 + IR LB7 + M LB7Y
>369 - 371 (OD6+) DIRM LB6
>371 - 373 (OD5+) DIRM LB5
>373 - 375 (OD4+) DIRM LB4
>375 - 377 (OD3+) DIRM LB3
>377 - 380 (OD2+) DIRM LB2
>380 - 384 (OD1+) DIRM LB1
3950 - <4700 (OD4+) DI LB4 + R LB3Y + M LB4
4700 - <4765 (OD5+) DI LB5 + R LB3Y + M LB5
4765 - <5200 (OD8+) DI LB5 + R LB3Y + M LB6Y
5200 - 14500 (OD10+) DI LB5 + R LB3Y + M LB6Y
>14500 - 25000 (OD6+) DI LB5 + R LB3Y + M LB6Y
