laser safety spectacle F46P1E01

The laservision laser safety eyewear F46.P1E01.1001 with orange filters is suitable for blue, green and UV lasers (2nd and 3rd harmonics of Nd: YAG). The multifunctional eyewear with the Clipnetic system can be worn as over glasses (OTG) over prescription filters in combination with the Clipnetic Cover (A46COVER1000) or as ordinary laser safety goggle with the formable Clipnetic Flex Nose (A46NOSE00001). It can also be equipped with an RX insert (A46RXINS00001) through the magnet system. laservision also offers a glazing service for this purpose, so the way to the optician is no longer necessary. The F46 is very cost-effective, as it is very suitable for changing users within the area of ​​application. The scope of delivery includes all Clipnetic features, which can also be reordered optionally at any time. laservision recommends the professional cleaning station (A99CLSTA1300) for cleaning the laser safety eyewear.

  • Order number: F46P1E011001
  • GTIN: 4050369055810
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,20 kg
  • Weight excl. packaging: 0,05 kg
Product number: F46P1E011001
Product information "laser safety spectacle F46P1E01"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
Coating: Anti-scratch on both sides
Filter: P1E01
Filter colour: Orange
Filter curvature: Base curve 6
Filter material: Plastic
Filter technology: Absorption filter
Filter thickness: ca. 2mm
Frame: F46
Frame type: OTG with temples, Spectacle, Spectacle with Rx insert option
Properties: Clipnetic-System, glazing service für rx-insert, kaltverformbare Bügelenden
Protection Class / Norm: EN 207 full protection
Protection range: ultraviolett, visible
VLT (approx.): 40%
Visual brightness: Good
colour recognition: Limited
WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6Y
>315 - 532 (OD8+) D LB6 + IR LB8 + M LB8Y
>532 - 534 (OD7+) D LB6 + IRM LB7
>534 - 536 (OD6+) DIRM LB6
>536 - 538 (OD5+) DIRM LB5
>538 - 540 (OD4+) DIRM LB4
>540 - 542 (OD3+) DIRM LB3
>542 - 545 (OD2+) DIRM LB2
>545 - 550 (OD1+) DIRM LB1

Accessories

Clipnetic Cover for Frame F46 / Set of 5
Laser safety glasses with frame F46 can be worn with the Clipnetic Cover as so-called over-glasses (OTG). Buy from laservision!
Clipnetic Flex-Nose for Frame F46 / Set of 5
Laser safety eyewear with frame F46 can be equipped with the Clipnetic Flex nose. For an even more comfortable wearing experience. Buy from laservision!
Clipnetic Rx insert for frame F46
The Clipnetic RX insert is attached to the F46 laser safety mount by the magnetic holder. Optional: glazing service. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!

Other products in this category

laser safety spectacle F42P1E01
Laser safety spectacle F42P1E01 with Quick Release suitable for blue, green and UV lasers (2nd and 3rd harmonic of Nd:YAG). Buy from laservision!
laser safety magnifier F27P1E01 340mm
Binocular laser safety magnifier F27P1E01 suitable for UV and Nd:YAG lasers (dental area). Buy from laservision!
laser safety spectacle F18P1E01
Laser safety goggle F18P1E01 - suitable for blue, green and UV lasers (2. and 3. Harmonic of Nd:YAG). Buy from laservision!

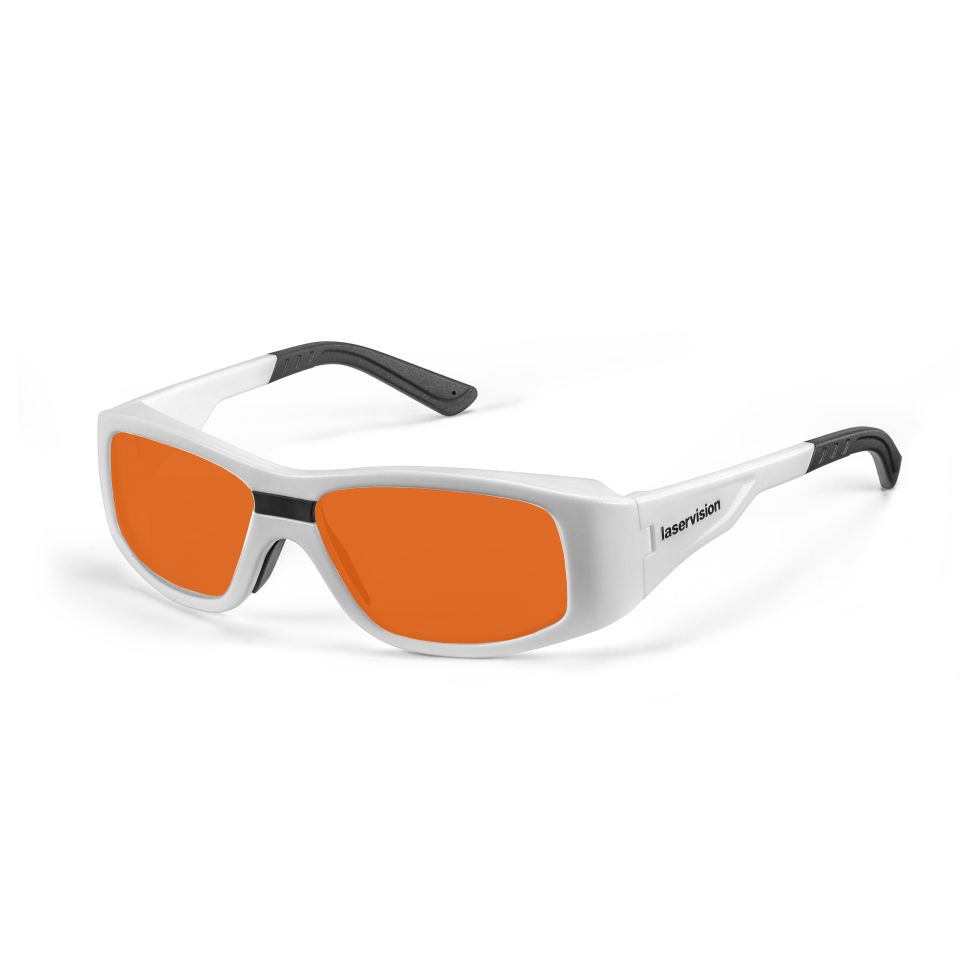

laser safety spectacle F20P1E01
