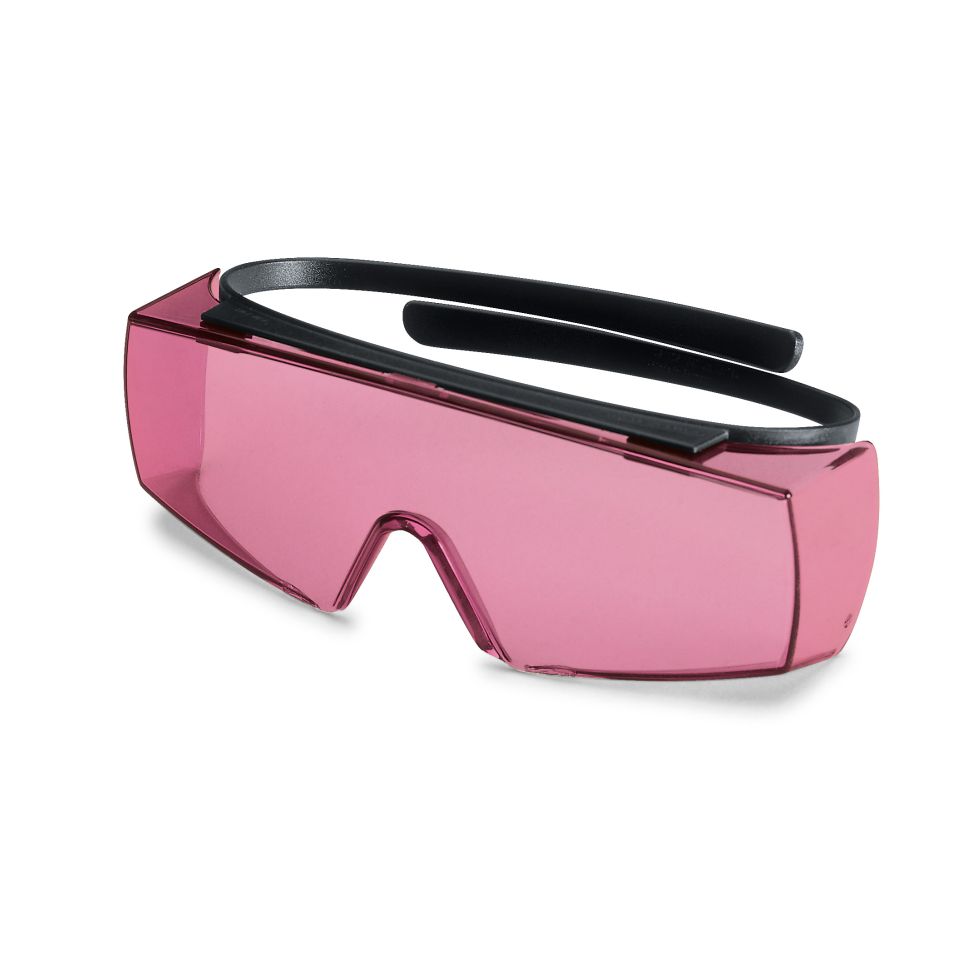

laser safety spectacle F18P1F01
The laser safety goggle F18.P1F01.1001 is especially suitable for Alexandrite laser and IR-pump diodes within a wavelength range between 810 and 840-855nm. This frame fits over most up-to-date prescription glasses. The continuous, single shield provides a broad field of vision without any restriction by a frame. The shipment adds a softcase together with a cord to hang it around the neck. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F18P1F011003
- GTIN: 4050369053007
- Pack unit: 1 pieces
- Weight incl. packaging: 0,23 kg
- Weight excl. packaging: 0,04 kg
Product number:
F18P1F011003
Product information "laser safety spectacle F18P1F01"
Protection range
![Icon_UV2](https://www.uvex-laservision.de/media/00/62/2b/1664273701/Icon_UV2.png)
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
![Icon-NIR](https://www.uvex-laservision.de/media/e0/0a/70/1664273699/Icon-NIR.png)
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Coating: | no coating |
---|---|
Filter: | P1F01 |
Filter colour: | Magenta |
Filter material: | Plastic |
Filter technology: | Absorption filter |
Filter thickness: | ca. 2mm |
Frame: | F18 |
Frame type: | OTG with temples |
Properties: | Lightweight |
Protection Class / Norm: | EN 207 full protection |
Protection range: | near infrared, ultraviolett |
VLT (approx.): | 35% |
Visual brightness: | Good |
colour recognition: | Very good |
WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
---|---|---|
180 - 315 | (OD5+) | D LB5 + R LB4 |
>315 - 375 | (OD5+) | D LB4 + R LB5 |
>375 - 390 | (OD3+) | DR LB3 |
730 - <755 | (OD4+) | DIR LB4 |
755 - 840 | (OD7+) | DR LB5 + I LB7Y |
>840 - 855 | (OD4+) | DIR LB4 |
