laser safety spectacle F29P1L02
The laser safety spectacle F29.P1L02.1001 is characterized by high M-protection ratings ar 1064nm, 532nm abd 355nm. It has full protection acc. EN 207 for Nd:YAG, SHG, THG incl. pump diodes. The fluorescence effect, during the alignment, is visible. The shipment includes a softcase and a spectacle cord. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station A99.CLASTA.1200).
- Order number: F29P1L021001
- GTIN: 4050369031715
- Pack unit: 1 pieces
- Weight incl. packaging: 0.27 kg
- Gewicht exkl. Verpackung: 0.031 kg
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
| Coating: |
no coating
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
Spectacle
|
| Properties: |
Lightweight
M-protection rating |
| Frame: |
F29
|
| Filter: |
P1L02
|
| Filter colour: |
Orange
|
| colour recognition: |
Limited
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
near infrared
ultraviolett visible |
| Visual brightness: |
Good
|
| VLT (approx.): |
30%
|

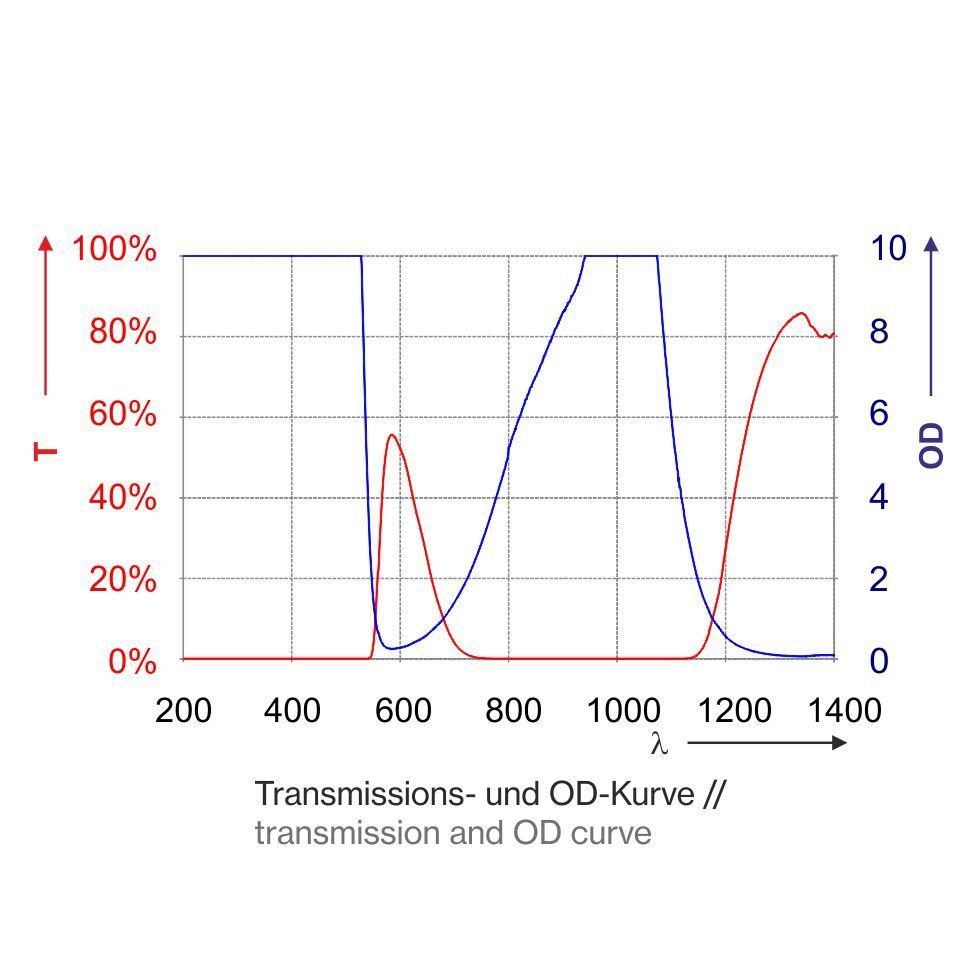

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD8+) | D LB8 + IR LB4 + M LB6 |
| >315 - 532 | (OD8+) | D LB6 + I LB7 + RM LB8 |
| >532 - 534 | (OD7+) | D LB6 + IRM LB7 |
| >534 - 536 | (OD6+) | DIRM LB6 |
| >536 - 538 | (OD5+) | DIRM LB5 |
| >538 - 540 | (OD4+) | DIRM LB4 |
| 780 - <810 | (OD3+) | DIRM LB3 |
| 810 - <860 | (OD4+) | DIRM LB4 |
| 860 - <900 | (OD5+) | DIRM LB5 |
| 900 - <940 | (OD6+) | DIRM LB6 |
| 940 - 1070 | (OD7+) | D LB6 + IRM LB7 |
| >1070 - 1080 | (OD6+) | DIRM LB6 |
| >1080 - 1100 | (OD4+) | DIRM LB4 |
