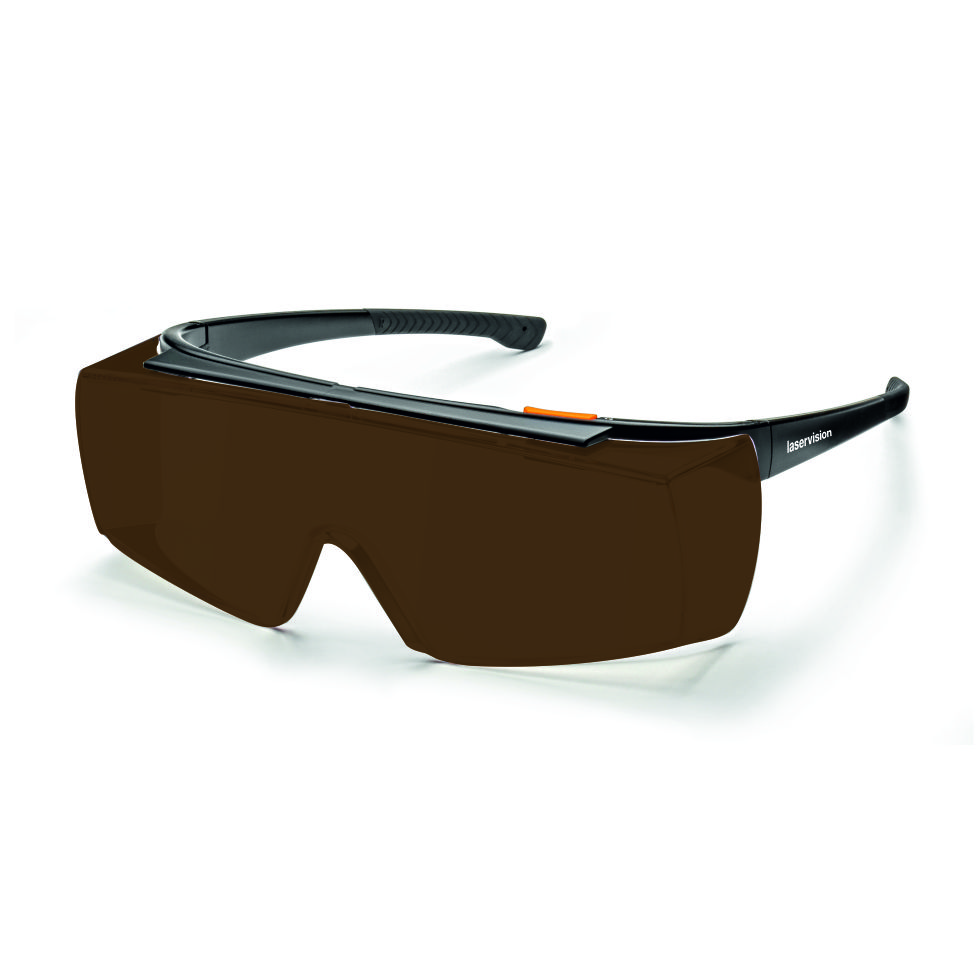

laser safety spectacle F42P1L07

The laser safety spectacle F42.P1L07.1001 with disinfectable standard temples, a quick release system (quick release) and cold-forming temple tips has got limited daylight transmission of approx. 10% which is sufficient in bright working environment. Colour recognition is slightly limited.The filter type P1L07 is certified with M-protection levels for nearly the full wavelength range between 180 and 1210nm and therfore especially suitable for supercontinuum lasers and ultra-short pulsed lasers. This goggle has high m-protection ratings within the wavelength area 745nm and 1120nm and it has full protection levels acc. to EN 207. It consists of an almost complete certified area from 180nm to 1210nm. The eyewear comes in a sustainably produced hexagonal cardboard box, along with a microfiber pouch and a cord to hang the goggles on. For cleaning the laser safety goggles, laservision recommends the professional cleaning station (A99.CLSTA.1300).

  • Order number: F42P1L071001
  • GTIN: 4050369050037
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,24 kg
  • Weight excl. packaging: 0,05 kg
Product number: F42P1L071001
Product information "laser safety spectacle F42P1L07"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Coating: Anti-scratch on both sides

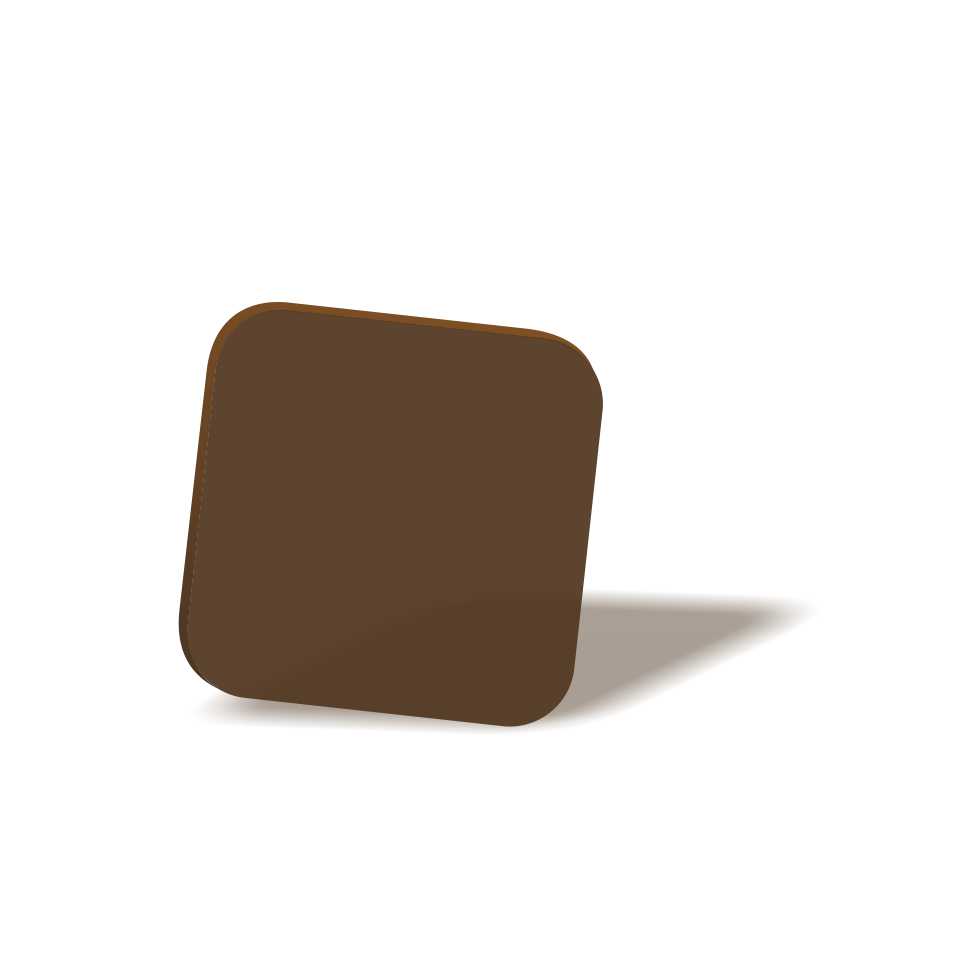

Filter: P1L07
Filter colour: Brown
Filter material: Plastic
Filter technology: Absorption filter
Filter thickness: ca. 2mm
Frame: F42
Frame type: OTG with temples
Properties: Lightweight, M-protection rating, Quick Release, desinfizierbar, kaltverformbare Bügelenden
Protection Class / Norm: EN 207 full protection
Protection range: near infrared, ultraviolett, visible
VLT (approx.): 10%
Visual brightness: Sufficient

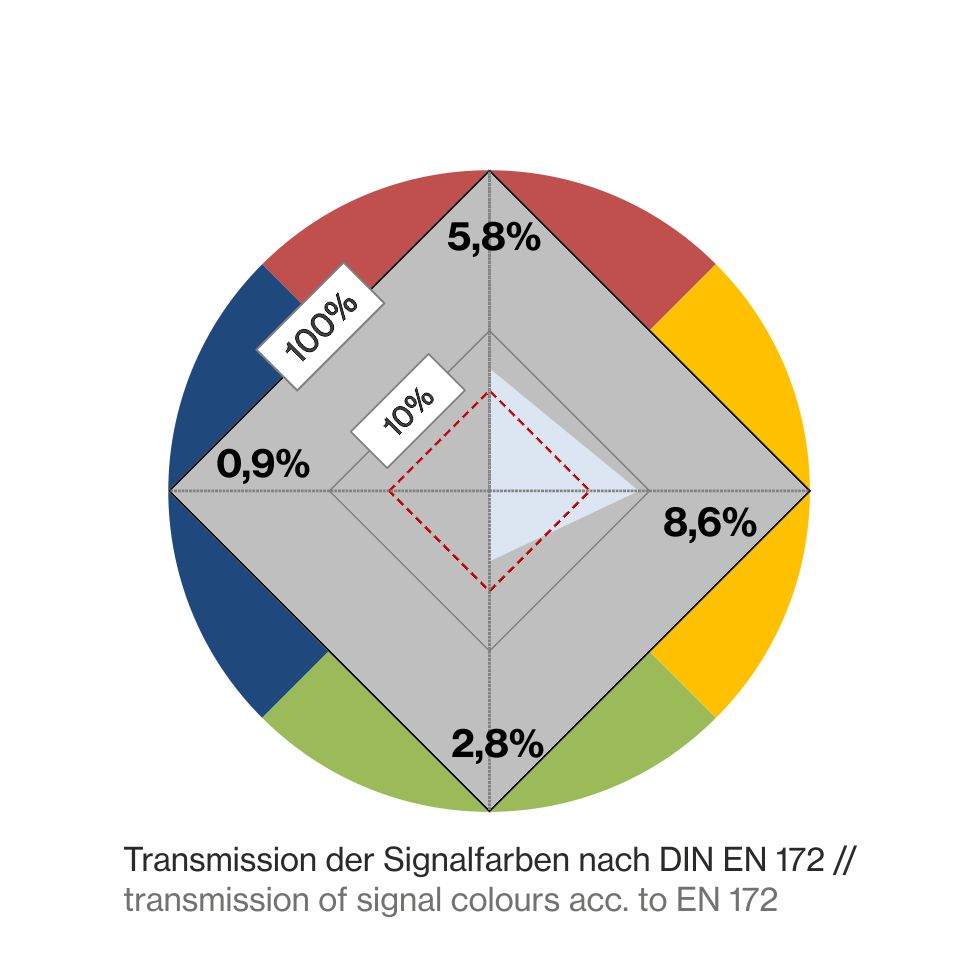

colour recognition: Good

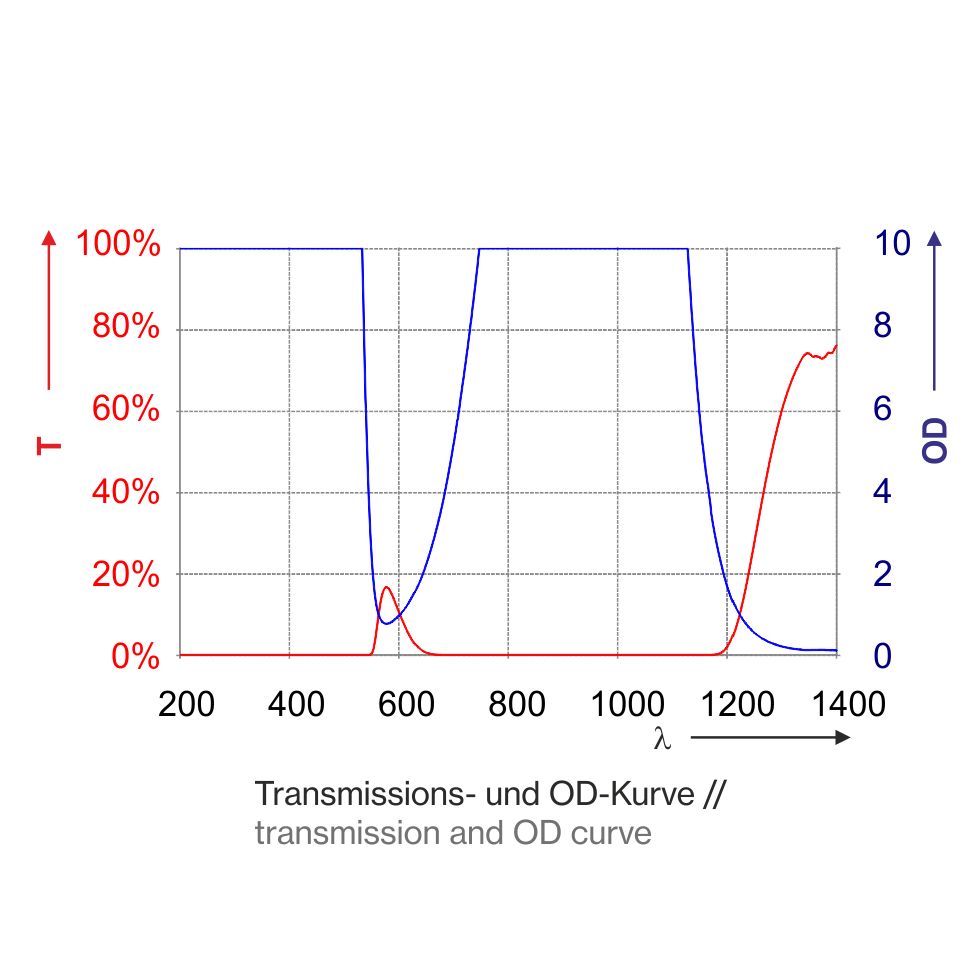

WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6
>315 - 534 (OD8+) D LB6 + IRM LB8
>534 - 540 (OD6+) DIRM LB6
>540 - 545 (OD3+) DIRM LB3
630 - <660 (OD1+) DIRM LB1
660 - <680 (OD2+) DIRM LB2
680 - <700 (OD3+) DIRM LB3
700 - <715 (OD4+) DIRM LB4
715 - <725 (OD5+) DIRM LB5
725 - <735 (OD6+) DIRM LB6
735 - <745 (OD7+) D LB6 + IRM LB7
745 - <755 (OD8+) D LB6 + IRM LB8
755 - 1120 (OD9+) D LB6 + IR LB8 + M LB9
>1120 - 1130 (OD7+) D LB6 + IRM LB7
>1130 - 1135 (OD6+) DIRM LB6
>1135 - 1145 (OD5+) DIRM LB5
>1145 - 1155 (OD4+) DIRM LB4
>1155 - 1165 (OD3+) DIRM LB3
>1165 - 1180 (OD2+) DIRM LB2
>1180 - 1210 (OD1+) DIRM LB1

Accessories

laser safety frame F42 / Set of 5
The lightweight laser protection mount A42 with quick-release and folding bracket is available as an accessory in a set of 5. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Spectacle cord without logo
The adjustable goggle cord is suitable for all glass and plastic laser safety glasses from laservision. Buy from laservision!

Other products in this category

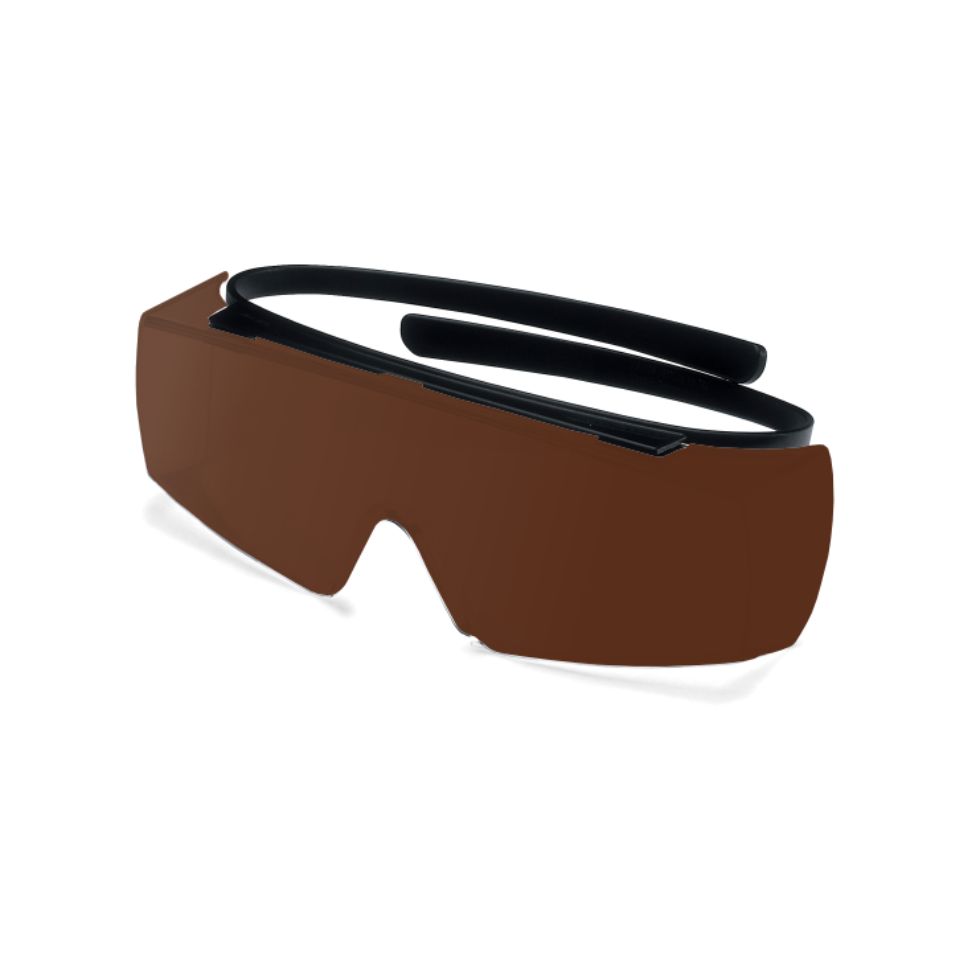

laser safety spectacle F18P1L07
Laser safety goggle F18P1L07 especially suitable for Ti:Saphire lasers and pump diodes. Buy from laservision!

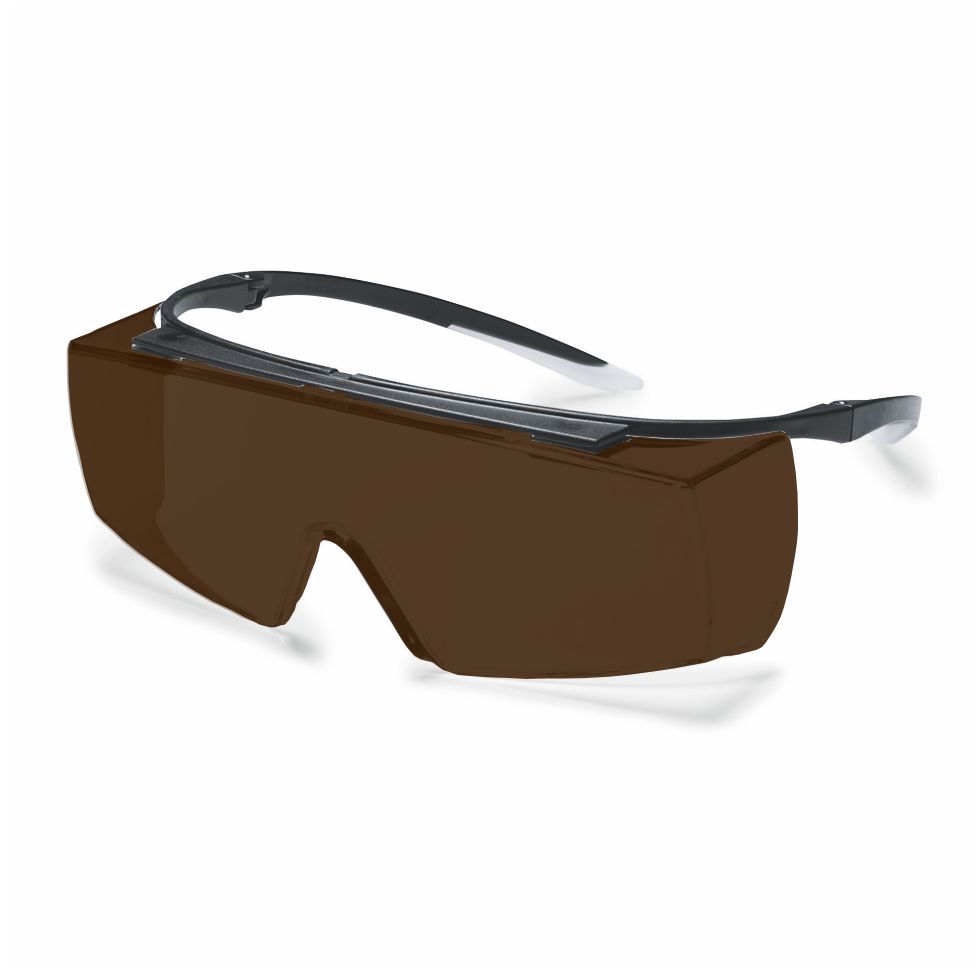

laser safety spectacle F22P1L07
