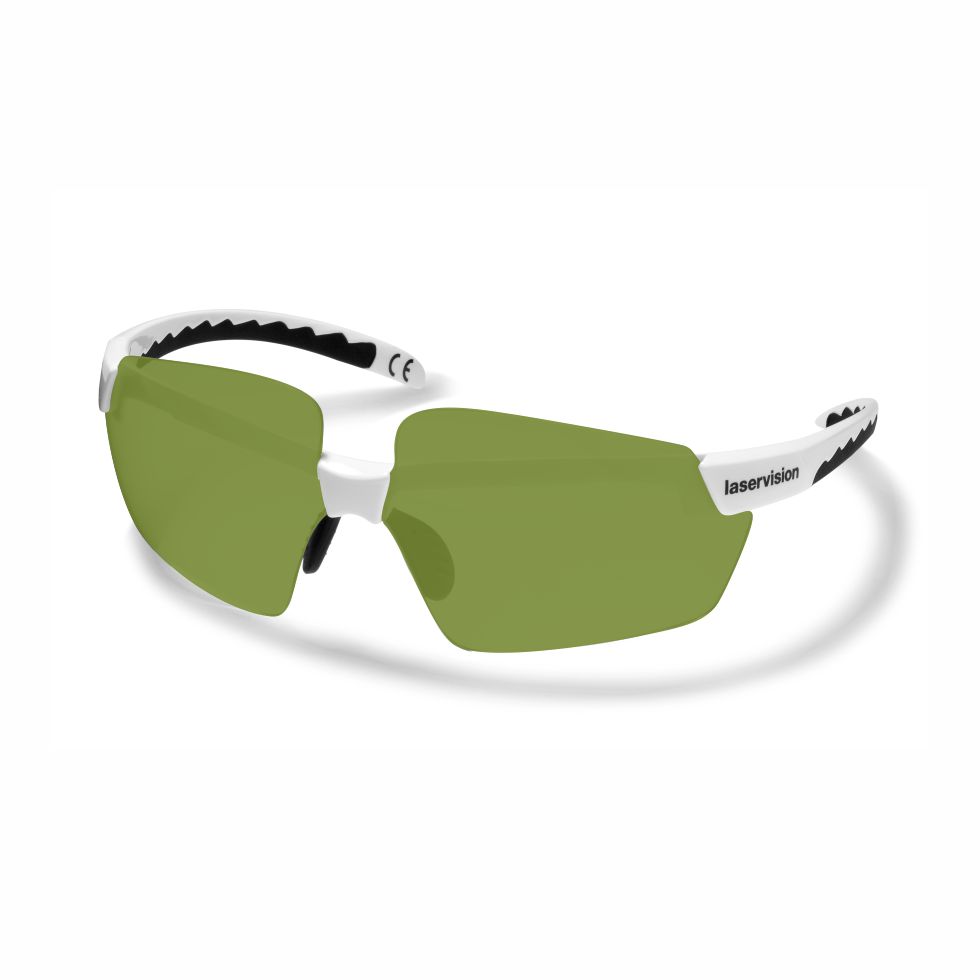

laser safety spectacle F47P1L12
The laser safety spectacle F47.P1L12.1001 with the light green filter is especially suitable for UV lasers, IR diode lasers, disk, Nd: YAG, fiber lasers and alexandrite lasers and are therefore considered to be broadband filters for many medical applications. It has full protection in the range from 180nm to 1100nm according to EN 207 and has M protection levels in the entire range. The sporty, lightweight 2-lens eyewear with low weight and base curve 8 have good visual brightness and a daylight transmission (VLT) of approx. 30%. The laser safety spectacle can be supplemented with a special adapter from laservision with an LED light or a magnifying glass. laservision recommends the professional cleaning station (A99.CLSTA.1300) for cleaning the laser safety eyewear.
- Order number: F47P1L121001
- GTIN: 4050369057289
- Pack unit: 1 pieces
- Weight incl. packaging: 0.23 kg
- Weight excl. packaging 0.03 kg
20% discount on all F47 laser safety spectacles
*1Get 20% discount on all F47 laser safety spectacles in our laservision webshop until 31.03.2023! The discount will be applied automatically in your shopping cart.
Protection within the near infrared spectral range between 700nm and 1400nm
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Filter curvature: |
Base curve 8
|
| Coating: |
no coating
|
| Protection Class / Norm: |
EN 207 full protection
EN 208 Alignment protection |
| Cushion: |
No cushion
|
| Frame type: |
Spectacle
|
| Properties: |
2-Komponenten-Softbügel
Anpassbare Nasenauflage Lightweight M-protection rating |
| Frame: |
F47
|
| Filter: |
P1L12
|
| Filter colour: |
Light green
|
| colour recognition: |
Good
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
near infrared
ultraviolett visible |
| Visual brightness: |
Good
|
| VLT (approx.): |
30%
|
| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD9+) | D LB9 + IR LB4 + M LB6Y |
| >315 - 445 | (OD6+) | DIRM LB6 |
| 630 - 650 | (OD1-2) | 0,01W 2x10E-6J RB1 |
| 705 - <720 | (OD4+) | DIRM LB4 |
| 720 - <735 | (OD5+) | DIRM LB5 |
| 735 - <745 | (OD6+) | DIRM LB6 |
| 745 - <755 | (OD7+) | D LB6 + IRM LB7 |
| 755 - 1100 | (OD8+) | D LB6 + IR LB8 + M LB8Y |
