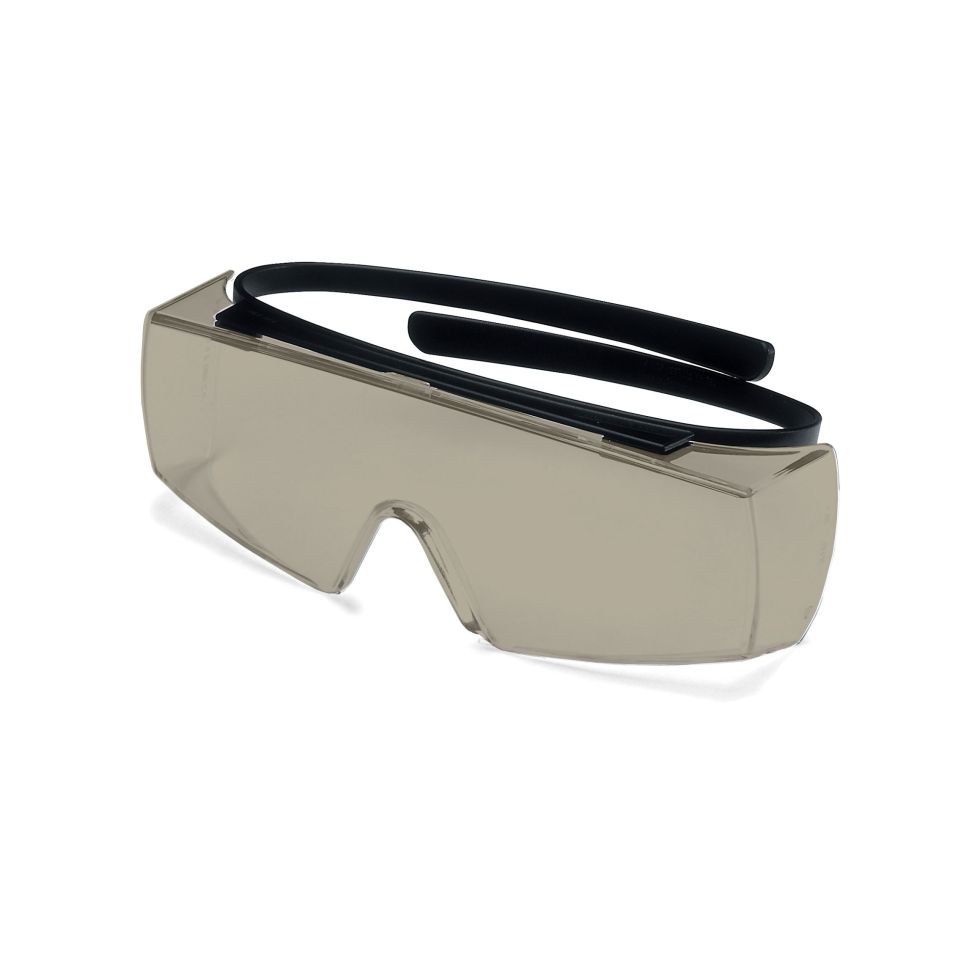

laser safety spectacle F18P1M02
The laser safety goggle F18.P1M02.1001 with flex temples is suitable for CO2, Nd:YAG as well as for fiber- and disc laser. It offers full protection acc. EN 207. The laser safety filter P1M02 is deemed to be a narrow-band filter and is suitable for many medical applications. The eyewear comes in a sustainably produced hexagonal cardboard box, along with a microfiber pouch and a cord to hang the goggles on. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F18P1M021001
- GTIN: 4050369031944
- Pack unit: 1 pieces
- Weight incl. packaging: 0.23 kg
- Weight excl. packaging 0.04 kg
Protection range
Infrared
Protection in the infrared spectral range above 1400nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
| Coating: |
no coating
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
OTG with temples
|
| Properties: |
Lightweight
M-protection rating |
| Frame: |
F18
|
| Filter: |
P1M02
|
| Filter colour: |
Light grey
|
| colour recognition: |
Very good
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
Infrared
near infrared ultraviolett |
| Visual brightness: |
Excellent
|
| VLT (approx.): |
45%
|
| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD9+) | D LB9 + IR LB4 + M LB6Y |
| 1002 - <1020 | (OD4+) | DIRM LB4 |
| 1020 - <1030 | (OD6+) | DIRM LB6 |
| 1030 - 1070 | (OD7+) | D LB6 + IR LB7 + M LB7Y |
| >1070 - 1080 | (OD6+) | DIRM LB6 |
| >1080 - 1096 | (OD4+) | DIRM LB4 |
| 9000 - 11500 | (OD6+) | DI LB4 |
