laser safety spectacle R01P1P20

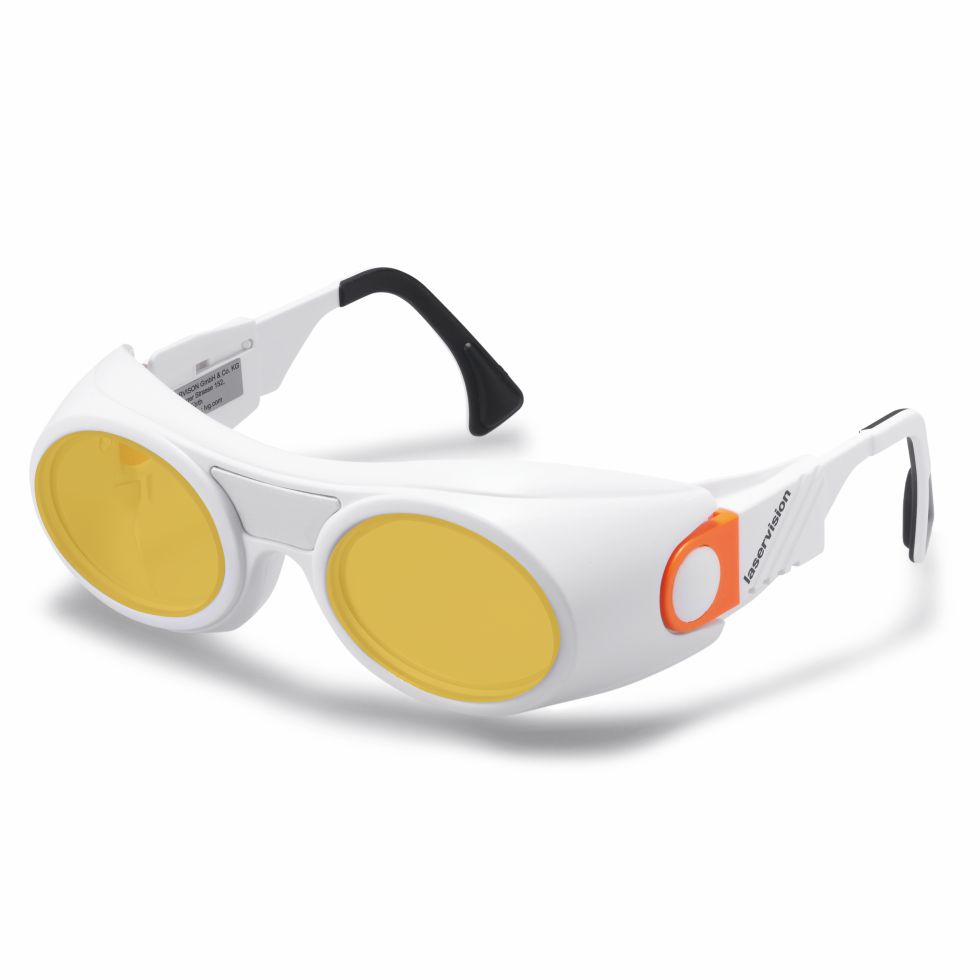

The laservision laser safety eyewear R01.P1P20.1001 is particularly suitable for UV lasers and blue lasers up to 466 nm as well as IR lasers (diode, Nd: YAG, disk and fiber lasers) in the range 880 - 1075 and CO2 lasers and has a daylight transmission of approx. 52%. The full protection spectacle can be combined with an Rx- corrective insert. The small, reinforced goggle with adjustable temples and a gold-colored filter is characterized with a light weight and a really good field of view. The shipment includes a spectacle cord and a metal box, which can also be used as its storage box.
- Order number: R01P1P201001
- GTIN: 4050369053595
- Pack unit: 1 pieces
- Weight incl. packaging: 0.44 kg
- Weight excl. packaging 0.08 kg
Protection in the infrared spectral range above 1400nm
Protection within the near infrared spectral range between 700nm and 1400nm
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Coating: |
no coating
|
| Filter curvature: |
Flat filter
|
| Protection Class / Norm: |
EN 207 full protection
|
| Cushion: |
No cushion
|
| Frame type: |
Spectacle with Rx insert option
|
| Properties: |
Adjustable temples
M-protection rating |
| Frame: |
R01
|
| Filter: |

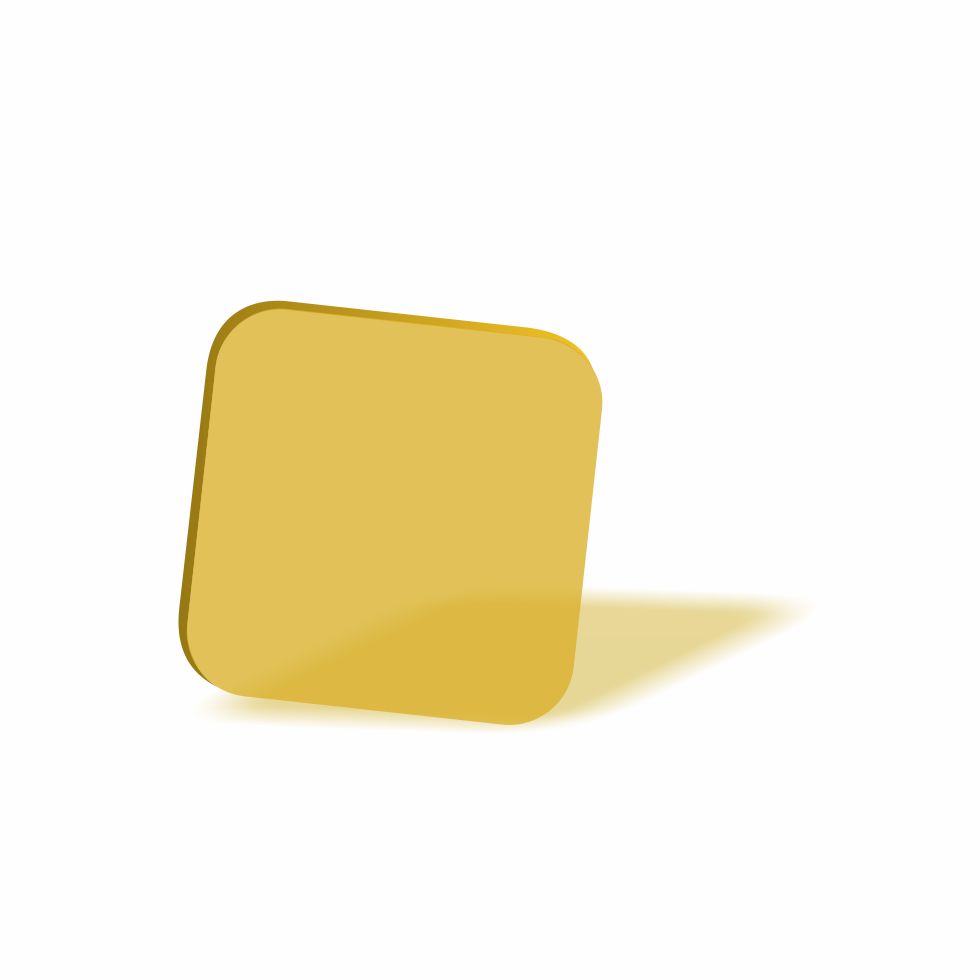

P1P20
|
| Filter colour: |
Gold
|

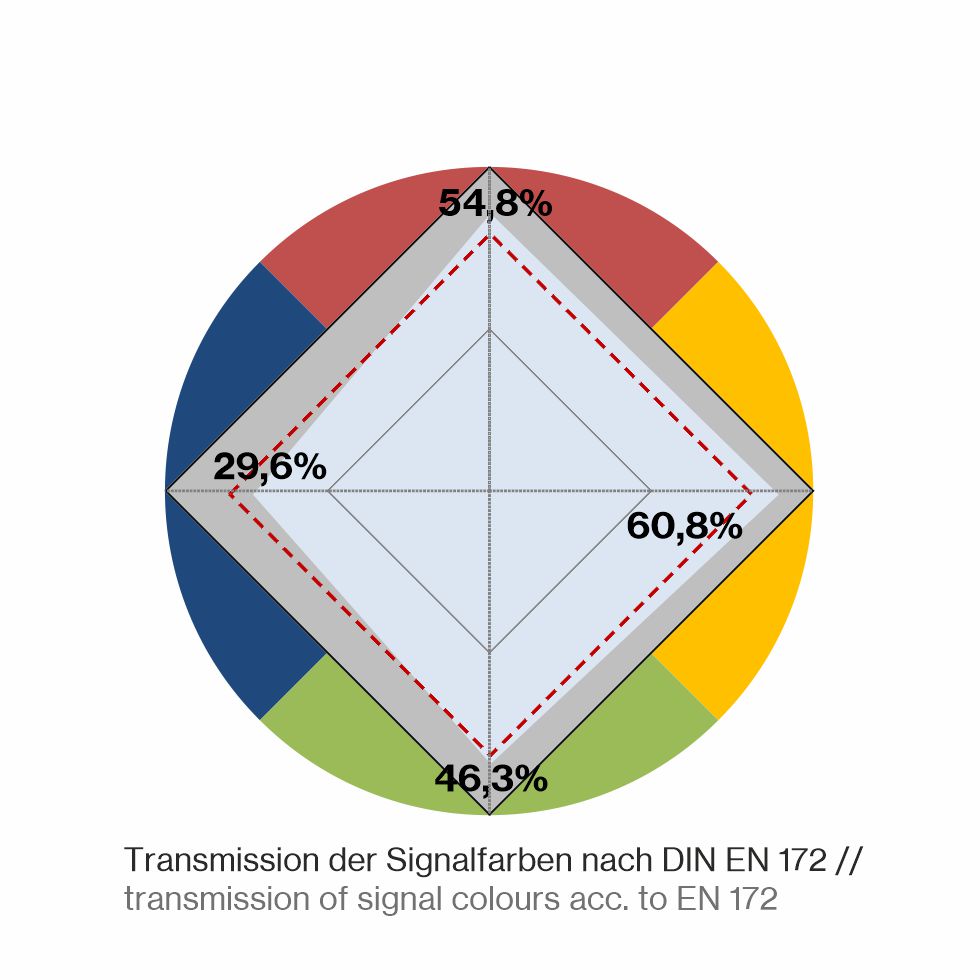

| colour recognition: |
Good
|
| Filter thickness: |
ca. 6mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
Infrared
near infrared ultraviolett visible |
| Visual brightness: |
Very good
|
| VLT (approx.): |
52%
|

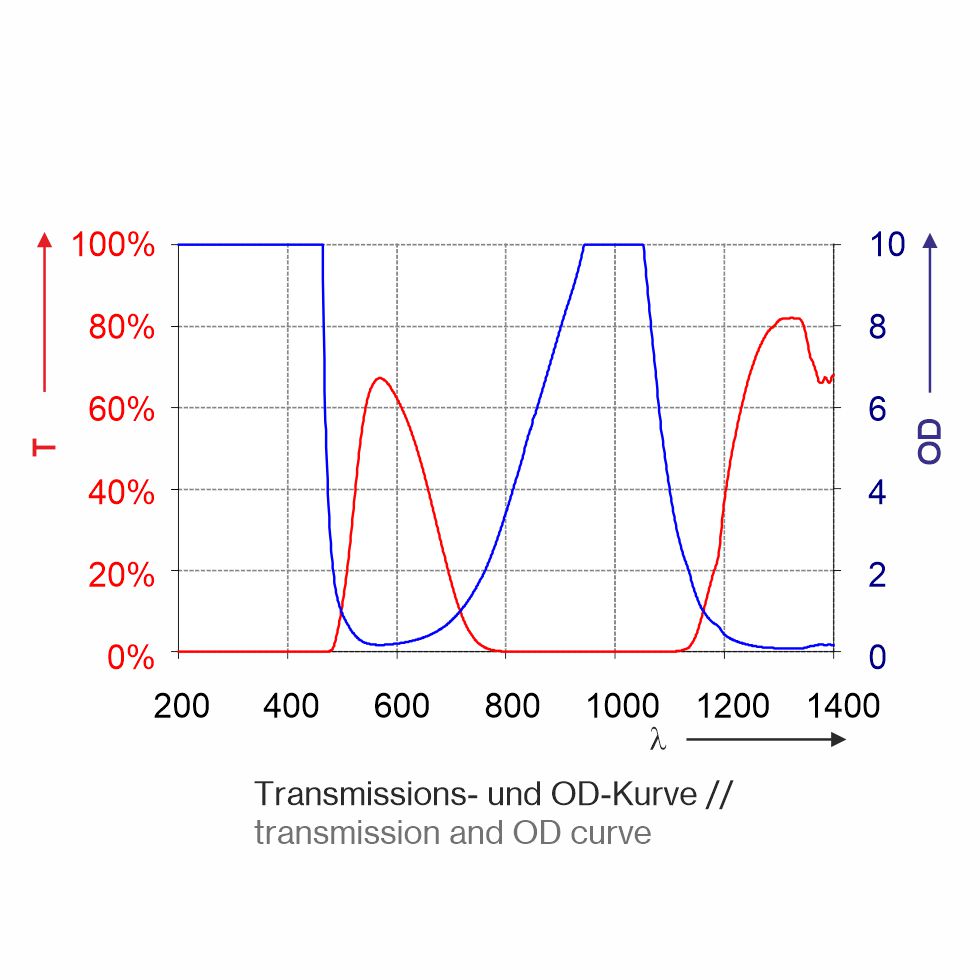

| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 462 | (OD8+) | D LB7 + IR LB8 + M LB8Y |
| >462 - 466 | (OD6+) | DIRM LB6 |
| >466 - 472 | (OD4+) | DIRM LB4 |
| >472 - 490 | (OD1+) | DIRM LB1 |
| 735 - <830 | (OD1+) | DIRM LB1 |
| 830 - <880 | (OD4+) | DIRM LB4 |
| 880 - <910 | (OD6+) | DIRM LB6 |
| 910 - <940 | (OD7+) | DIRM LB7 |
| 940 - 1055 | (OD8+) | D LB7 + IR LB8 + M LB8Y |
| >1055 - 1064 | (OD7+) | DIRM LB7 |
| >1064 - 1075 | (OD6+) | DIRM LB6 |
| >1075 - 1084 | (OD5+) | DIRM LB5 |
| >1084 - 1095 | (OD4+) | DIRM LB4 |
| >1095 - 1150 | (OD1+) | DIRM LB1 |
| 3945 - <5180 | (OD4+) | DI LB4 + R LB3Y |
| 5180 - 25000 | (OD7+) | D LB5 + I LB5Y + R LB3Y |
