laser safety window T1K06

The laservision mineral glass laser safety window 000.T1K06.1001 with lamination provides a very high M LB9 protective effect within the NIR spectral area (1,050-1,400nm). The light grey filter material features a 60% VLT and is customized available up to a size of 297x210nm. The thickness is approximately 6,6 - 7,4 mm. This window is certified acc. EN207 and CE marked with 5 and 10 sec. of test time.

€786.00*

Prices plus VAT plus shipping costs

  • The delivery time is 1-3 weeks.

  • Order number: 000T1K061001
  • GTIN: 4050369012974
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,45 kg
  • Weight excl. packaging: 0,36 kg
available standard sizes (mm)

€786.00*

Prices plus VAT plus shipping costs

Product number: 000T1K061001
Product information "laser safety window T1K06"

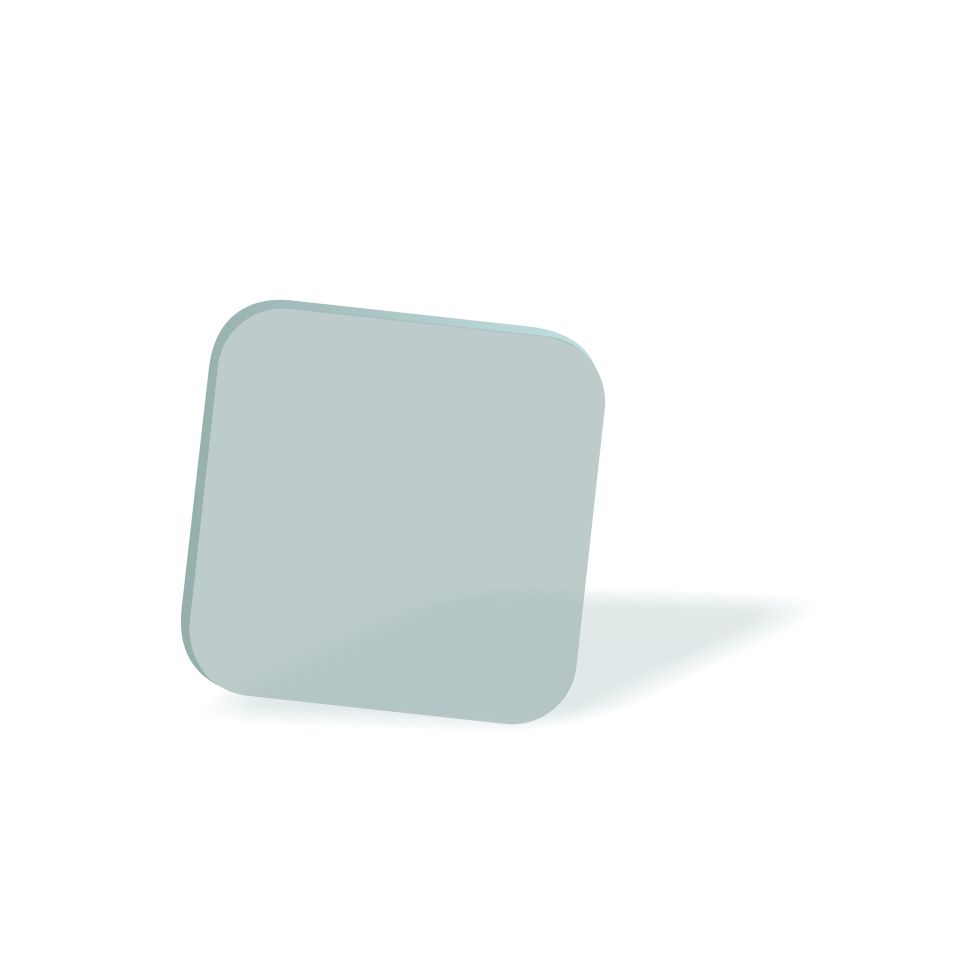

The laser safety window type 000.T1K06.1001 consists of a light grey, absorbing mineral glass without additional reflecting coating. The laser protection effect is based on absorption of the laser light within the bulk material. The filter Type T1K06 has a very good daylight transmission of approx. 60% which is comparable to that of a normal window. The colour recognition is unrestricted. The laser safety window T1K06 is CE certified and available in different sizes. The laser safety window is especially suitable for IT-lasers at 900-11,500nm.  Please calculate the required protection levels and compare them with the details at the laser safety glass before mounting and using the laser safety filter.

Specifications

Protection range
Icon-NIR
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Icon-IR
Infrared
Protection in the infrared spectral range above 1400nm
Coating: no coating
Colour: light grey
Filter material: Mineral glass
Filter technology: Absorption filter
Filter thickness: ca. 6,6 - 7,4 mm
Properties: No neutral glass lamination
Protection Class / Norm: EN 207 full protection, EN 60825
Protection range: Infrared, near infrared
VLT (approx.): 60%
Visual brightness: Very good
colour recognition: Excellent
950-1399nm | 143 kW/m2 | T2 | tmax = 105s
3000-25000nm | 221 kW/m2 | T2 | tmax = 105s

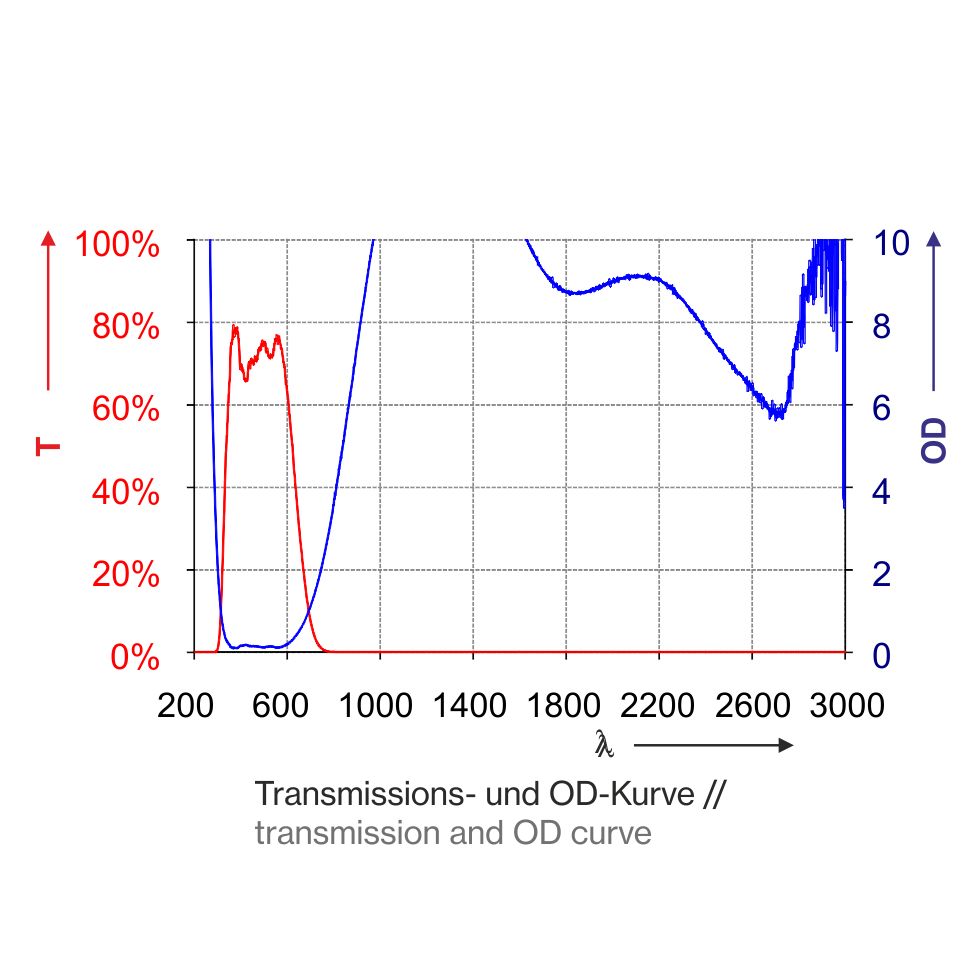

WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
730 - <780 (OD1+) DIRM LB1
780 - <808 (OD2+) DIRM LB2
808 - 840 (OD3+) DIRM LB3
>840 - 870 (OD4 +) DIRM LB4 (OD4 +)
>870 - 885 (OD5+) DIRM LB5
>885 - 900 (OD6+) DIRM LB6
>900 - 950 (OD7+) DIRM LB7
>950 - 1000 (OD8+) D LB7 + IRM LB8
>1000 - 1400 (OD9+) D LB7 + IR LB8 + M LB9
>1400 - 3500 (OD5+) DI LB5 + RM LB4
>3500 - 25000 (OD10+) DIM LB5 + R LB3Y
