laser safety window P1L03

The plastic laser safety window P1L03 from laservision is a standard window for multiple frequent NIR-laser systems in the UV-, VIS (532nm) and the NIR (800-1070nm) area. The red-brown filter material features 26% VLT and is user specific available up to sizes 1219x915mm. The thickness is 3mm. It is characterised by high OD values in the following ranges, among others: OD 10+ from 180nm to 350nm, OD 8+ from 460 - 528nm as well as from 970 - 1030nm. The window is CE certified according to EN 60825-4 and has additionally defined DIN 207 LB protection levels, which are confirmed by manufacturer declaration on the basis of external test reports.

  • Order number: 000P1L031001
  • GTIN: 4050369026919
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,07 kg
  • Weight excl. packaging: 0,07 kg
available standard sizes (mm)
Product number: 000P1L031001
Product information "laser safety window P1L03"

The laser safety window type P1L03 is a red-brown absorbing laser protection filter, based on PMMA, without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 26%. The laser safety filter laservision P1L03 is CE certified and is available in different dimensions. It is especially suitable for UV and green lasers, IR pump diodes and YAG-lasers. Please calculate required optical density levels before using the laser safety window and compare with the window provided.

Specifications

Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Coating: no coating
Colour: red brown
Filter material: Plastic
Filter technology: Absorption filter
Filter thickness: ca. 3mm
Protection Class / Norm: EN 207 full protection according to manufacturer's declaration , EN 60825
Protection range: near infrared, ultraviolett, visible
VLT (approx.): 26%
Visual brightness: Sufficient
colour recognition: Limited
880-1064nm | 91,7 kW/m2 | T2 | tmax = 105s

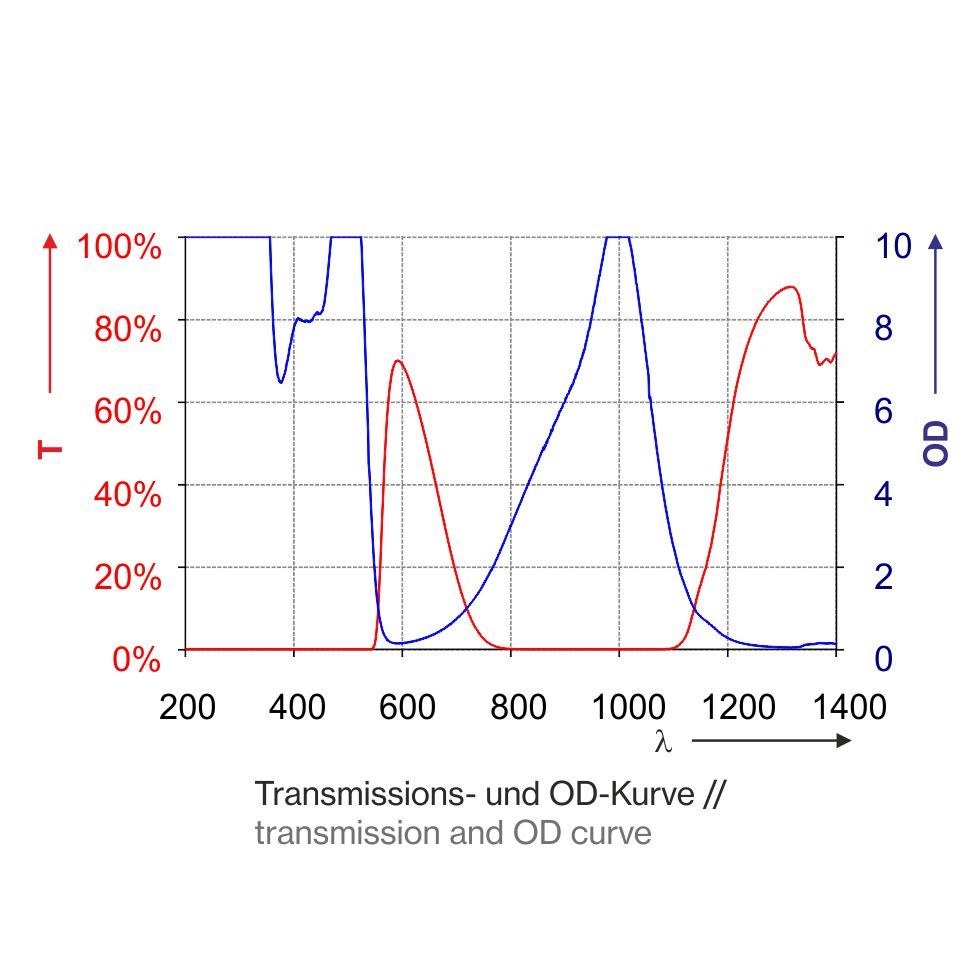

WAVELENGTH (NM) OD
180 - 315 (OD10+)
>315 - 350 (OD10+)
>350 - <410 (OD6+)
410 - <460 (OD7+)
460 - 528 (OD8+)
>528 - 530 (OD7+)
>530 - 532 (OD6+)
>532 - 535 (OD5+)
>535 - 540 (OD4+)
770 - <800 (OD2+)
800 - <830 (OD3+)
830 - <870 (OD4+)
870 - <910 (OD5+)
910 - <940 (OD6+)
940 - <970 (OD7+)
970 - 1030 (OD8+)
>1030 - 1044 (OD7+)
>1044 - 1050 (OD6+)
>1050 - 1068 (OD5+)
>1068 - 1078 (OD4+)
>1078 - 1090 (OD3+)
5400 - <10600 (OD5+)
10600 - 11000 (OD6+)
WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
180 - 315 (OD10+) D LB6 + IR LB3 + M LB6Y
>315 - 350 DIR LB5 + M LB5Y
>350 - <410 DIR LB5 + M LB5Y
410 - <460 (OD6+) DIR LB5 + M LB5Y
460 - 528 (OD7+) DIR LB5 + M LB5Y
>528 - 530 (OD8+) DIR LB5 + M LB5Y
>530 - 532 (OD7+) DIR LB5 + M LB5Y
>532 - 535 (OD6+) DIR LB5 + M LB5Y
>535 - 540 (OD5+) DIRM LB4
770 - <800 (OD2+) DIRM LB2
800 - <830 (OD3+) DIRM LB3
830 - <870 DIRM LB4
870 - <910 (OD5+) DI LB5 + RM LB5Y
910 - <940 (OD6+) DI LB5 + RM LB5Y
940 - <970 (OD7+) DI LB5 + RM LB5Y
970 - 1030 (OD8+) DI LB5 + RM LB5Y
>1030 - 1044 (OD7+) DI LB5 + RM LB5Y
>1044 - 1050 (OD6+) DI LB5 + RM LB5Y
>1050 - 1068 (OD5+) DI LB5 + RM LB5Y
>1068 - 1078 (OD4+) DIRM LB4
>1078 - 1090 (OD3+) DIRM LB3

Other products in this category

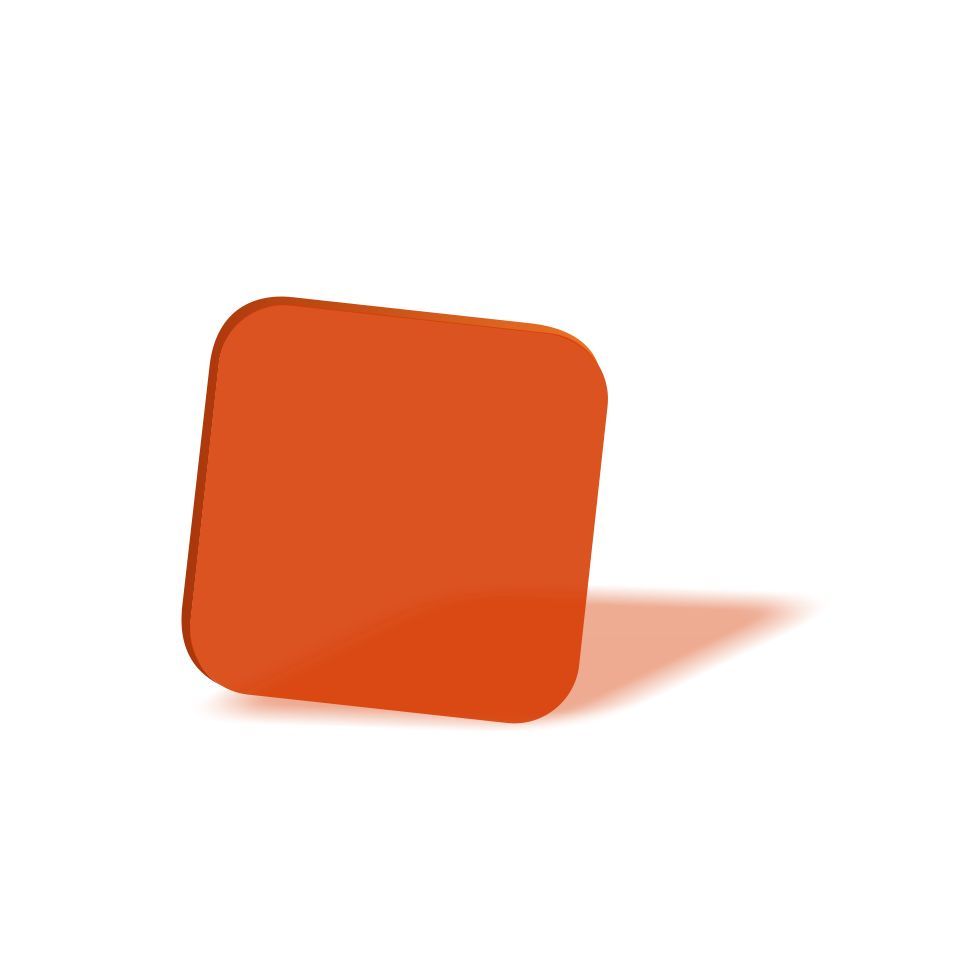

laser safety window T1M01
available standard sizes (mm): 200 x 100
The mineral glass laser safety window T1M01 offers high protection against UV, NIR and IR lasers (180-532nm and 808-11500nm). Buy from laservision!
laser safety window P1N01
available standard sizes (mm): 200 x 100
The plastic laser safety window P1N01 is a window for green laser systems up to 535nm. Buy from laservision!

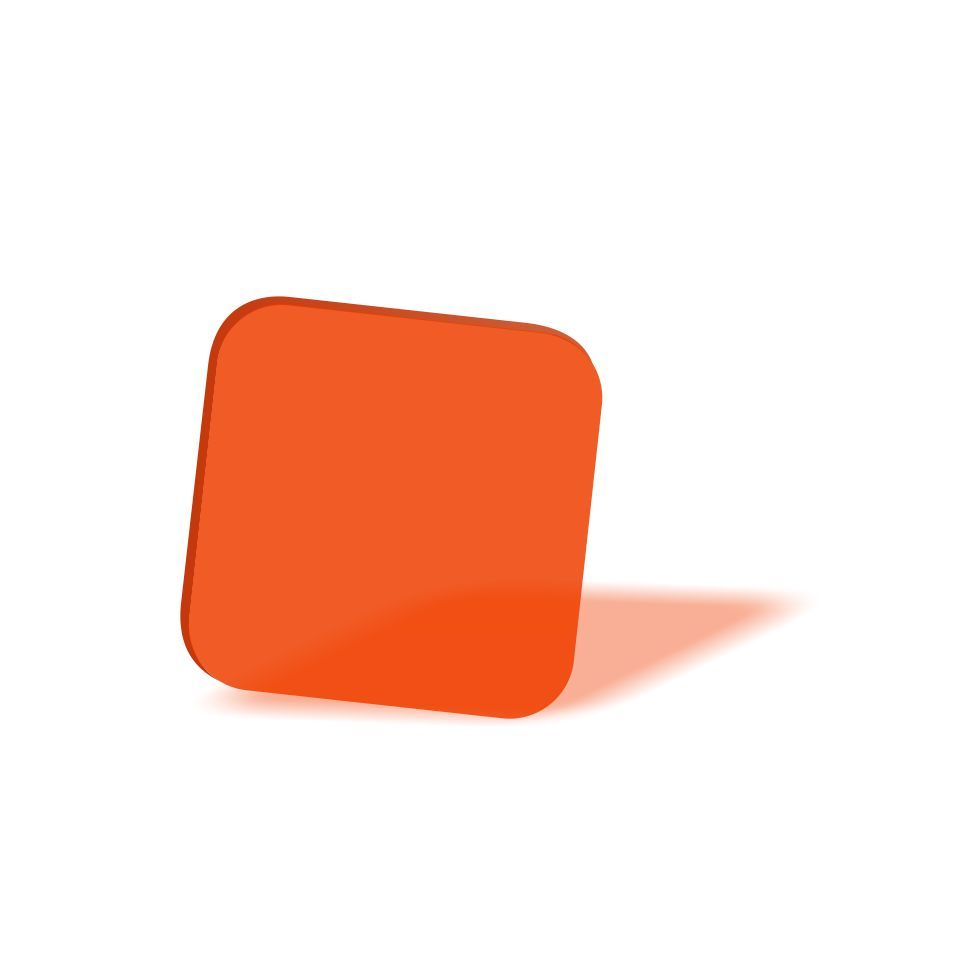

laser safety window T1E02
