E25.M7P06.1001 (E25 basic module)

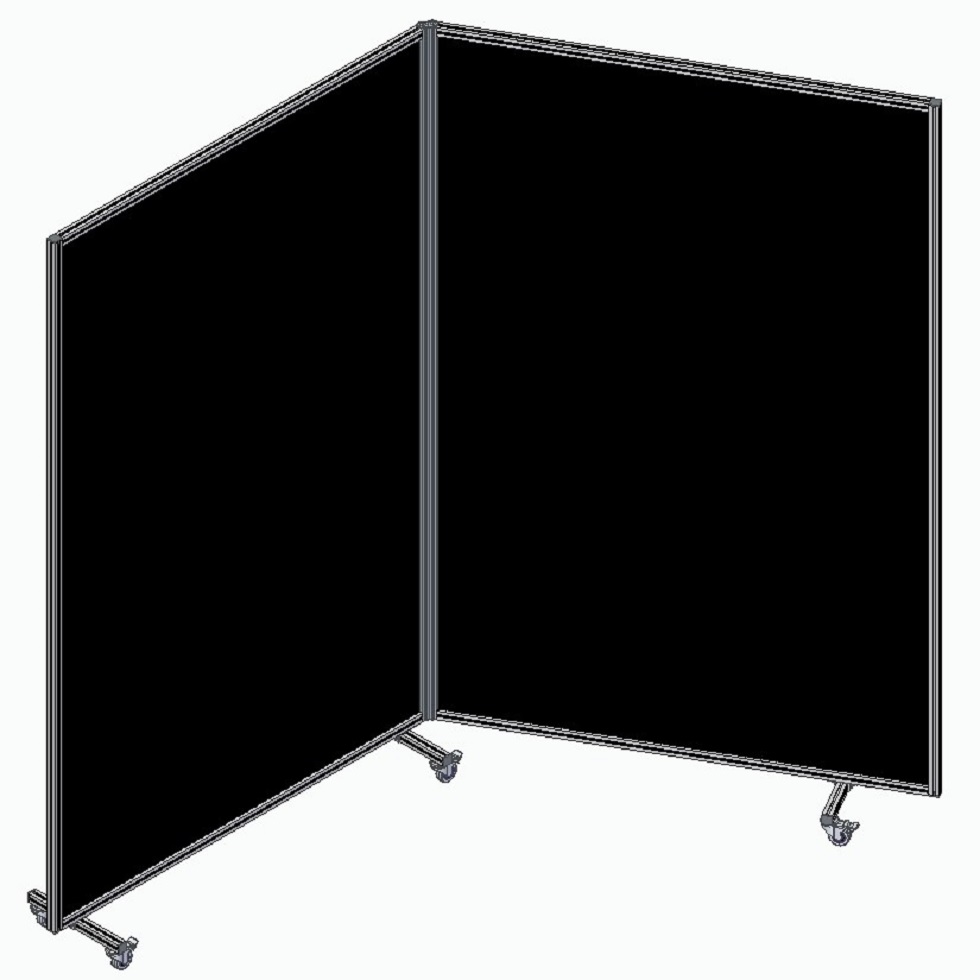

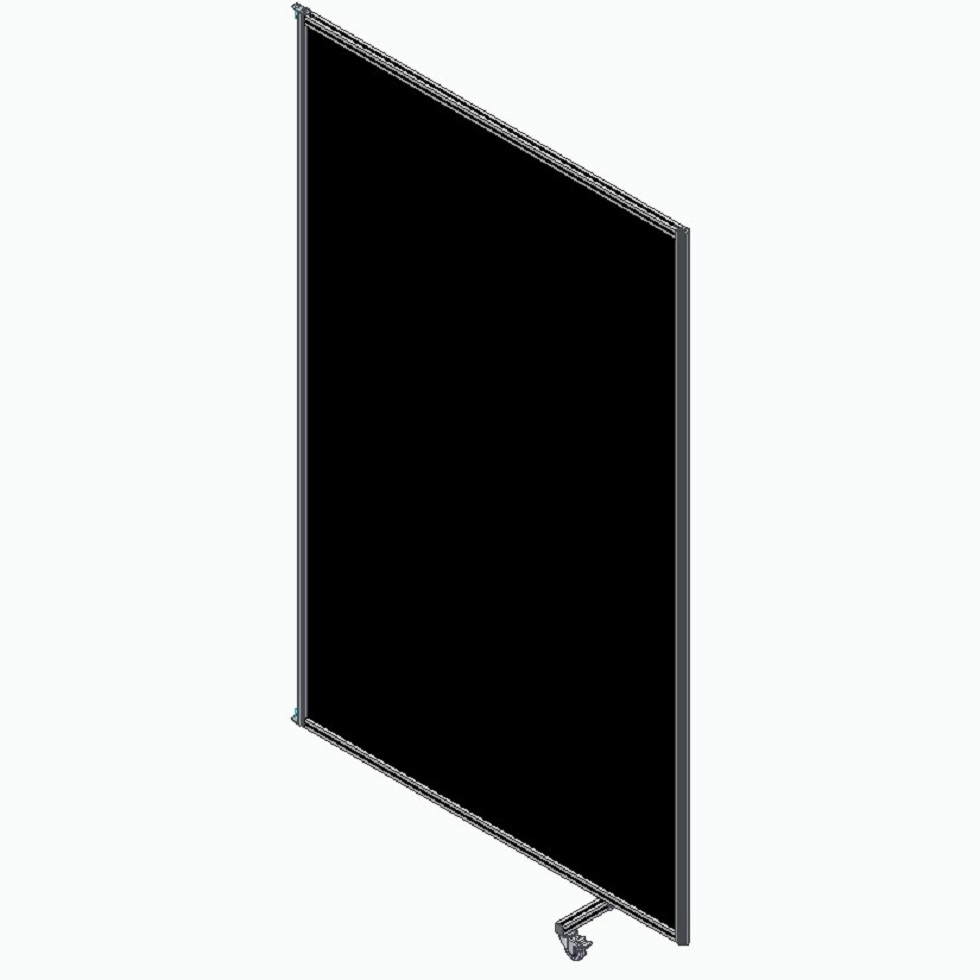

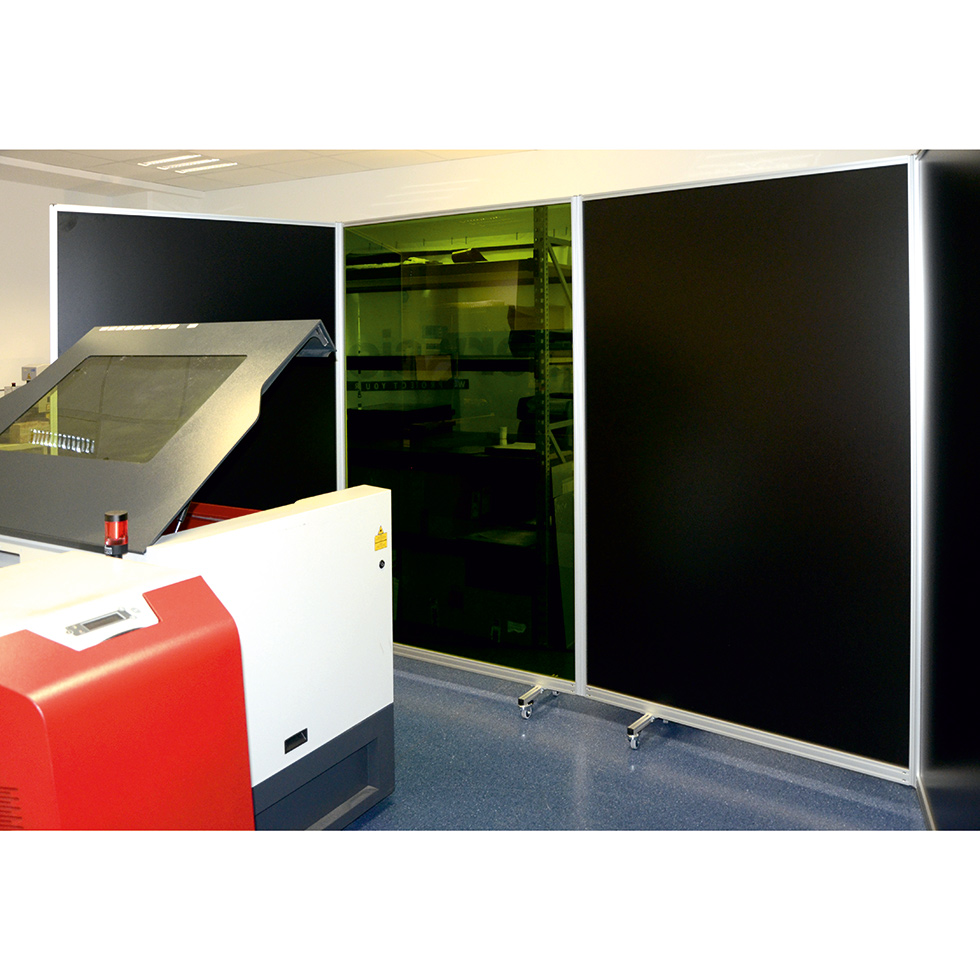

The E25 basic module E25.M7P06.1001 is formed by an E25 start and end module of the modular laser protection folding wall system from laservision. a completely assembled laser protection wall with the dimensions 2100x1257x308mm (HBT per module). Depending on the application, this can be expanded by up to 7 additional intermediate modules (E25.M7P06.1002). The ready-to-use basic module is filled with the plate material M7P06 as standard, which is based on a special aluminum sandwich structure with coated aluminum cover plates (black). The partition can e.g. can be set up as a room divider in laboratories or as a laser-safe partition around optical tables.
- Order number: E25M7P061001
- GTIN: 4050369052161
- Pack unit: 1 pieces
- Weight incl. packaging: 27.40 kg
- Weight excl. packaging 27.40 kg
The special feature of the laser protection folding wall is the connection of the individual segments with the new, revolutionary hinge system. With this hinge, a completely light and laser beam-proof but flexible connection is achieved without an additional cover. No matter what angle (0 ° - 360 °) the wall is set up, there is protection against radiation. A stable stand is guaranteed at all times thanks to the 30cm long boom with lockable castors and the low overhang of the boom of only 15cm on each side significantly reduces the risk of tripping over.
The entire folding wall system from laservision has been tested and certified in accordance with DIN EN 60825-4.
Due to the flexibility of the hinge, the laser protection folding wall system can be stored in a very space-saving manner. To do this, the modules are folded together and secured in the end position with the supplied elastic strap.

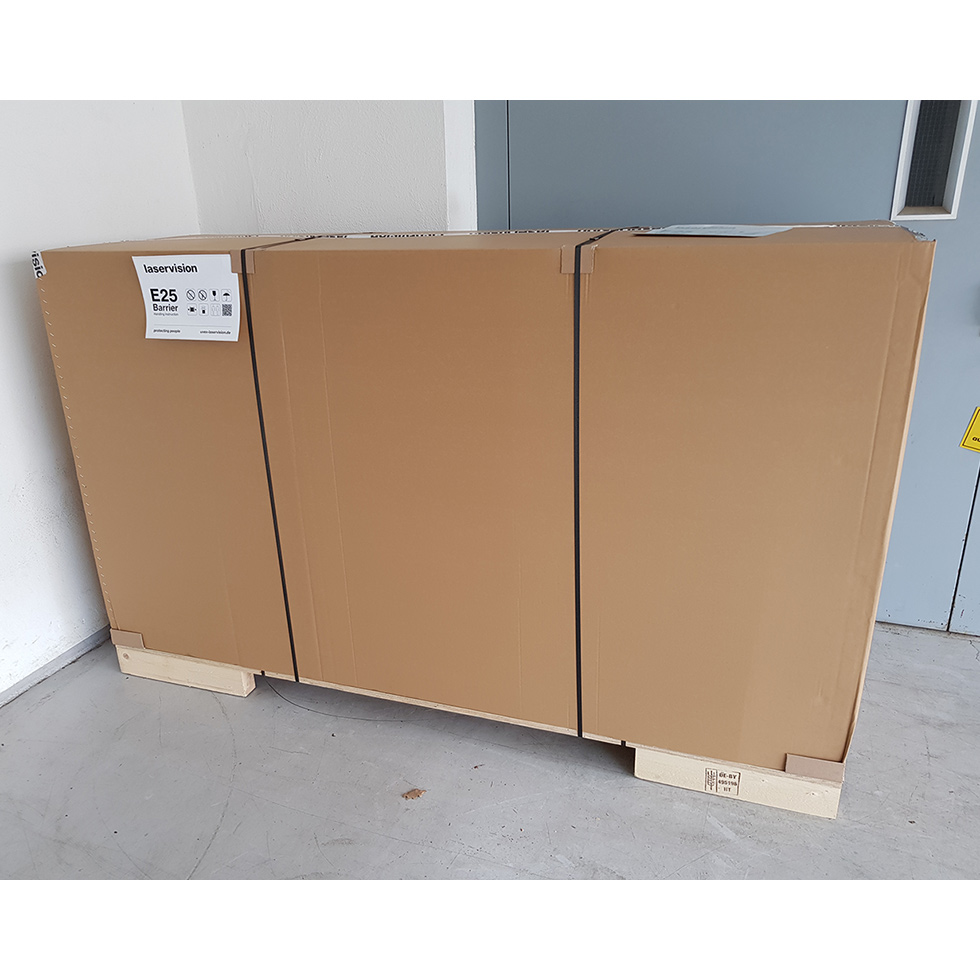

Please note that for each order of a E25 modular folding wall system, the packaging E25.VPACK.1000 must be orderd additionally. Please also add it to your basket.
The cost-related shipping costs (delivery due to the size and weight via freight forwarder) are charged in addition.
Highlights
- A ready-to-use system without any assemply
- The basic system consists of the start and end modules
- Simple and quick assembly, safe handling
- Filling materials are certified according to EN 60825-4
- Tested light and laser beam-proof hinge
- Lase rsafe in every angle (0°-360°)
- Space-saving storage
Protection in the infrared spectral range above 1400nm
Protection within the near infrared spectral range between 700nm and 1400nm
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Colour: |
black
|
| Protection range: |
Infrared
near infrared ultraviolett visible |
| Protection Class / Norm: |
EN 12254
EN 60825-4 |
| Properties: |
both-sides usable
freely selectable number of modules proven hinge system stable standing standard plate material M7P06 |
| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | – | 180-315 D AB9 + IR AB4 + M AB6Y |
| >315 - 1050 | – | >315-1050 D AB8 + IR AB9 + M AB10 |
| >1050 - 1400 | – | >1050-1400 D AB7 + IR AB9 + M AB10 |
| >1400 - 25000 | – | >1400-25000 D AB5 |
| 1070nm | 960 kW/m2 | T2 | tmax = 210s |
| 9000-11000nm | 615 kW/m2 | T2 | tmax = 105s |
