laser safety spectacle F46P1E01

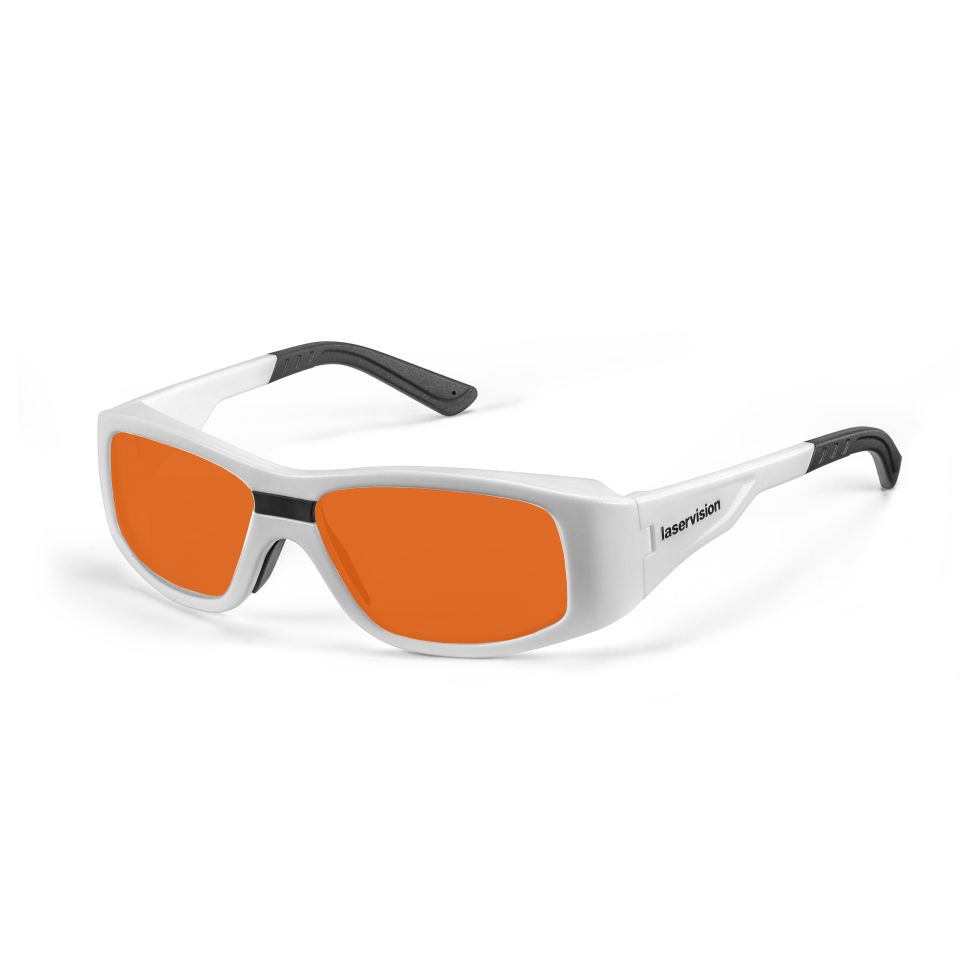

The laservision laser safety eyewear F46.P1E01.1001 with orange filters is suitable for blue, green and UV lasers (2nd and 3rd harmonics of Nd: YAG). The multifunctional eyewear with the Clipnetic system can be worn as over glasses (OTG) over prescription filters in combination with the Clipnetic Cover (A46COVER1000) or as ordinary laser safety goggle with the formable Clipnetic Flex Nose (A46NOSE00001). It can also be equipped with an RX insert (A46RXINS00001) through the magnet system. laservision also offers a glazing service for this purpose, so the way to the optician is no longer necessary. The F46 is very cost-effective, as it is very suitable for changing users within the area of application. The scope of delivery includes all Clipnetic features, which can also be reordered optionally at any time. laservision recommends the professional cleaning station (A99CLSTA1300) for cleaning the laser safety eyewear.
- Order number: F46P1E011001
- GTIN: 4050369055810
- Pack unit: 1 pieces
- Weight incl. packaging: 0.20 kg
- Weight excl. packaging 0.05 kg
Protection within the ultraviolet spectral range between 180 and 400nm
Protection within the visible spectral range between 400 and 700nm
| Filter curvature: |
Base curve 6
|
| Coating: |
Anti-scratch on both sides
|
| Protection Class / Norm: |
EN 207 full protection
|
| Frame type: |
OTG with temples
Spectacle Spectacle with Rx insert option |
| Properties: |
Clipnetic-System
glazing service für rx-insert kaltverformbare Bügelenden |
| Frame: |
F46
|
| Filter: |
P1E01
|
| Filter colour: |
Orange
|
| colour recognition: |
Limited
|
| Filter thickness: |
ca. 2mm
|
| Filter material: |
Plastic
|
| Filter technology: |
Absorption filter
|
| Protection range: |
ultraviolett
visible |
| Visual brightness: |
Good
|
| VLT (approx.): |
40%
|
| wavelength (nm) | OD | Operating mode / Tested protection level |
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 532 | (OD8+) | D LB6 + IR LB8 + M LB8Y |
| >532 - 534 | (OD7+) | D LB6 + IRM LB7 |
| >534 - 536 | (OD6+) | DIRM LB6 |
| >536 - 538 | (OD5+) | DIRM LB5 |
| >538 - 540 | (OD4+) | DIRM LB4 |
| >540 - 542 | (OD3+) | DIRM LB3 |
| >542 - 545 | (OD2+) | DIRM LB2 |
| >545 - 550 | (OD1+) | DIRM LB1 |
