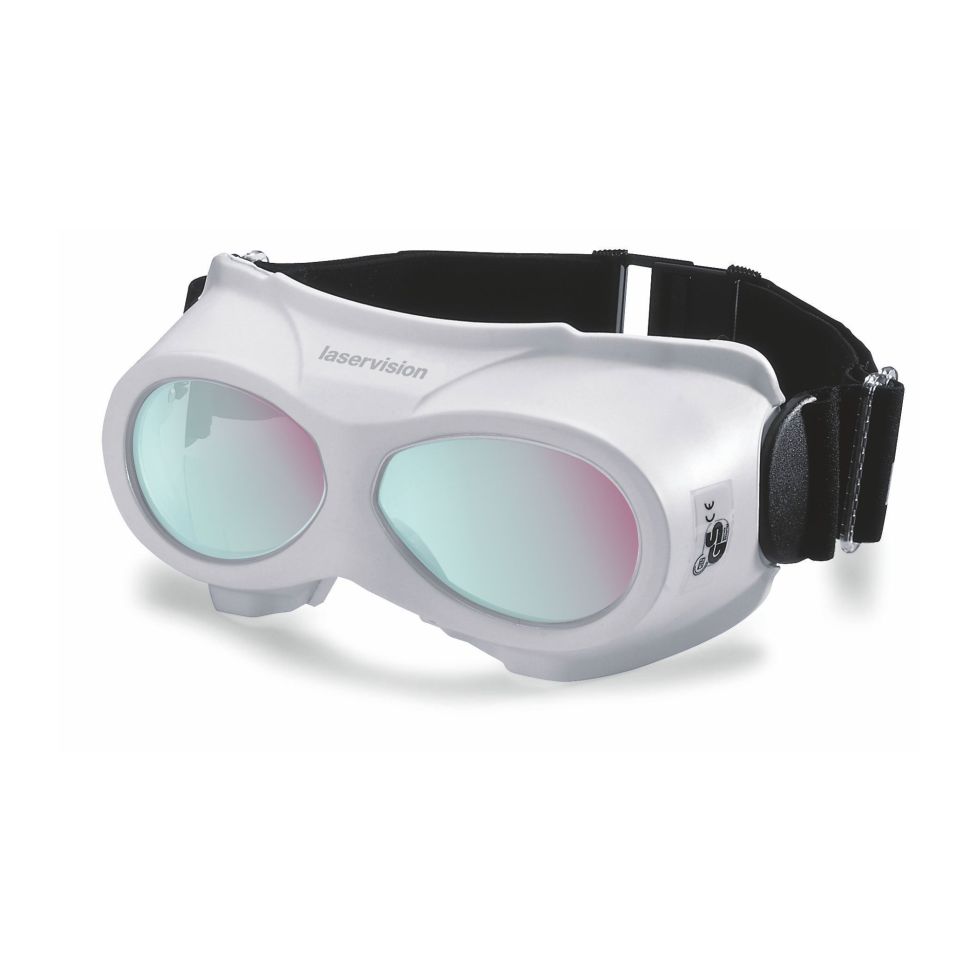

laser safety spectacle R14T1K17L
The laservision laser saftey goggle R14.T1K17.1003 with lip seal provides (L) a broad band and high laser protection for IR laser diodes, YAG and fiber lasers within the NIR and IR spectral range (745-11500nm). The goggle with its light grey, reflective filters can be worn over correction spectacles. The changeable click frame with lip seal (A14LIPSE1000) is preferably used by alternating users. The shipment includes a metal box which can also be used as a storage box.
- Order number: R14T1K171003
- GTIN: 4050369033405
- Pack unit: 1 pieces
- Weight incl. packaging: 0,66 kg
- Weight excl. packaging: 0,23 kg
Product number:
R14T1K171003
Product information "laser safety spectacle R14T1K17L"
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
cc-uvex.protectionrange.properties.coatedfilter.title
cc-uvex.protectionrange.properties.coatedfilter.description
| Coating: | Interference Coating (PVD) |
|---|---|
| Cushion: | Lip seal (L) |

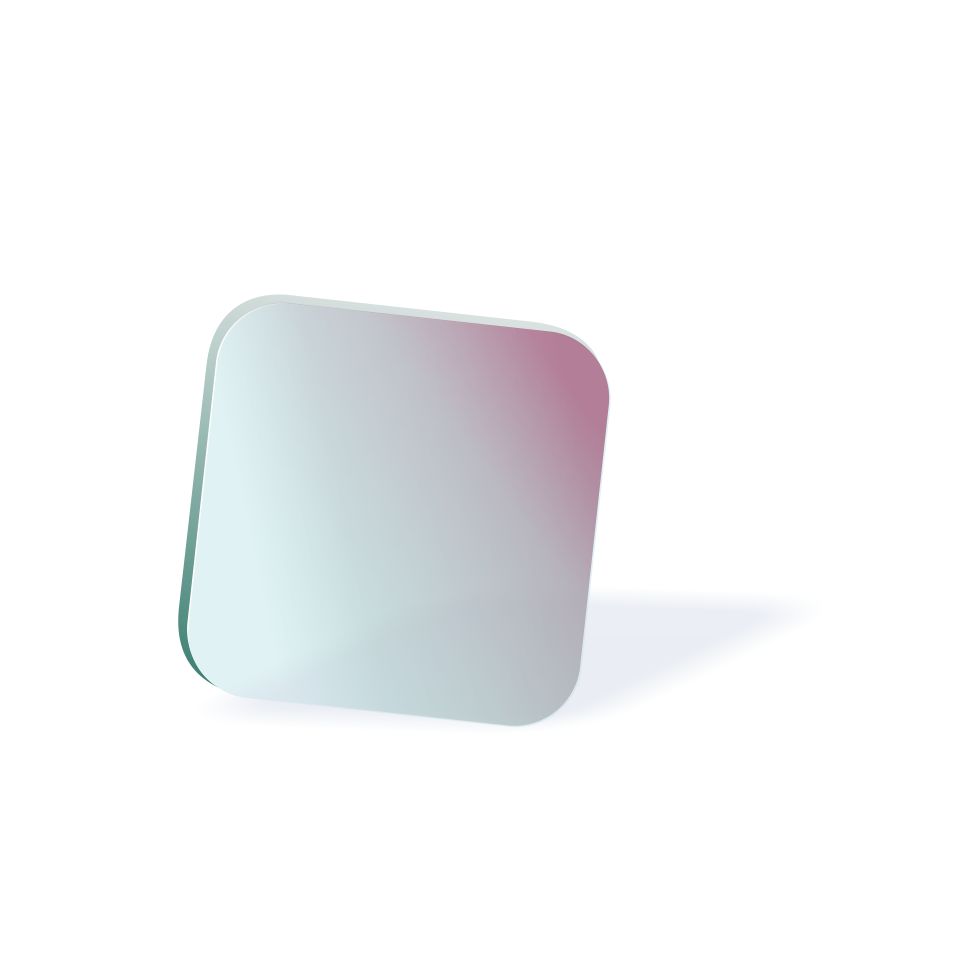

| Filter: | T1K17 |
| Filter colour: | Light grey |
| Filter curvature: | Flat filter |
| Filter material: | Coated glass |
| Filter technology: | Absorption filter, Reflection filter |
| Filter thickness: | ca. 6mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Properties: | M-protection rating, Neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Coated filter, Infrared, near infrared |
| VLT (approx.): | 65% |
| Visual brightness: | Very good |
| colour recognition: | Excellent |

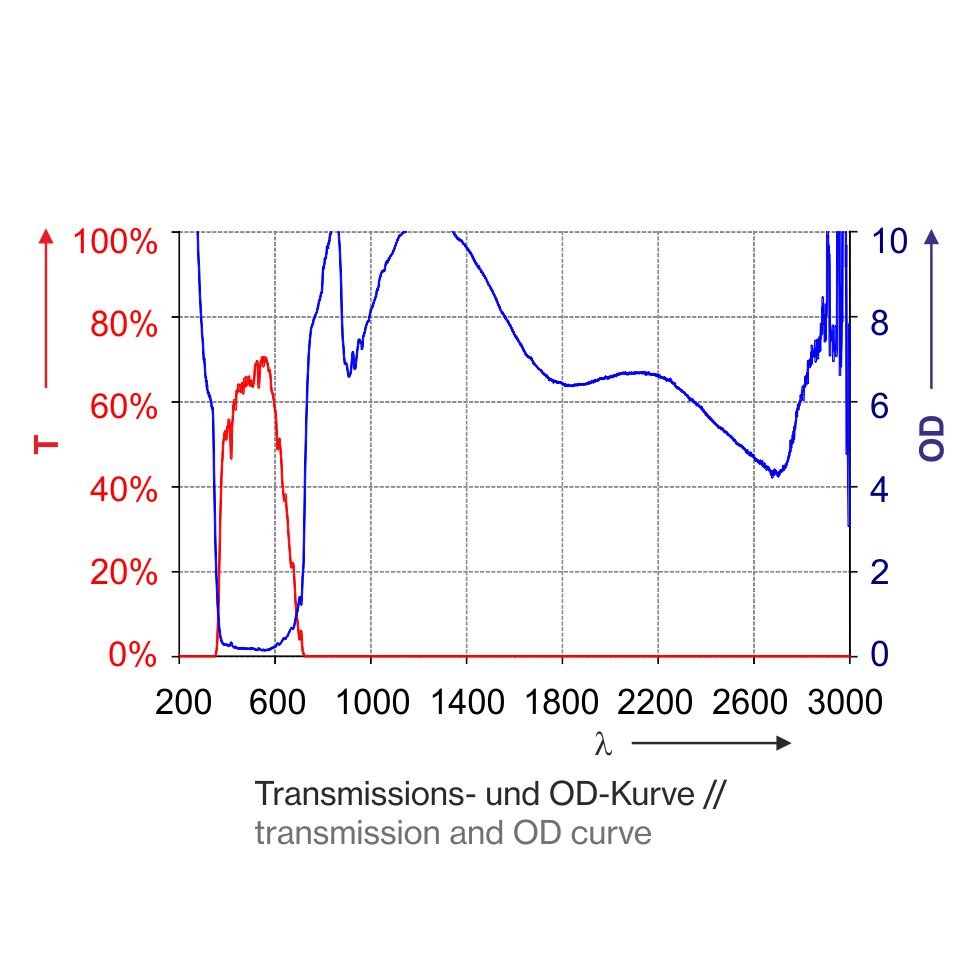

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 745 - 850 | (OD7+) | DIR LB6 + M LB7Y |
| >850 - 950 | (OD4+) | DIRM LB4 |
| >950 - <980 | (OD5+) | DIRM LB5 |
| 980 - <1030 | (OD7+) | DIRM LB7 |
| 1030 - 1400 | (OD8+) | D LB7 + IRM LB8 |
| >1400 - 3000 | (OD4+) | DIRM LB4 |
| >3000 - 25000 | (OD4+) | DIM LB4 + R LB3Y |
Accessories
Particle Pre-Filters for Swiss Air Respirator
Set of 50 pre-filters for the Swiss Air PAPR (powered air-purifying respirator) system. Buy from laservision!
Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Particle Filter for Swiss Air Respirator
Filter replacement for the Swiss Air PAPR system. Includes pre-filter. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Swiss Air PAPR
Swiss Air PAPR complete respiratory protection system incl. control panel, mask and filter. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Chest protector made of leather (long)
Chest protector made of leather (long) compatible with Panoramaxx and FS1. Buy from laservision!
Cushion frame with vented foam
The ventilated soft foam - cushion frame for the R14 (A14AIRED1000) for high wearing comfort and clear vision. Buy from laservision!
Mouth-nose Mask for Swiss Air PAPR
Replacement black mouth-nose mask for the Swiss Air Respirator. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!
Other products in this category

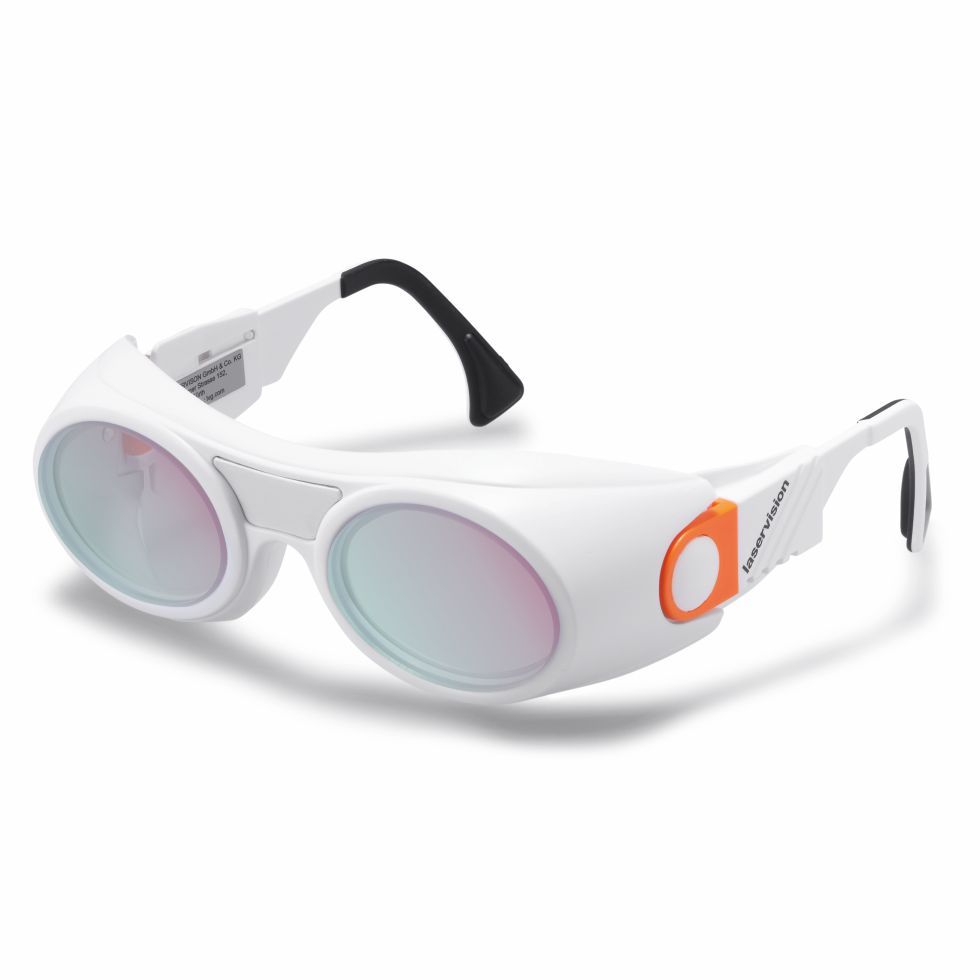

laser safety spectacle R01T1K17
