laser safety spectacle R14T1K13A

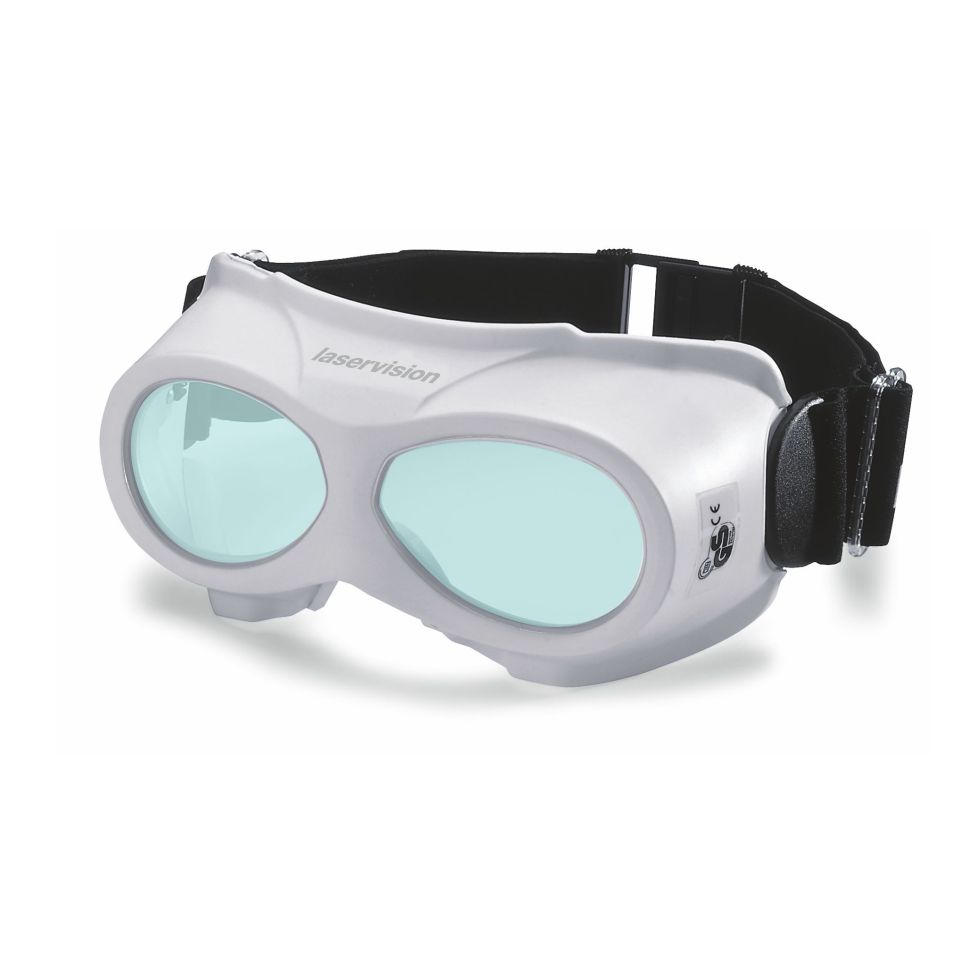

The laservision laser safety goggle R14.T1K13.1004 with an aired foam frame (A), provides protection at 808nm; 1064nm and within the area 1,500-1,600nm. The OTG goggle with light grey  filters can be worn over average large correction glasses. The changeable click frame with an aired foam (A14AIRED1000) makes the goggles particularly comfortable to wear and prevents fogging of the laser protection filters. A clear view is guaranteed even with a long wearing period. The shipment includes a metal box which can also be used as a storage box. The removable frame can optionally be bought in sets of 5.

  • Order number: R14T1K131004
  • GTIN: 4050369019447
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,60 kg
  • Weight excl. packaging: 0,21 kg
Product number: R14T1K131004
Product information "laser safety spectacle R14T1K13A"
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
Coating: no coating
Cushion: Aired foam (A)

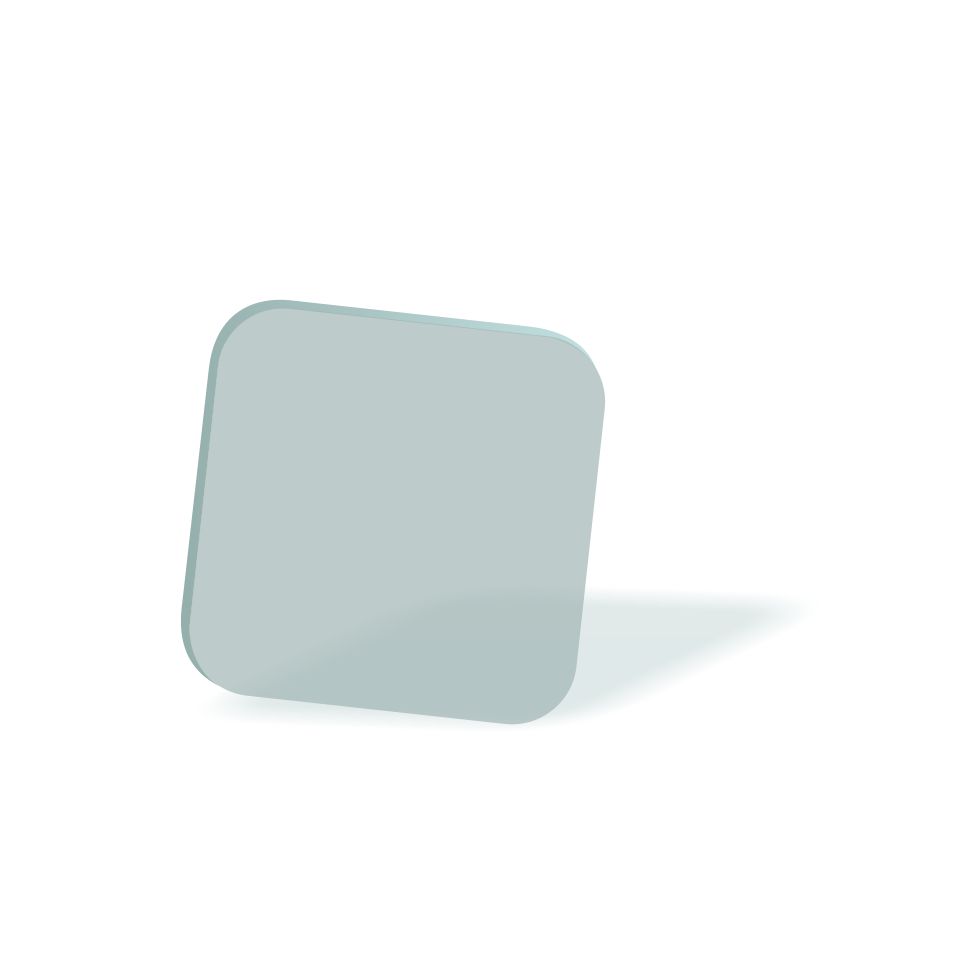

Filter: T1K13
Filter colour: Grey green
Filter curvature: Flat filter
Filter material: Mineral glass
Filter technology: Absorption filter
Filter thickness: ca. 7mm
Frame: R14
Frame type: Goggle with strap
Protection Class / Norm: EN 207 full protection
Protection range: Infrared, near infrared
VLT (approx.): 66%
Visual brightness: Excellent
colour recognition: Excellent

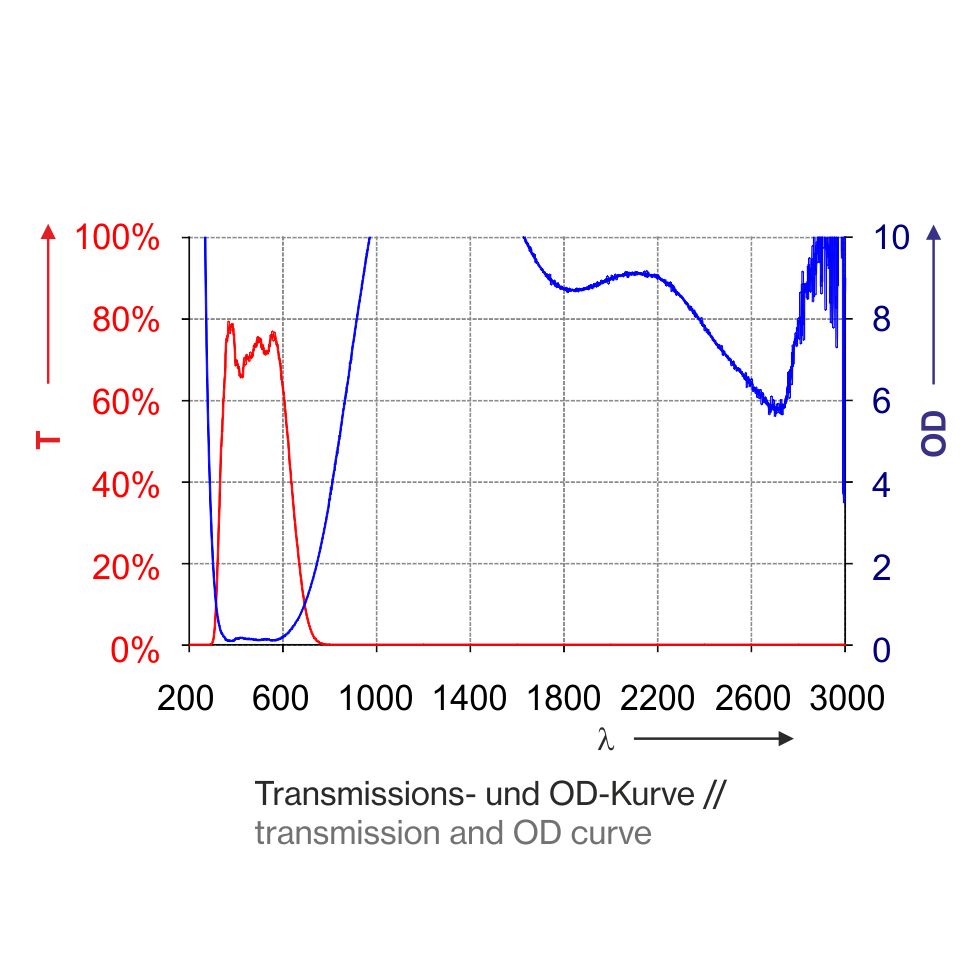

WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
808 - 808 (OD3+) DIR LB3
1064 - 1064 (OD6+) D LB4 + IR LB6
1500 - 1600 (OD3+) DIR LB3

Accessories

Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Cushion frame with vented foam
The ventilated soft foam - cushion frame for the R14 (A14AIRED1000) for high wearing comfort and clear vision. Buy from laservision!
