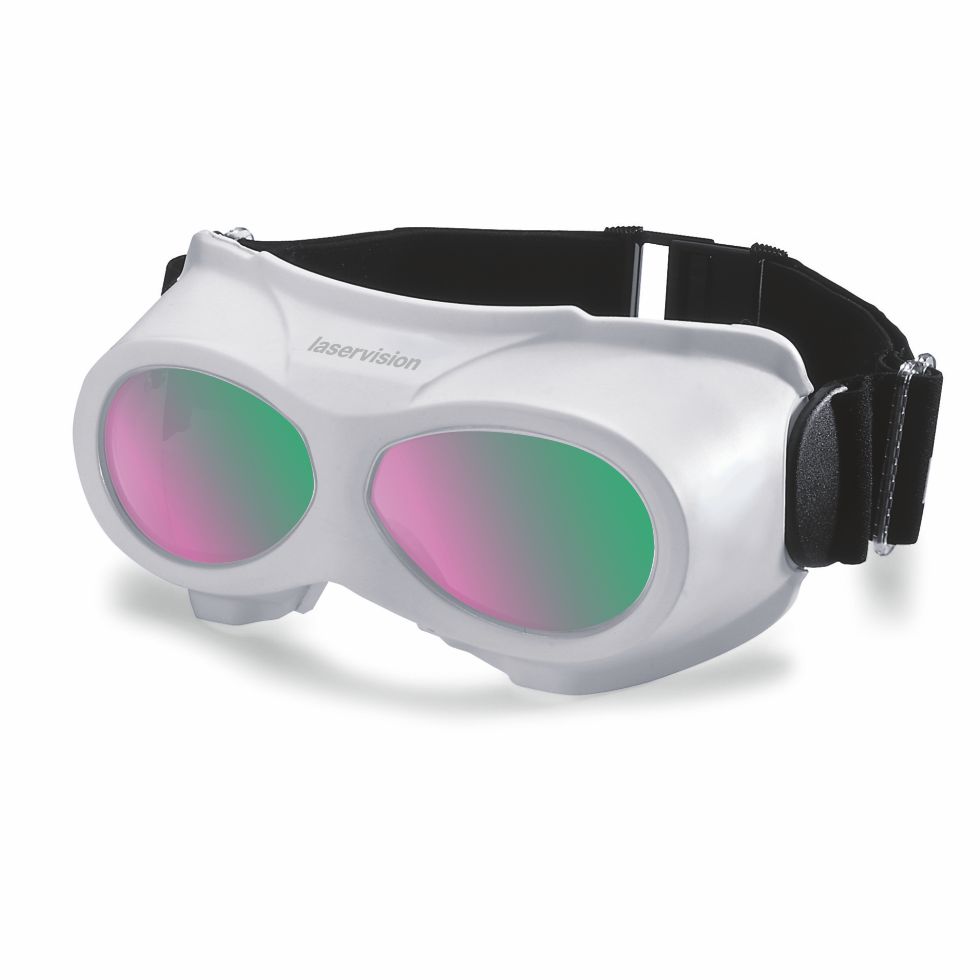

laser safety goggle R14T1H06F

The laservision laser safety goggle R14.T1H06.1002 with foam frame (F) is a goggle with a violet-colored filter and is particularly suitable for KTP, Alexandrite, Diode, Nd:YAG and powerful USP-lasers.The full protection goggle offers M protection levels at 532 nm, 700-800 nm, and 1064 nm and it has a daylight transmission of approx. 25%. The R14.T1H06 laser safety goggles are characterized by particularely good color view and are therefore especially suitable for the medical sector but also for industrial applications and laboratories. The changeable click frame with a foam frame (A14FORUB1000) ensures a very good wearing comfort. The shipment includes a metal box which can also be used as a storage box. The removable frame can optionally be bought in sets of 5.

  • Order number: R14T1H061002
  • GTIN: 4050369056039
  • Pack unit: 1 pieces
  • Weight incl. packaging: 0,57 kg
  • Weight excl. packaging: 0,17 kg
Product number: R14T1H061002
Product information "laser safety goggle R14T1H06F"
Protection range
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Coating: Interference Coating (PVD)
Cushion: Soft foam (F)

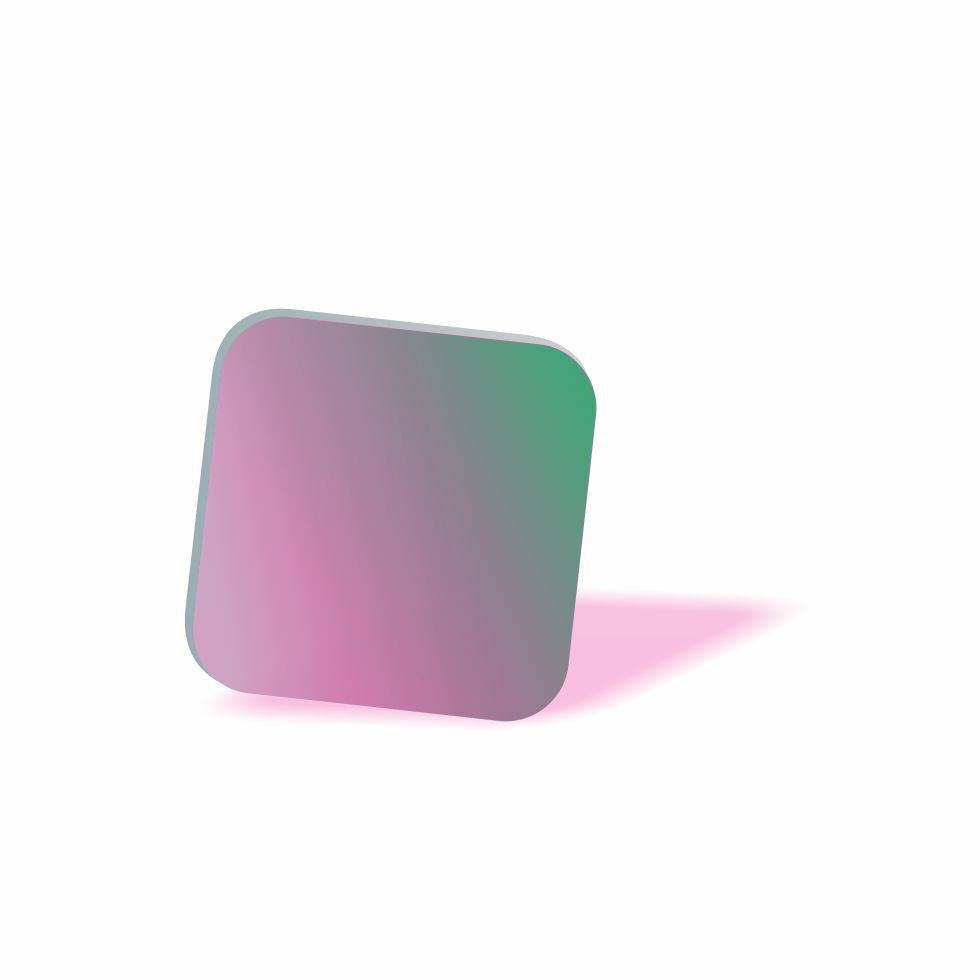

Filter: T1H06
Filter colour: Violet
Filter curvature: Flat filter
Filter material: Coated glass
Filter technology: Reflection filter
Filter thickness: ca. 3-4mm
Frame: R14
Frame type: Goggle with strap
Properties: Head support option, M-protection rating
Protection Class / Norm: EN 207 full protection
Protection range: Coated filter, near infrared, visible
VLT (approx.): 25%

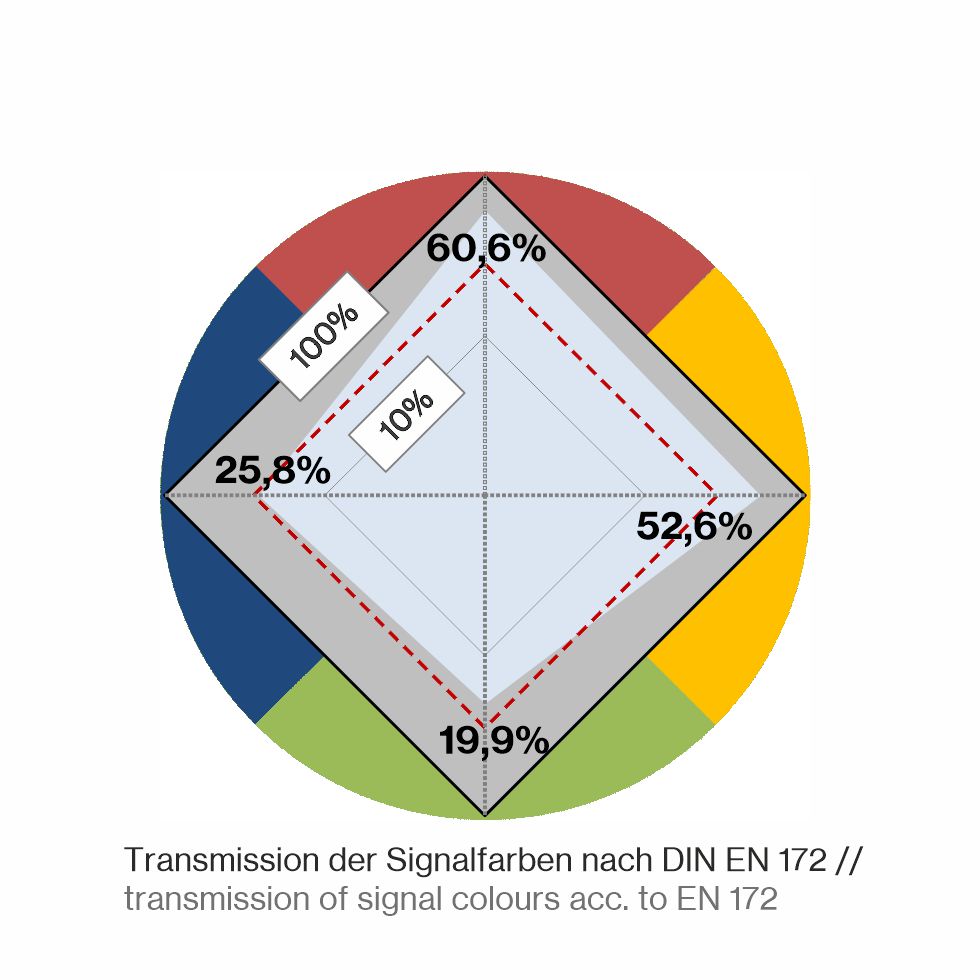

Visual brightness: Good
colour recognition: Particularly good

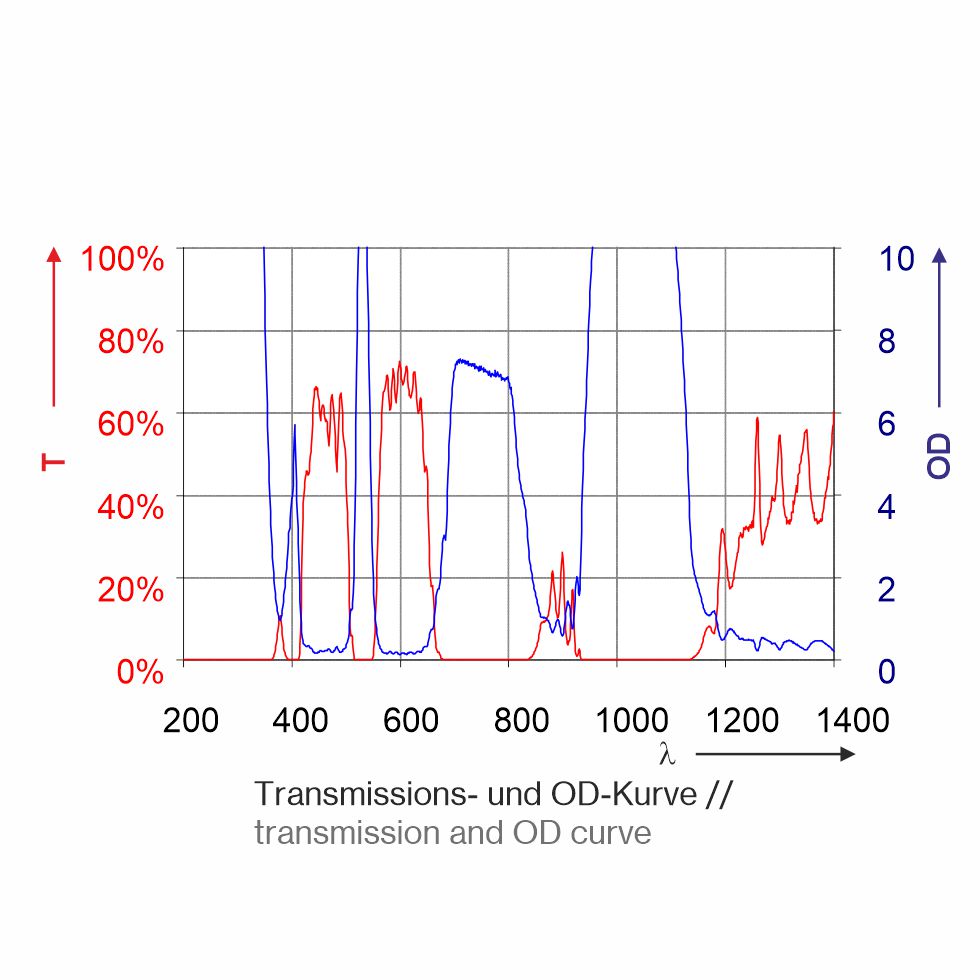

532 - 532 (OD10+) DIR LB8 + M LB10
700 - 800 (OD6+) DIRM LB6
1064 - 1064 (OD10+) DIR LB8 + M LB10


Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!

Other products in this category

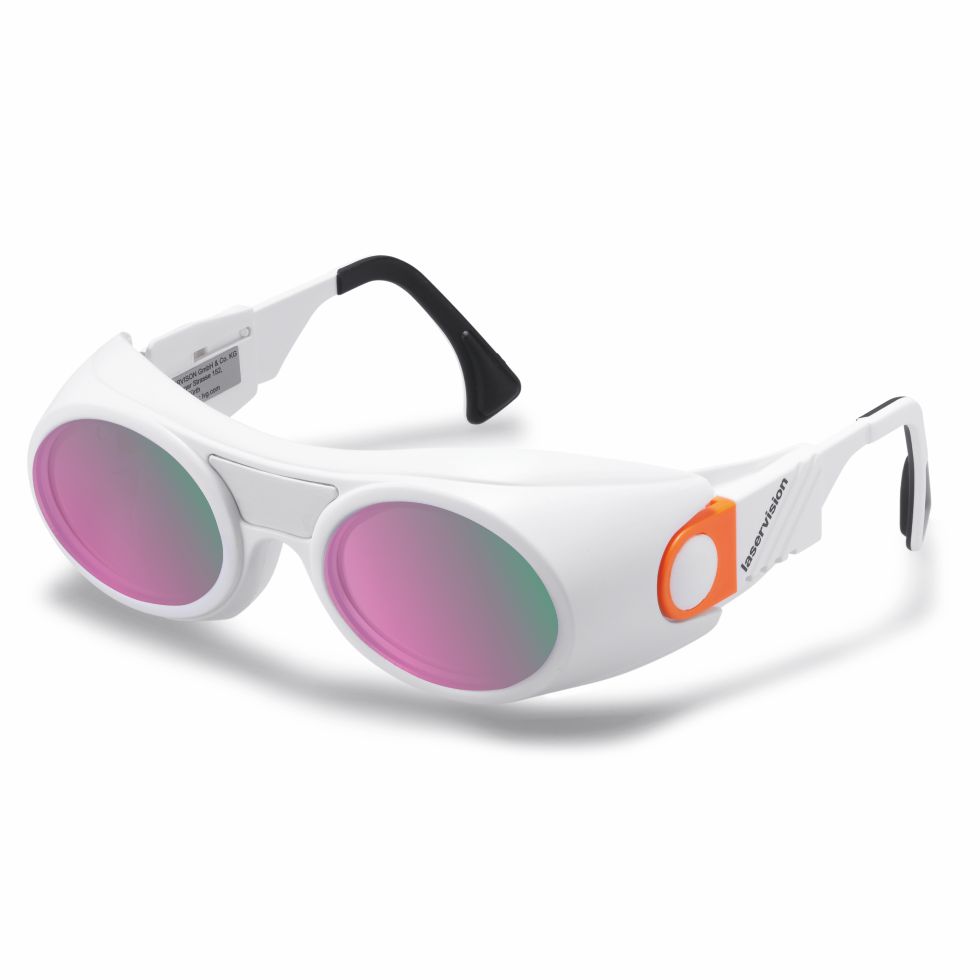

laser safety spectacle R01T1H06
Laser safety goggles R01T1H06 for Alexandrite lasers, diode lasers as well as KTP, Nd:YAG and powerful UKP lasers. More information here
laser safety goggle R14T1H06L
Laser safety goggles R14T1H06 for KTP, Alexandrite, diode, Nd:YAG lasers as well as for powerful ultrashort pulse lasers. More information here

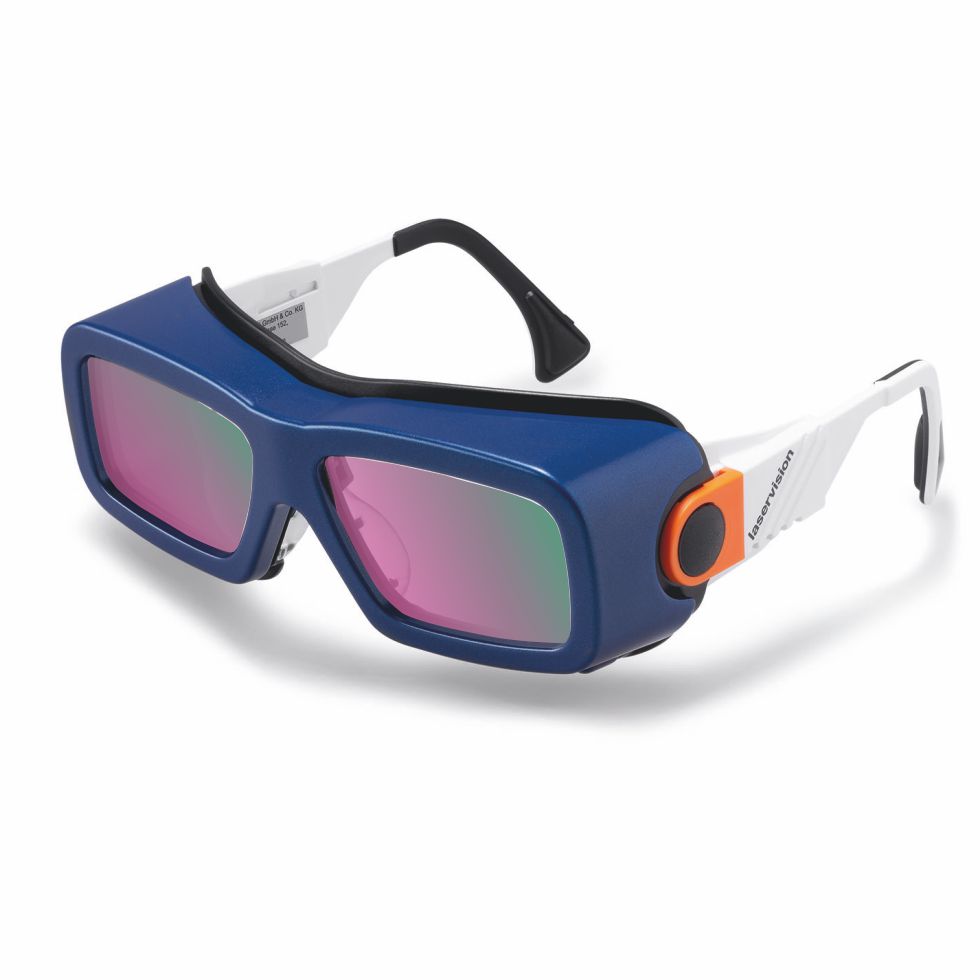

laser safety spectacle R17T1H06
