laser safety goggle R14T1K01L
The laservision laser safety goggle R14.T1K01.1003 with a lip seal frame (L), provides high protection ratings within the VIS, NIR and IR UV and VIS spectral area (647-1,550nm; 9,000-11,000nm). The OTG goggle with green-blue filters can be worn over average large correction glasses. The exchangeable clip frame with lip seal lends this OTG goggles a unique and good wearing comfort. The laser safety goggle comes with a metal box, which can also be used as a storage box.
- Order number: R14T1K011003
- GTIN: 4050369019560
- Pack unit: 1 pieces
- Weight incl. packaging: 0,65 kg
- Weight excl. packaging: 0,21 kg
Product number:
R14T1K011003
Product information "laser safety goggle R14T1K01L"
Protection range
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | Lip seal (L) |

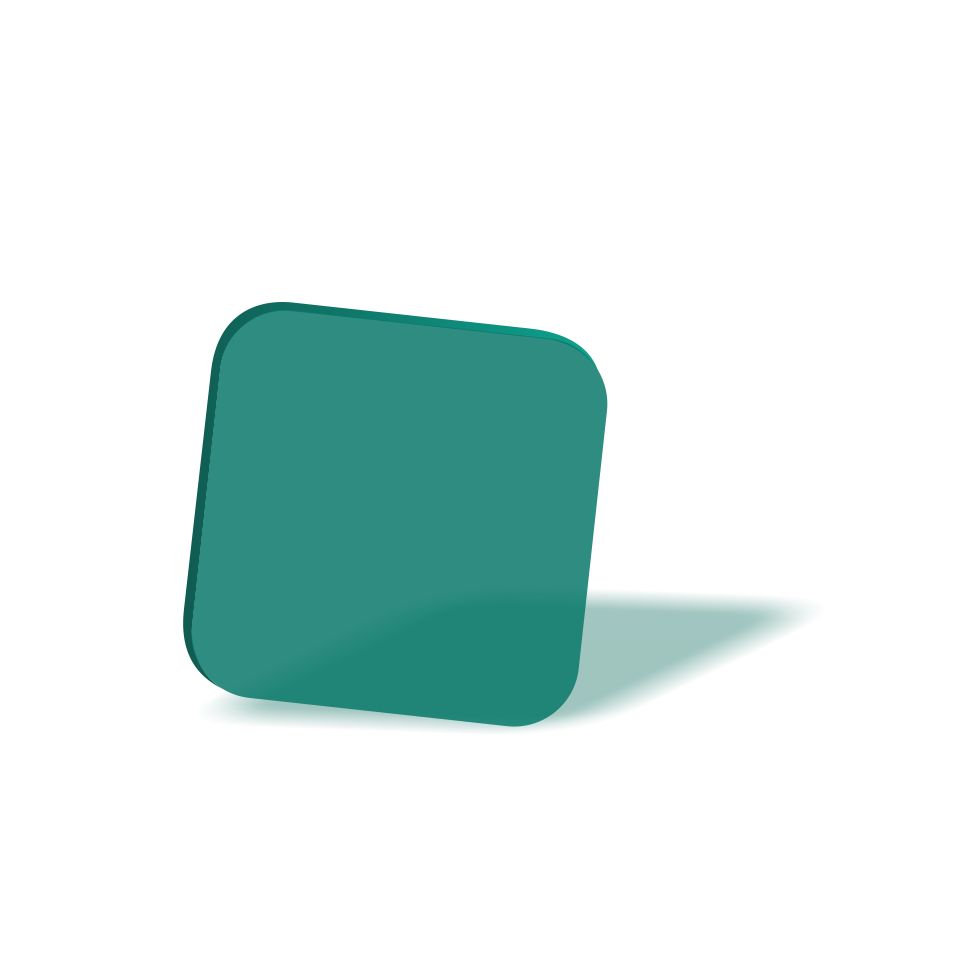

| Filter: | T1K01 |
| Filter colour: | Green blue |
| Filter curvature: | Flat filter |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 5-6mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Properties: | Neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, near infrared, visible |
| VLT (approx.): | 45% |
| Visual brightness: | Good |
| colour recognition: | Sufficient |

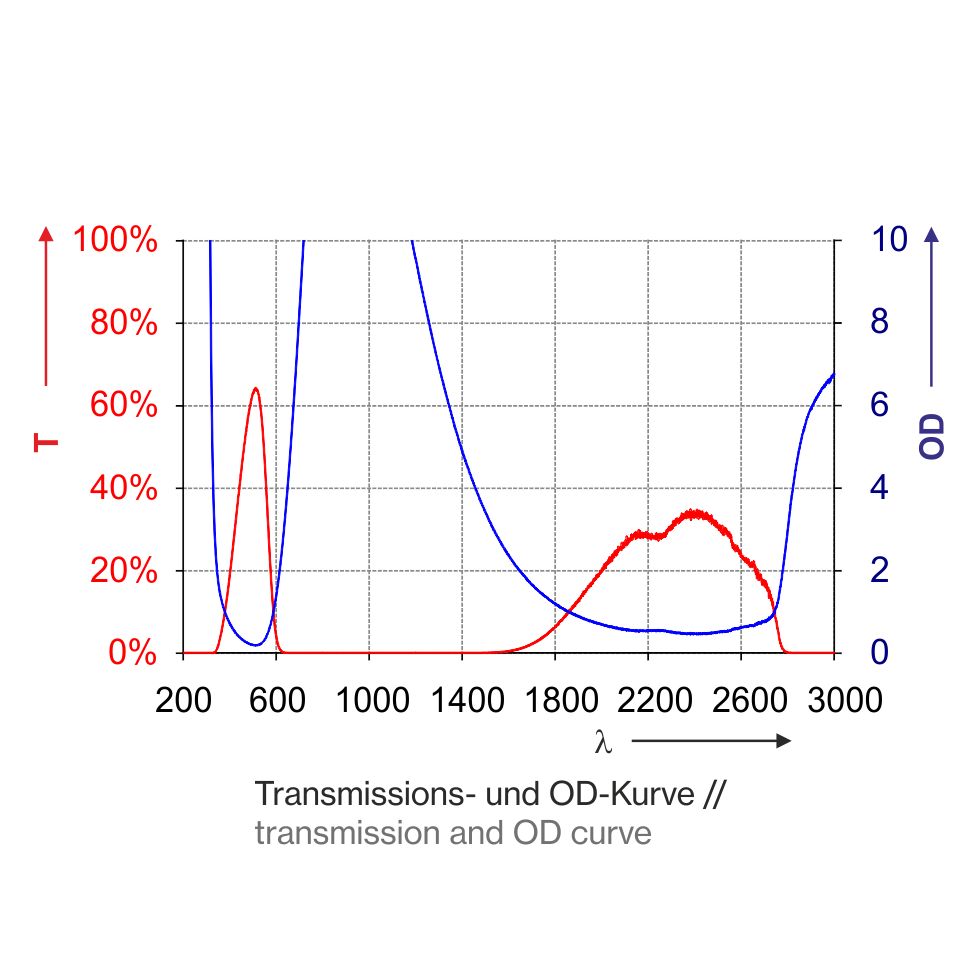

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 620 - <640 | (OD1+) | DIRM LB1 |
| 640 - <647 | (OD2+) | DIRM LB2 |
| 647 - <670 | (OD3+) | DIRM LB3 |
| 670 - <685 | (OD4+) | DIRM LB4 |
| 685 - <690 | (OD5+) | DIRM LB5 |
| 690 - <710 | (OD6+) | DIRM LB6 |
| 710 - <720 | (OD7+) | DIRM LB7 |
| 720 - <750 | (OD8+) | D LB7 + IRM LB8 |
| 750 - <770 | (OD9+) | D LB7 + IRM LB9 |
| 770 - 1130 | (OD10+) | D LB7 + IR LB9 + M LB10 |
| >1130 - 1200 | (OD9+) | D LB7 + IRM LB9 |
| >1200 - 1230 | (OD8+) | D LB7 + IRM LB8 |
| >1230 - 1260 | (OD7+) | DIRM LB7 |
| >1260 - 1320 | (OD6+) | DIRM LB6 |
| >1320 - 1370 | (OD5+) | DIRM LB5 |
| >1370 - 1400 | (OD4+) | DIRM LB4 |
| >1400 - 1410 | (OD4+) | DI LB4 + R LB3Y + M LB3 |
| >1410 - 1520 | (OD3+) | DIM LB3 + R LB3Y |
| >1520 - 1580 | (OD2+) | DIRM LB2 |
| >1580 - 1710 | (OD1+) | DIRM LB1 |
| 4200 - 25000 | (OD5+) | D LB5 + I LB5Y + R LB3Y |
Accessories
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Cushion frame with vented foam
The ventilated soft foam - cushion frame for the R14 (A14AIRED1000) for high wearing comfort and clear vision. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!
Other products in this category

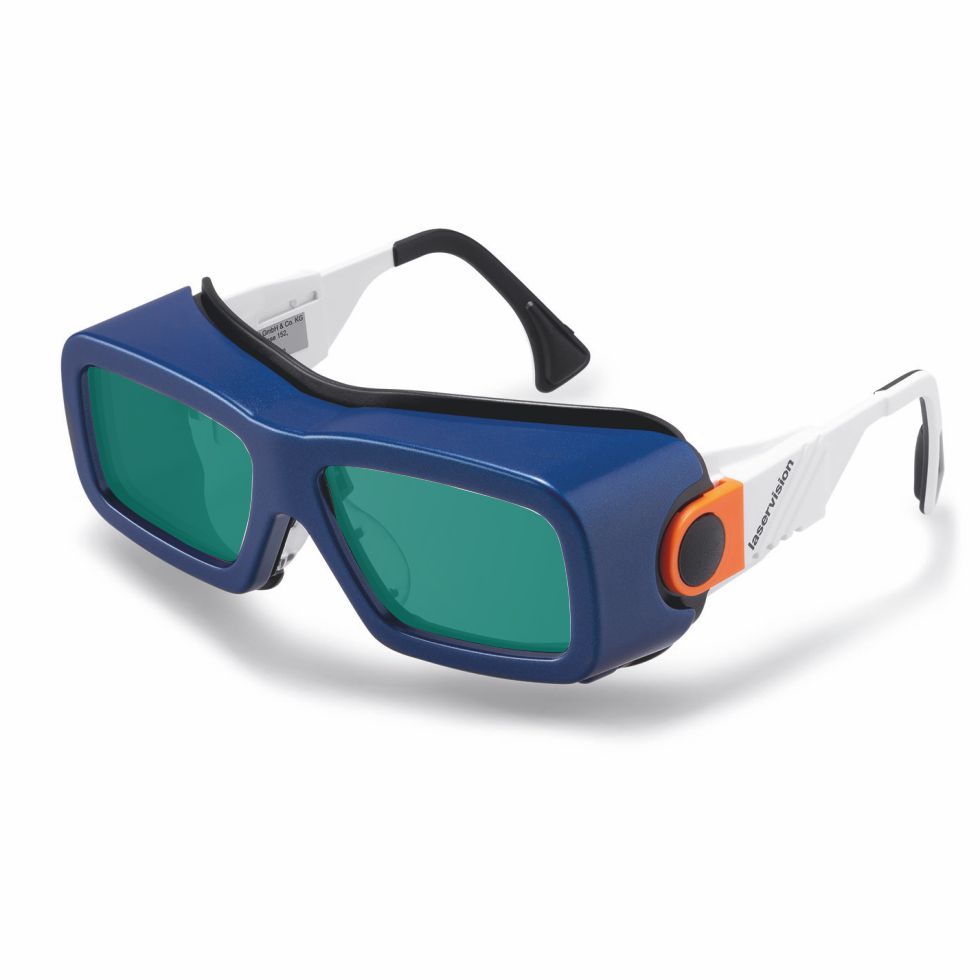

laser safety spectacle R17T1K01
The laservision laser safety goggles for pump diodes, Nd:YAG, fiber and disk lasers. More information here
laser safety goggle R14T1K01A
The laservision laser safety goggle R14.T1K01.1004 with an aired foam frame provides high protection ratings within the VIS, NIR and IR UV and VIS spectral area (647-1,550nm; 9,000-11,000nm). More information here

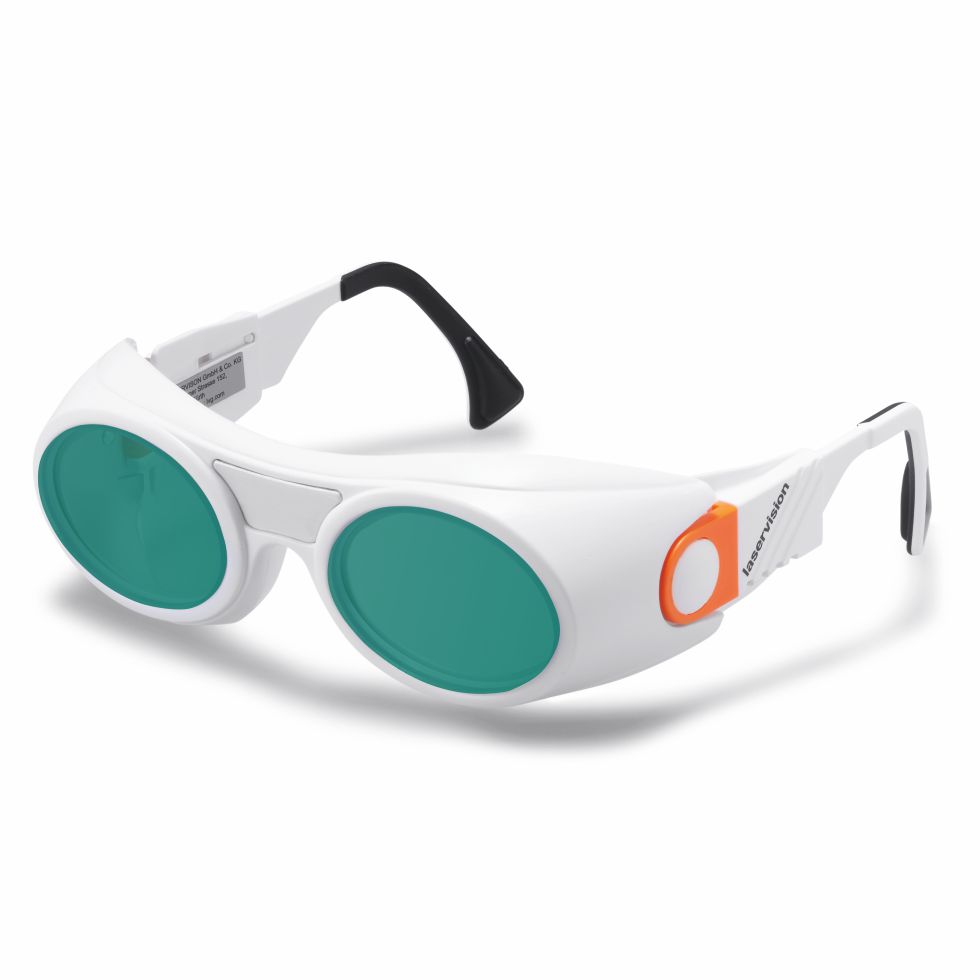

laser safety spectacle R01T1K01
